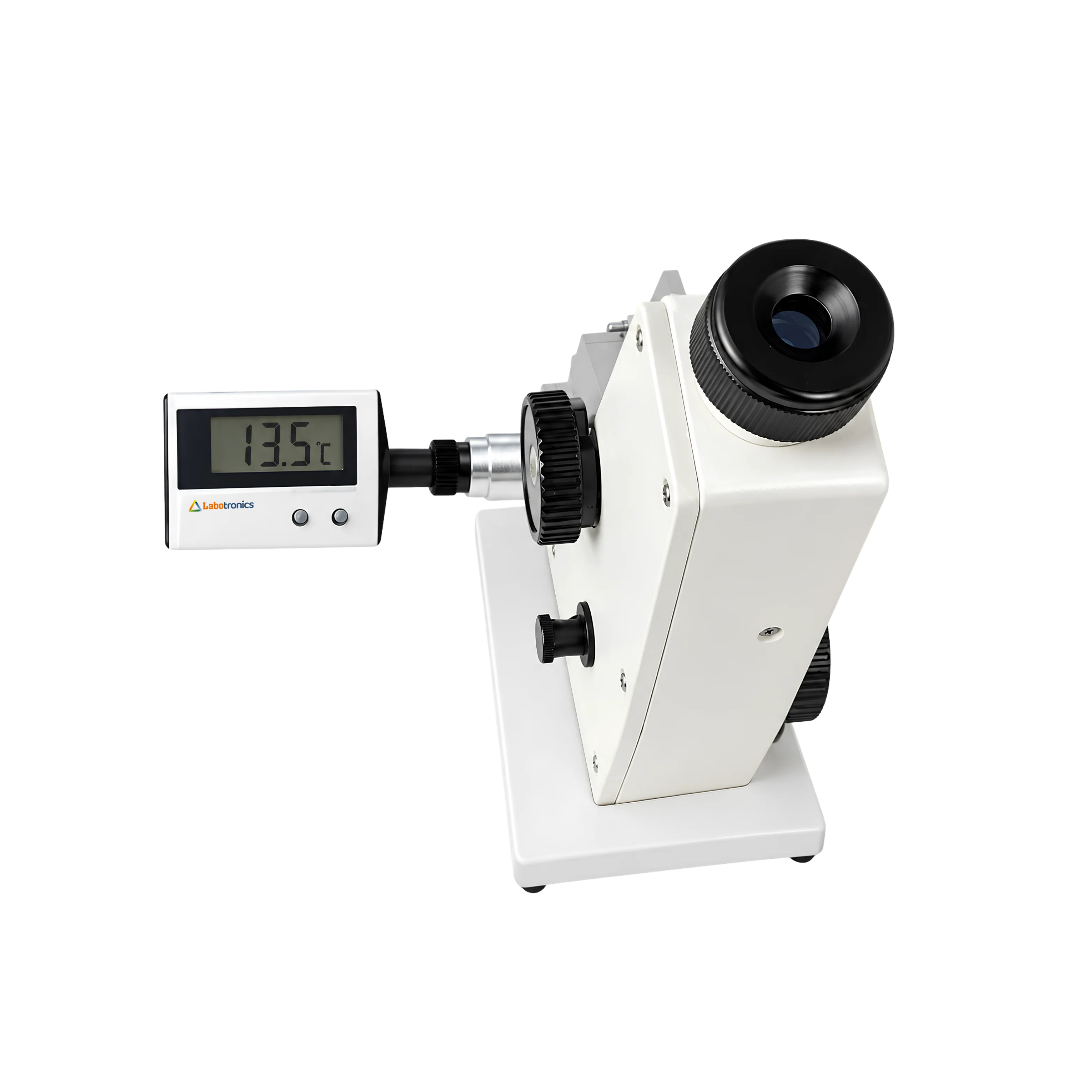

Abbe refractometer LB-11ABBE is a microprocessor controlled benchtop unit. The modulated system employs rapid and accurate measurement of refractive index, average dispersion and partial dispersion. The automated temperature correction promotes accurate result delivery.
Buy Now Download CatalogSpecifications
| Measuring range | Refractive index: 1.3000 nD ~ 1.7000 nD Brix: 0 % ~ 95 % |
| Magnification of telescope objective | 2 X |
| Magnification of reading objective | 22 X |
| Dimensions | 240 × 200 × 390 mm |
| Weight | 4.5 kgs |
Features
Applications
Used for measuring the refractive index of cane sugar, pharmaceutical products, beverages, petroleum products, food, chemicals, etc.
What our customers say
Kadar Basha
1 year ago
Add a review
| Measuring range | Refractive index: 1.3000 nD ~ 1.7000 nD Brix: 0 % ~ 95 % |
| Measuring accuracy | |
| Temperature range | |
| Thermostatic control |
| Measuring range | Refractive index: 1.30000 nD ~ 1.70000 nD Brix: 0 % ~ 100 % |
| Measuring accuracy | Refractive index: ± 0.0002 % Brix: ± 0.1 % |
| Temperature range | 0 °C ~ 50 °C |
| Thermostatic control | RT ± 10 °C |
| Measuring range | Refractive index: 1.30000 nD ~ 1.70000 nD Brix: 0 % ~ 100 % |
| Measuring accuracy | Refractive index: ± 0.0002 % Brix: ± 0.1 % |
| Temperature range | 0 °C ~ 50 °C |
| Thermostatic control | RT ± 10 °C |
| Measuring range | Refractive index: 1.30000 nD ~ 1.70000 nD Brix: 0 % ~ 100 % |
| Measuring accuracy | Refractive index: ± 0.0002 % Brix: ± 0.1 % |
| Temperature range | 0 °C ~ 50 °C |
| Thermostatic control |
We provide an Oechsle & Brix refractometer, a specialized optical instrument used predominantly in winemaking and viticulture to measure the sugar content, often expressed in degrees Oechsle or Brix, in grape juice or must. This device operates by assessing the refractive index of the juice or must, which correlates directly with the sugar concentration, a key factor in determining grape ripeness and potential alcohol content in wine production. Equipped with precise optics and a clear scale, Oechsle Brix refractometers provide quick and accurate readings, allowing winemakers to make informed decisions about the optimal time to harvest grapes for achieving the desired wine characteristics and ensuring the production of high-quality wines with the appropriate sugar levels and flavor profiles.
| Measurement range | 0 - 140 °Oe 0 – 32 % Brix |
| Minimum division | 1°Oe 0.2 % Brix |
| Accuracy | ± 1°Oe ± 0.2 % Brix |
| Length | 200 mm |
| Measurement range | 0 - 140 °Oe 0 - 25 KMW 0 – 32 % Brix |
| Minimum division | 1°Oe 0.2KMW 0.2 % Brix |
| Accuracy | ± 1°Oe ± 0.2KMW ± 0.2 % Brix |
| Length | 200 mm |
| Measurement range | 30 - 140 °Oe 0 – 32 % Brix |
| Minimum division | 1°Oe 0.2 % Brix |
| Accuracy | ± 1°Oe ± 0.2 % Brix |
| Length | 200 mm |
| Measurement range | 0 - 190 °Oe 0 - 38 KMW 0 – 44 % Brix |
| Minimum division | 2°Oe 0.2KMW 0.5 % Brix |
| Accuracy | ± 2°Oe ± 0.2 KMW ± 0.5 % Brix |
| Length | 200 mm |
Labotronics beer brewing refractometer is a specialized optical instrument designed for the brewing industry, allowing brewers to measure the sugar content, often expressed as Brix, in wort during the brewing process. It operates by measuring the refractive index of the wort due to its sugar concentration, which provides insights into the potential alcohol content and fermentation progress. By offering real-time Brix readings, brewers can monitor the sugar conversion and make precise adjustments to ensure the desired alcohol level and flavor in the final beer. These refractometers are indispensable tools for homebrewers and professional brewers, helping them optimize the brewing process, enhance quality control, and produce beer with consistent and desired characteristics.
| Measurement range | Brix:0 % - 32 % Wort SG:1.000-1.120 |
| Minimum division | Brix: 0.1 % Wort SG: 0.001sg |
| Accuracy | Brix: 0.1 % Wort SG: 0.001sg |
| Dimension | 30 × 40 × 170 mm |
Our fluid refractometer is a versatile optical instrument used for measuring the refractive index of various liquid samples. It operates by analyzing the way light is bent as it passes through a liquid, providing insights into the sample's composition, concentration, and purity. These refractometers come equipped with precision optics and a user-friendly interface, offering quick and accurate readings across a wide range of applications, including chemistry, food and beverage quality control, pharmaceuticals, and industrial processes. Fluid refractometers are essential tools for researchers, quality control professionals, and product developers, helping them ensure product quality, consistency, and compliance with industry standards while streamlining analysis and quality assurance processes.
| Measurement Range | 0 to 100% Density, -60°C to 0 °C, 1.100 to 1.400 sg |
| Minimum division | 0.05, 5 °C, 0.01sg |
| Accuracy | ± 5 %, ± 5 °C, ± 0.01 sg |
| Length | 200 mm |
| Measurement Range | Ethylene Glycol: -60°C to 0°C (0 to 66.6 %) Propylene Glycol: -50°C to 0°C (0 to 62.4 %) Battery Fluids: 1.100 to 1.400 sg |
| Minimum Division | Ethylene Glycol: 5°C Propylene Glycol: 5°C Battery Fluids: 0.01 sg |
| Accuracy | Ethylene Glycol: ± 5°C Propylene Glycol: ± 5°C Battery Fluids: ± 0.01 sg |
| Dimension (Length) | 200 mm |
| Measurement Range | -60 °F to 32 °F/-50°C to 0 °C, -60°F to 32 °F /-50°C to 0 °C, 1.10-1.40 sg |
| Minimum division | 10°F/ 5°C, 10°F/ 5°C, 0.01sg |
| Accuracy | ± 10 °F/± 5 °C, ± 10 °F/± 5 °C, ± 0.01 sg |
| Length | 200 mm |
| Measurement Range | Ethylene Glycol: -50°C to 0°C Propylene Glycol: -50°C to 0°C Battery Fluids: 1.100 to 1.400 sg |
| Minimum Division | Ethylene Glycol: 1°C Propylene Glycol: 1°C Battery Fluids: 0.01 sg |
| Accuracy | Ethylene Glycol: ± 1°C Propylene Glycol: ± 1°C Battery Fluids: ± 0.01 sg |
| Dimension (Length) | 200 mm |
We provide benchtop refractometer, a versatile laboratory instrument used for measuring the refractive index of liquids, offering precise insights into their composition, concentration, and purity. It typically features a compact design suitable for laboratory countertops and workbenches, equipped with a sample well, light source, and a user-friendly interface. Our benchtop refractometers are essential tools for researchers and professionals, facilitating rapid and non-destructive analysis of liquid samples to ensure product quality and compliance with industry standards.
| Measuring range | 1.30000 Nd ~ 1.70000 Nd |
| Stability of temperature control | ± 0.01 ℃ |
| Temperature control | Built-in semiconductor |
| Temperature control range | 5 ℃ ~ 90 ℃ |
| Measuring range | 1.3000 Nd ~ 1.7000 Nd |
| Stability of temperature control | RT |
| Temperature control | |
| Temperature control range | RT |
| Measuring range | 1.30000 Nd ~ 1.70000 Nd |
| Stability of temperature control | ± 0.02 ℃ |
| Temperature control | Built-in semiconductor |
| Temperature control range | 5 ℃ ~ 65 ℃ |
| Measuring range | 1.3000 Nd ~ 1.7000 Nd |
| Stability of temperature control | ± 0.03 ℃ |
| Temperature control | Built-in semiconductor |
| Temperature control range | 5 ℃ ~ 65 ℃ |
Our alcohol & grape refractometer is a specialized optical instrument used in winemaking and viticulture to measure the sugar content, often expressed as Brix, in grape juice or grape must, which is a crucial parameter in determining grape ripeness and potential alcohol content in wine. It operates by measuring the refractive index of the grape juice due to its sugar content. By providing accurate Brix readings, winemakers can make informed decisions about when to harvest grapes for optimal wine quality. These refractometers are essential tools for vineyard management, grape growers, and winemakers to ensure the grapes are harvested at the right time for producing high-quality wines with the desired alcohol levels and flavors.
| Measurement range | 0 % ~ 25 % Vol 0~20 Beº |
| Minimum division | 0.2 % Vol 0.2 % Brix |
| Accuracy | ± 0.2 % Vol ± 0.2 % Brix |
| Length | 32 x 40 x 160 mm |
| Measurement range | 0 % ~ 25 % Vol |
| Minimum division | 0.2 % Vol |
| Accuracy | ± 0.20% |
| Length | 30 x 40 x 160 mm |
| Measurement range | 0 % ~25 % Vol 0~40 % Brix |
| Minimum division | 0.2 % Vol 0.2 % Brix |
| Accuracy | ± 0.2 % Vol ± 0.2 % Brix |
| Length | 31 x 40 x 160 mm |
| Measurement range | 0 % ～60 % 60～80 % W/W |
| Minimum division | 1% |
| Accuracy | 1% 2.5% |
| Length | 33 x 40 x 160 mm |
