Double Jacketed Glass Reactor

Our double jacketed glass reactor is a versatile and sophisticated laboratory apparatus used for chemical and pharmaceutical processes. It consists of two layers of glass with an inner and outer jacket, allowing for precise temperature control during chemical reactions. The space between the two glass layers can be filled with a temperature-regulating fluid, enabling researchers to heat or cool the reaction mixture while observing it through the transparent glass walls. This design provides excellent thermal insulation and protection, making it ideal for reactions involving sensitive compounds.

Double Glass Jacketed Reactor LB-21DGR

Reaction flask capacity	1
Stirring power	60 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-22DGR

Reaction flask capacity	2
Stirring power	60 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-23DGR

Reaction flask capacity	3
Stirring power	60 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-24DGR

Reaction flask capacity	5 L
Stirring power	90 W
Stirring speed	50 to 600 rpm
Stirring shaft diameter	12 mm
Temperature Range	-120 to 300℃

Compare

Double Glass Jacketed Reactor LB-25DGR

Reaction flask capacity	10
Stirring power	120 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-26DGR

Reaction flask capacity	20
Stirring power	120 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-27DGR

Reaction flask capacity	30
Stirring power	120 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

Double Glass Jacketed Reactor LB-28DGR

Reaction flask capacity	50
Stirring power	120 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	12 mm
Voltage	220 V; 50 Hz/60 Hz

Compare

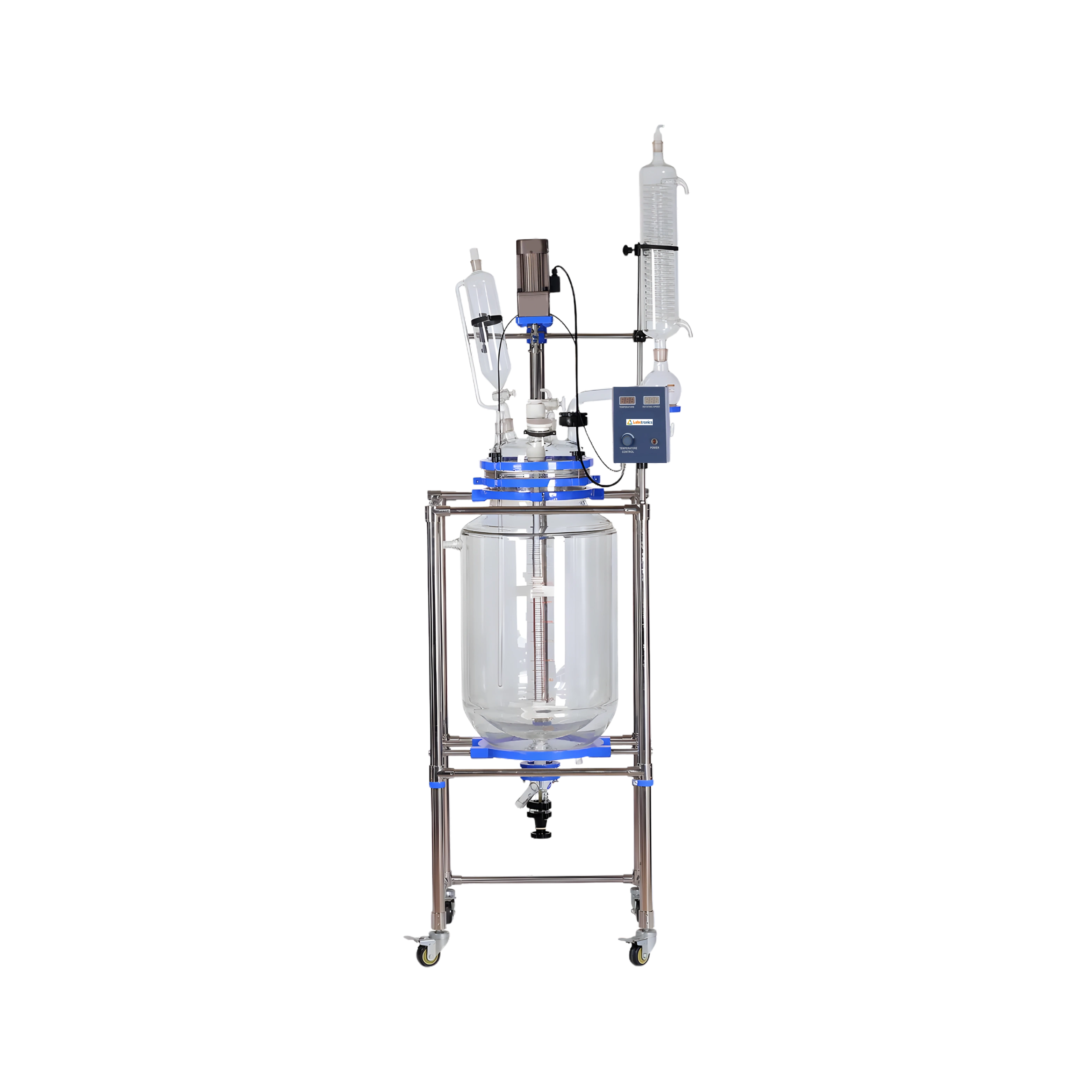

Double Glass Jacketed Reactor LB-29DGR

Reaction flask capacity	100
Stirring power	180 W
Stirring speed	0 ~ 600 rpm
Stirring shaft diameter	15 mm
Voltage	220 V; 50 Hz/60 Hz

Compare
