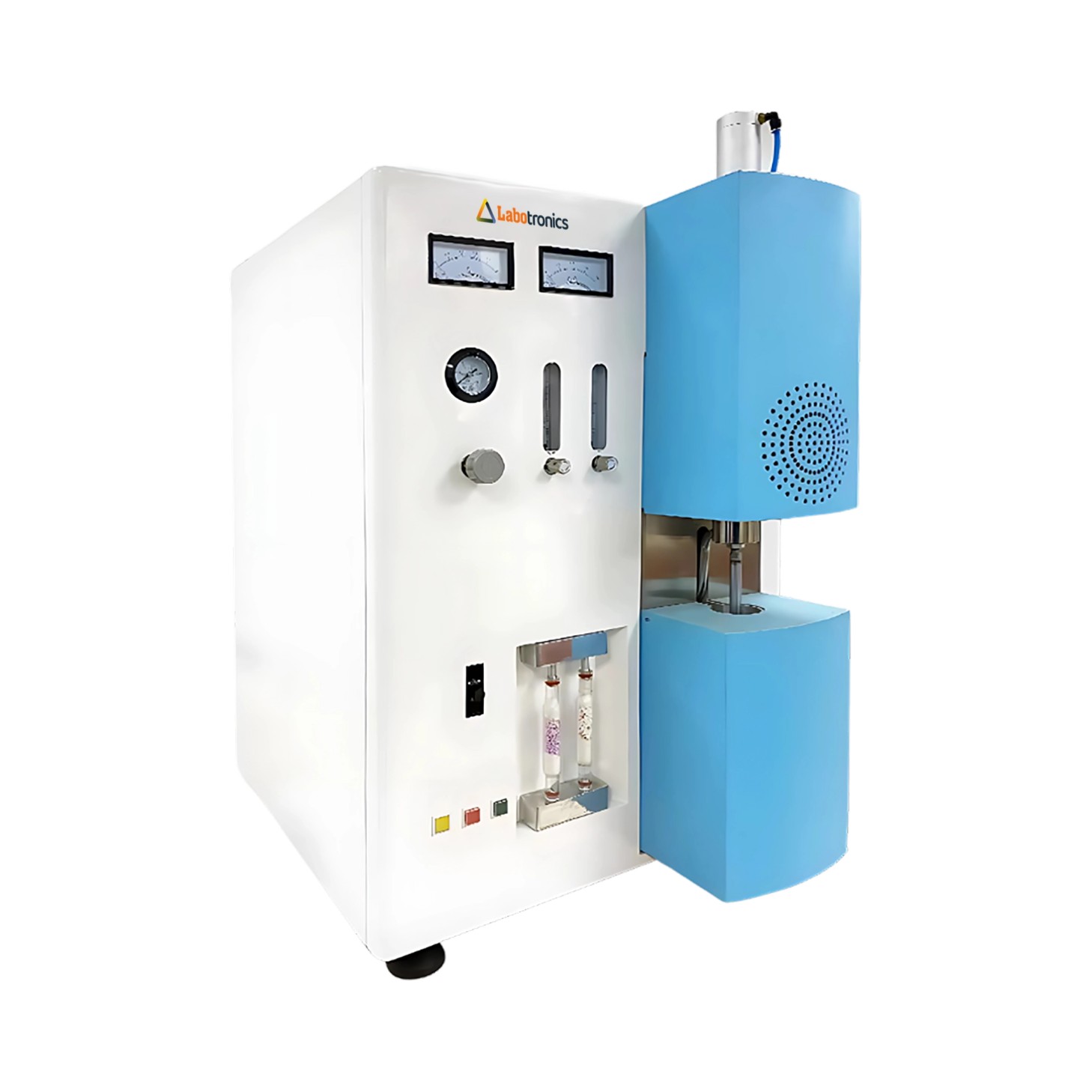

Carbon And Sulfur Analyzer LB-11CSA

Name: Carbon And Sulfur Analyzer LB-11CSA
Brand: Labotronics
SKU: LB-11CSA
Rating: 4.5 (550 reviews)

Carbon and Sulfur Analyzer LB-11CSA offers an extensive measurement range, detecting carbon from 0.0005 to 6% and sulfur from 0.0005 to 0.5000%. It utilizes a high-frequency induction furnace, ensuring complete sample decomposition. It features an automated combustion head self-cleaning system, minimizing dust interference. Additionally, it incorporates a highly sensitive gilded carbon & sulfur analysis cell, delivering precise and reliable readings.

$ 14000

Download Catalog

Specifications

Carbon Measuring Range	0.0005% to 6.0000 % (w(C)) (extendable to 99.999%)
Sulfur Measuring Range	0.0005% to 0.5000% (w(S)) (extendable to 99.999%)
Temperature Range	10 to 30°C
Humidity Range	Less than 75%
Sample Weight	Standard 0.5g
Sensitivity	0.1 ppm
Electronic Scale Precision of Reading	0.0001g
Analysis Pool	Carbon: One pool Sulfur: One pool
Analysis Time	35 seconds (adjustable, 25 to 60 seconds)
Analysis Precision	Carbon: RSD <1% Sulfur: RSD <1%
Analysis Error	Carbon: By the ISO 9556 standard Sulfur: By the ISO 4935 standard
High-Frequency Furnace	Power: 2.5 kVA HF pliotron; Frequency: 20 MHz
Light Source	Platinum infrared light source
De-dusting Unit	Self-cleaning, 0.4 μm submicron metal filter
Power Supply	220V 50Hz
Furnace Dimension	640 × 500 × 785 mm
Analyzer Dimension	530 × 370 × 200 mm
Packaging Dimension (L × W × H)	1380 × 760 × 980 mm
Gross Weight	193 kg

Features

Dual standard correction
Infrared detection system
High sensitivity sensor
Advanced data processing
Automatic leakage detection
Intelligent self-diagnosis

Standard Accessories

High Frequency Automatic Inductive Combustion Furnace × 1

Electronic Balance × 1

Computer × 1

Printer × 1

Relieve Valve × 1pcs

Tungsten Fluxing Medium (Low blank of C & S) × 1 bottle/kg

Pure Iron Fluxing Medium (Low blank of C & S) × 2 bottles

Quartz Combustion Tube × 2pcs

De-dusting Tube × 2pcs

Copper Crucible Holder × 1pcs

Quartz Crucible Holder × 2pcs

Ceramic Crucible (1000 pcs/carton) × 1carton

Stainless Steel Round Brush × 3pcs

Steel Wire Brush × 1pcs

Forceps × 1pcs

Sampling Spoon (Big, Middle, Small) × 1 set

Fluxing Medium Spoon × 1pcs

Tool Set × 1 set

4 × 6mm PVC Pipe × 10 meter

Red Silicon Ring × 2pcs

11 × 2.5 mm O-Ring × 4pcs

37 × 3.1 mm O-Ring × 4pcs

Vacuum Silicone Grease × 1 bottle

10A Fuse × 4pcs

32A Fuse × 4pcs

10A Multi Socket × 1pcs

125g Desiccant × 1 bottle

125g CO₂ Absorbent × 1 bottle

USB Line × 1pcs

Applications

Carbon and Sulfur Analyzer LB-11CSA is used to determine carbon and sulfur content in metals, alloys, ores, and other materials for quality control and research. It is widely applied in steel plants, foundries, mining industries, cement factories, and coal processing units.

Carbon Measurement	0.00001% to 10.0000%
Sulfur Measurement	0.00001% to 6.0000%
Relative Humidity	< 90%
Room Temperature	10 to 30 °C
Sensitivity	0.1 ppm
