Autoclavable glass fermenter LB-13GFS

info@labotronics.com | www.labotronics.com

Overview

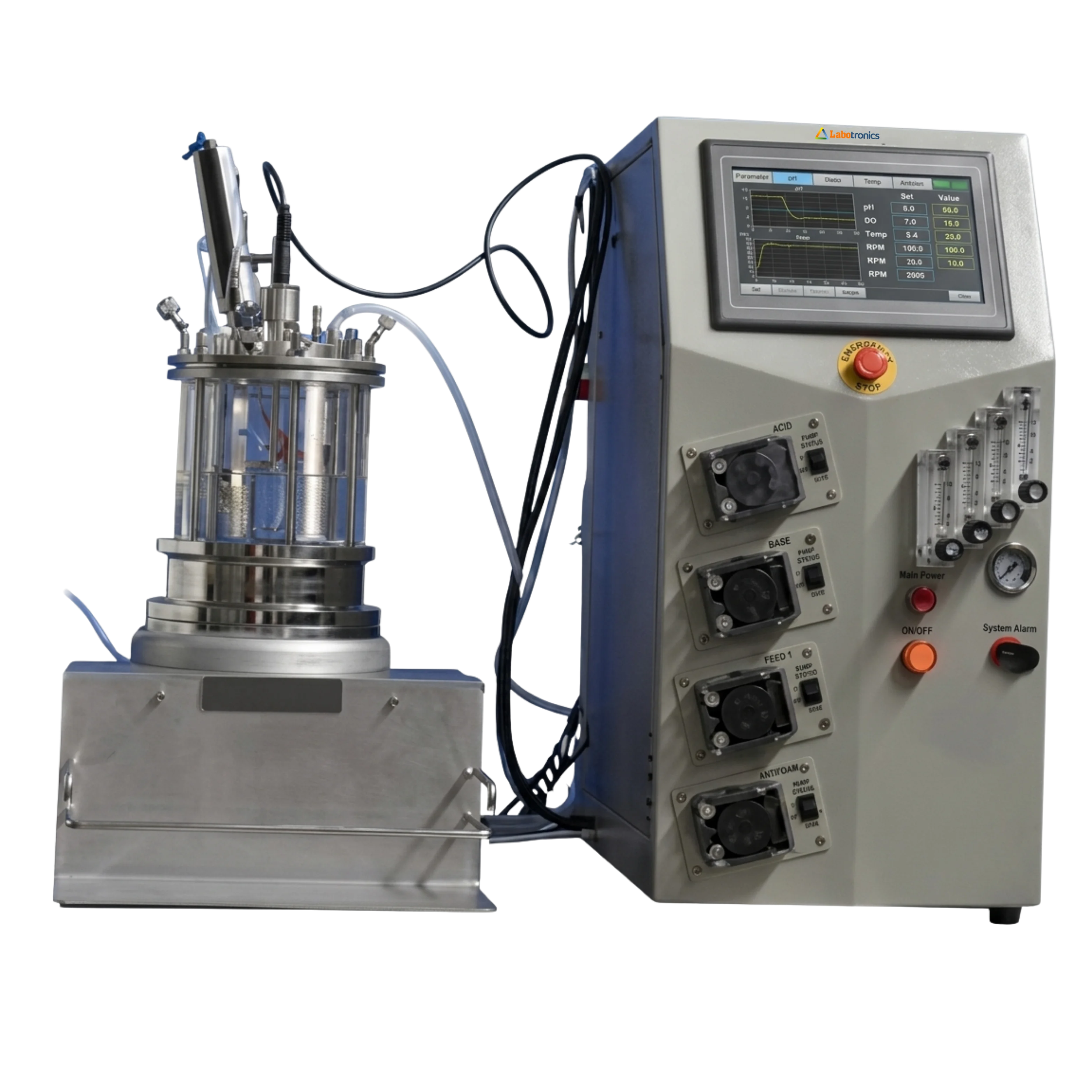

Autoclavable glass fermenter LB-13GFS is a magnetically driven stirred-tank bench top fermenting unit. Culture tank design aids interchangeability, reducing downtime during off-site sterilisation. Touchscreen panel allows one-spot adjustments for varied fermentation phases. Data transmission and review via USB interface ensures effective record management.

Specifications :

Total volume	3 L
Working volume	1.5 L ~ 2 L
Tank	150 mm × 210 mm
Max. sterilization size	180 mm × 420 mm
Tank weight	9.5 kgs
Culture tank aspect ratio	2:1
Stirring speed	70 rpm ~ 1000 rpm ± 1 %
Thermo-control range	5 °C ~ 65 °C ± 0.1 °C
pH control range	2.0 pH ~ 12.0 pH ± 0.05 pH
Dissolved oxygen control range	0 % ~ 150 % ± 3 %
Dissolved oxygen control precision	0.001
Feeder control	Multi-channel peristaltic pump
Data transmission	USB interface
Power	220 V ; 0.8 kW
Dimensions	800 × 500 × 600 mm
Weight	40 kgs

Features :

Culture tank : Borosilicate glass with stainless steel lid
Bottom-impeller driven magnetic agitation
LCD touch panel control with memory storage
Height adjustable Anti-Foamer
Peristaltic pump infused Anti-Foamer
Manual setting for air flow and tank pressure

Applications :

Used in pharmaceutical laboratories, cell research laboratories for different stages of cultivation of microbial fermentation suitable for culture of microbial cells, yeast, etc. in a laboratory setup.
