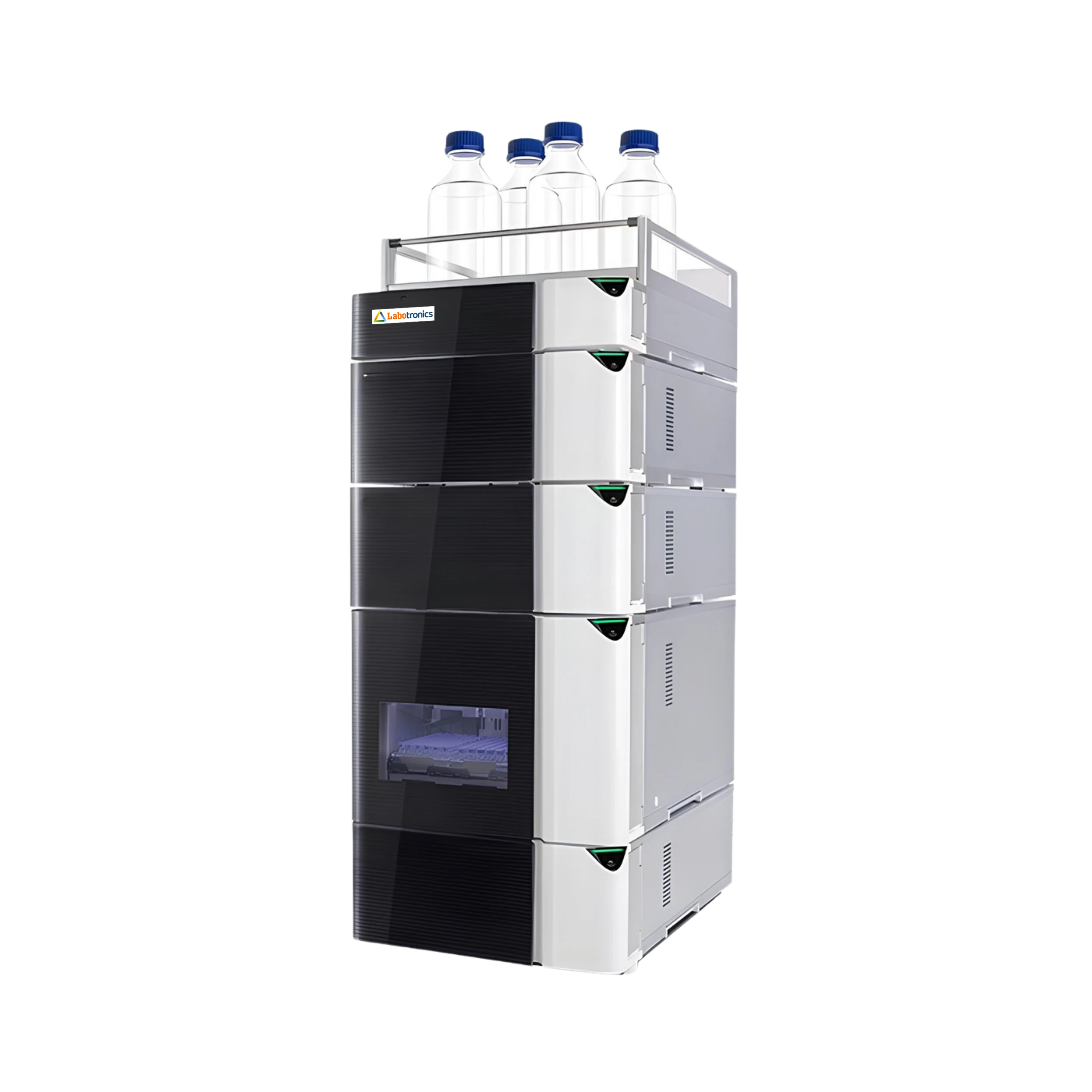

High Performance Liquid Chromatography LB-33HPLC Catalog

High Performance Liquid Chromatography LB-33HPLC features a quaternary low-pressure constant flow pump with a 0.001 to 10.0 mL/min flow rate for accurate mobile phase delivery. It delivers a maximum operating pressure of 70 MPa (10,150 psi) to support high-performance chromatographic separations. The UV-Vis detector provides a 200 to 800 nm wavelength range with deuterium and tungsten lamps for sensitive detection. It also supports precise solvent composition control and 8-channel digital signal output for efficient data acquisition.

Pump Type	Quaternary Low-Pressure Constant Flow Pump
Flow Rate Range	0.001 to 10.0 mL/min (0.001 mL/min increments)
Flow Accuracy	≤ ±0.3%
Flow Precision	≤ 0.06% RSD
Maximum Pressure	70 MPa (10,150 psi)
Pressure Accuracy	≤ ±1.0% FS
Pressure Pulsation	≤ 0.1 MPa
Composition Range	0.0% to 100.0% (0.1% minimum step)
Composition Precision	±0.5%
Wavelength Range	200 to 800 nm
Wavelength Accuracy	±1 nm
Wavelength Repeatability	≤ 0.1 nm
Spectral Bandwidth	10 nm
Response Time	0.1 s
Baseline Noise	±5 × 10⁻⁶ AU (under specified conditions)
Baseline Drift	1 × 10⁻⁴ AU/h (under specified conditions)
Detector Path Length	5 mm (10 mm optional)
Digital Signal Output	Up to 8 channels
Light Source	Deuterium Lamp + Tungsten Lamp
Power Supply	AC 110/220 V, 50/60 Hz

• Real-Time Solvent Pressure Compensation
• Wide-Range UV-Vis Detection
• Dual Lamp Light Source
• Rapid 0.1-Second Response
• Low Baseline Noise
• Integrated Check Valve
• Quaternary Low-Pressure Pump
• 70 MPa High-Pressure Operation

Auto Sampler
Column Oven

Used to separate and analyze complex mixtures of compounds in pharmaceutical, analytical, biochemical, environmental, food, and industrial laboratories.
