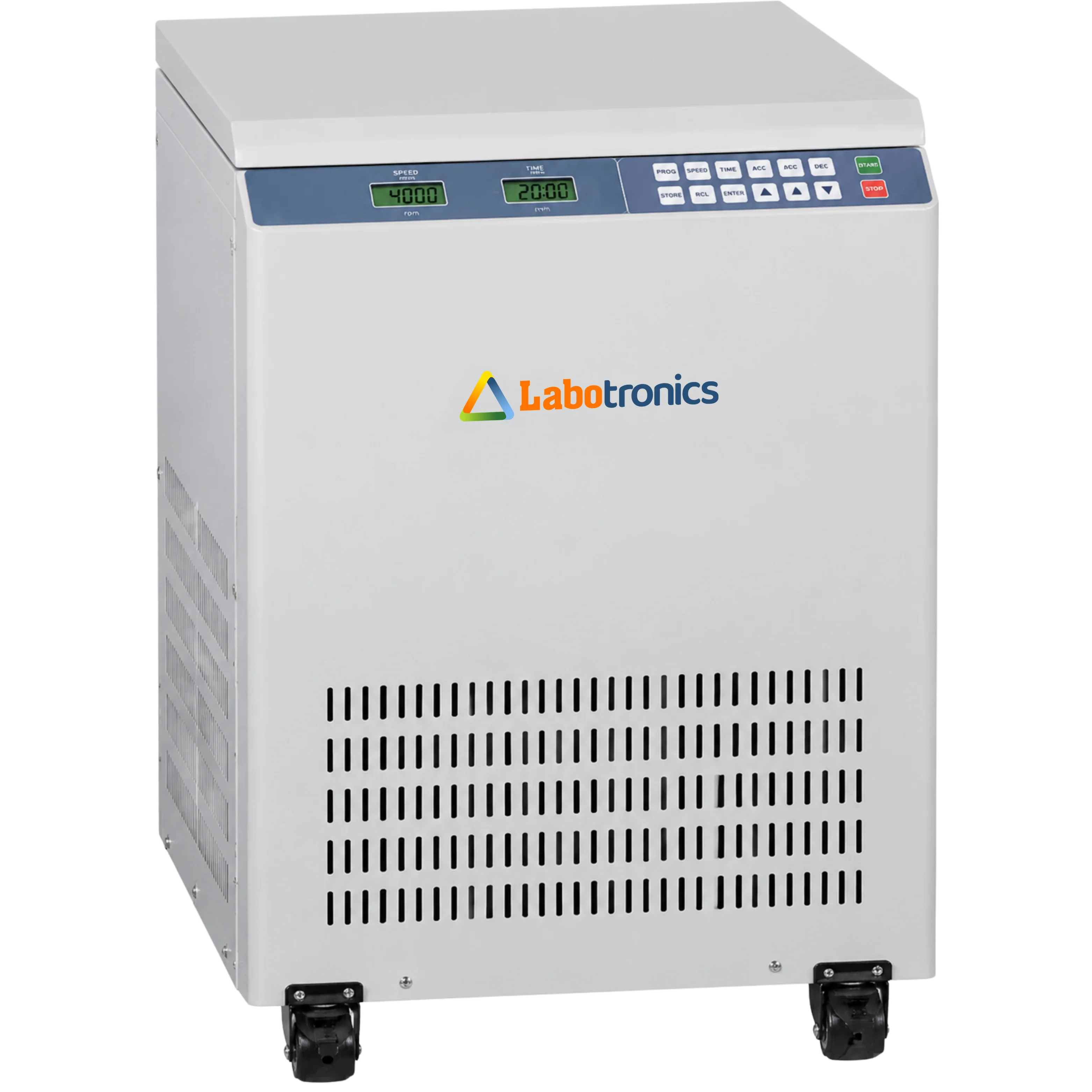

High speed refrigerated centrifuge LB-32HRC Catalog

High speed refrigerated centrifuge LB-32HRC is a microcomputer controlled centrifuge with high refrigeration efficiency. Features an electric door that provides better safety. Digitalized LCD panel for viewing ongoing parameters with simultaneous regulation of speed and time. The parameters can be changed anytime during the process without any downtime.

Max speed	23000 rpm
Max RCF	33097 x g
Speed accuracy	± 100 rpm
Temperature range	-20 °C to -40 °C
Temperature accuracy	± 2 °C
Noise	≤ 55 dB
Time range (hh:mm:ss)	1 min ̴ 99 : 99 : 59
Power supply	AC 220 V 50 Hz
Power	2200 W
Dimensions	660 x 500 x 855 mm
Weight	69 kgs

• Nine ascending and descending rate selection mode
• Ten work mode options that can free programming call
• Double synchronous display screen
• Full steel structure with stainless steel centrifugal cavity
• Two optional timing mode with easy switching options
• Magnetic locks and double lock rod design doors
• AC frequency conversion motor drive
• Automatic identification of rotor

Used for handling larger sample sizes at high angular velocities. They are ideal for a wide range of separation tasks used in the cell culture and clinical sectors involving DNA, RNA, viruses, proteins and more.

Model	Max speed	Max RCF	Rotor capacity
Angle rotor 01	23000	30735	24 × 0.2 ml
Angle rotor 02	23000	26614	12 ×0.5 ml
Angle rotor 03	21000	32458	24 × 0.5 ml
Angle rotor 04	21500	33097	12 × 1.5 ml /2.2 ml
Angle rotor 05	16000	22810	24 × 1.5 ml /2.2 ml
Angle rotor 06	16000	17459	12 × 5 ml
Angle rotor 07	15000	18743	12 × 7 ml
Angle rotor 08	12000	14170	8 × 15 ml
Angle rotor 09	15000	20880	12 × 10 ml
Angle rotor 10	12000	16099	6 × 50 ml
Angle rotor 100	12000	14645	6 × 100 ml
Angle rotor 12	8000	9159	6 × 250 ml
Angle rotor 13	16000	26331	36 × 1.5 ml /2.2 ml
Angle rotor 14	18000	22097	32 × 0.2 ml
Angle rotor 15	16000	31482	48 × 0.5 ml
ELISA plate rotor 01	4000	1651	96 holes × 2
ELISA plate rotor 02	4000	2263	96 Holes × 4
