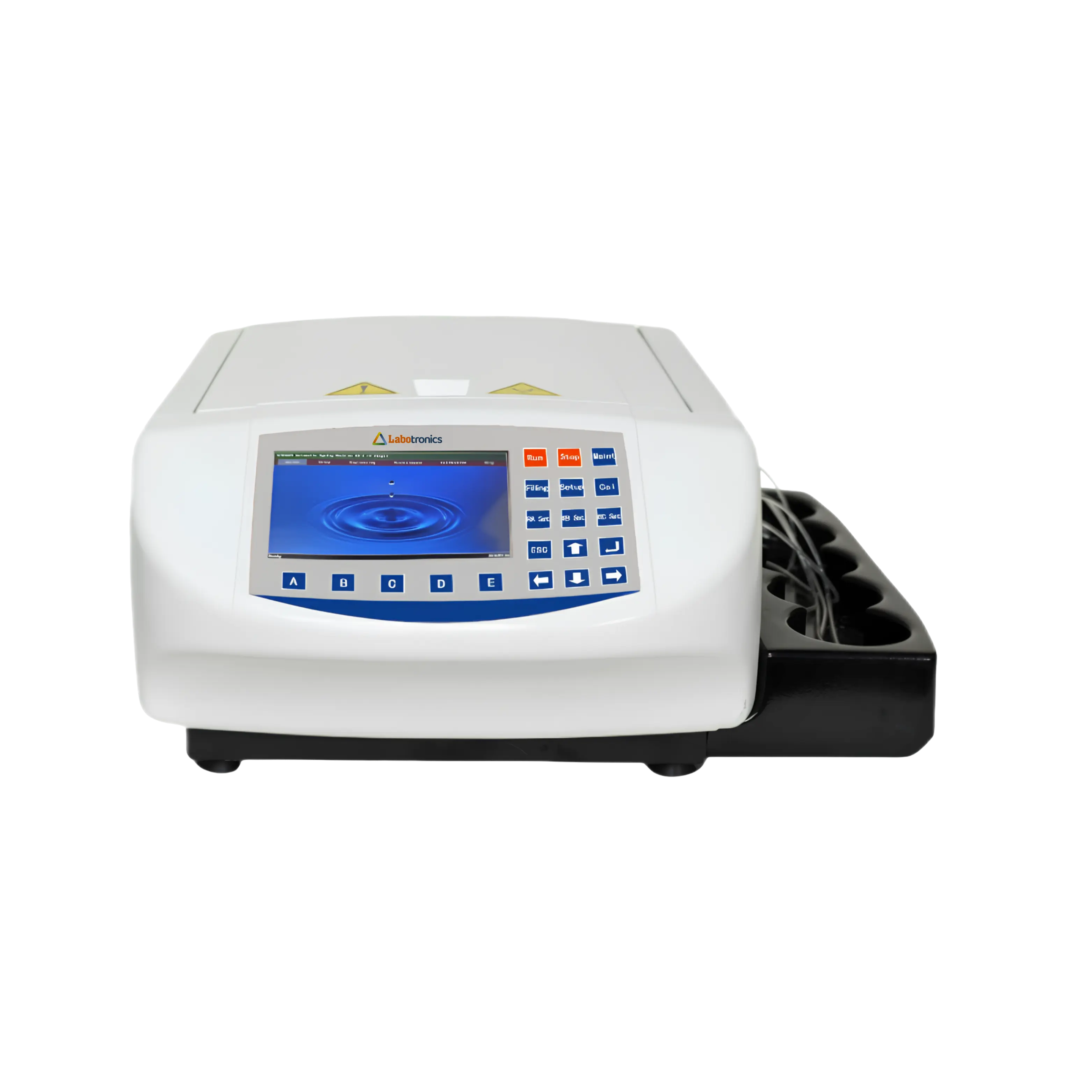

Automated Gram Staining Machine LB-12SAGS Catalog

Automated Gram Staining Machine LB-12SAGS with automated fixation, crystal violet staining, iodine treatment, decolorization, counterstaining, washing, and drying. Lab slide stainer featuring 12 to 24 slide capacity, 4 to 6 minute cycle time, 0.8 to 1 mL reagent consumption, adjustable decolorization, and spray nozzle reagent application.

Staining Type	Gram Staining
Slide Capacity	12 or 24 slides
Clearance Height	580 mm
Tray Rotation Speed	20 rpm for 12 slides; 10 rpm for 24 slides in stain mode
Drying Rotation Speed	Approx. 950 rpm
Reagent Consumption	0.8 to 1 ml
Staining Time	4 minutes for 12 slides; 6 minutes for 24 slides
Display	7-inch TFT LCD
Power	Max. 115 W
Power Supply	220 V, 50 to 60 Hz
Dimension	560 × 250 × 540 mm
Weight	20 kg

• Provide staining service for hospital, CDC and any size microbiology labs
• Fully automated stain process from fixation to drying, convenient, simply load slides
• Intelligent decolorization process adjustable to the smear thickness and specimen types to ensure the accurate staining results
• Spray nozzle to decrease reagent consumption, 600-1200 slides for 500ml reagents
• High throughput design, up to 12 slides for the slide carousel capacity, 180 slides ready in one hour.
• Quick and accurate, 4 minutes to get the results.
• Standard staining process: fixed, crystal violet staining, washing, iodine mordant, washing, alcohol decolorization and washing, counterstain, drying
• No cross contamination, closed system, safe and clean
• Intuitive graphical touch screen, easy to operate

Gram Staining Reagents  three-step method
Gram Staining Reagents  four-step method

Automated Gram Staining Machine LB-12SAGS  is used for Gram staining of microorganisms, bacterial identification, infection diagnosis, antimicrobial resistance testing, and analysis of clinical specimens including blood, lung lavage fluid, cerebrospinal fluid, feces, saliva, vaginal swabs, and urine.
