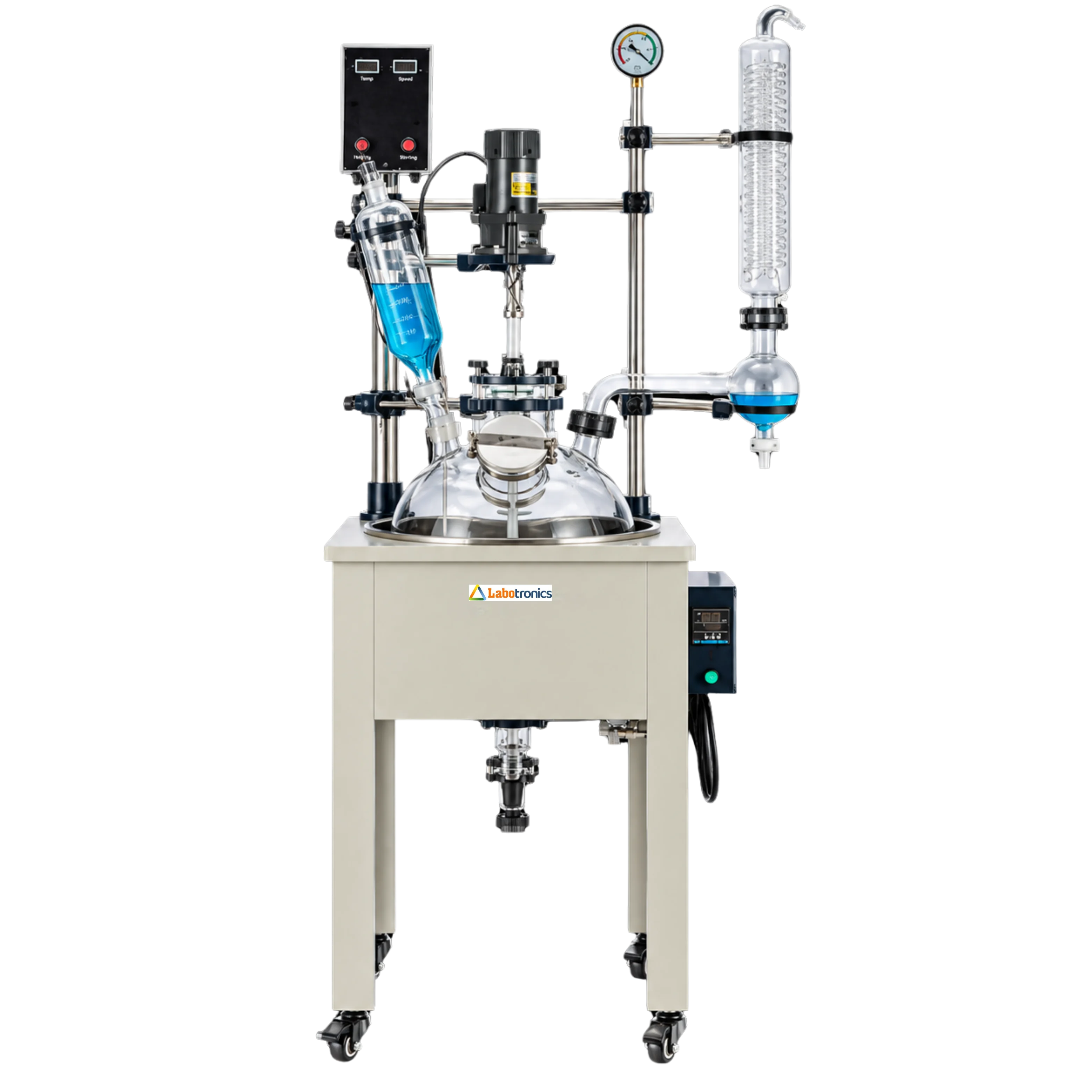

Single Glass Jacketed Reactor LB-76SGR features a 20 L high-grade borosilicate glass vessel, offering ample capacity to perform a wide range of chemical reactions. It provides an adjustable stirring speed of 0 to 450 rpm, ensuring optimal mixing performance. It offers a temperature range from -80°C to +250°C, making it ideal for both low-temperature and high-temperature applications. Our system features a brushless copper motor, delivering reliable and energy-efficient performance.
| Capacity | 20 L |
| Temperature Range (Glass Vessel) | -80°C to +250°C |
| Temperature Accuracy | ±1°C |
| Stirring Speed | 0 to 450 rpm |
| Vacuum Degree | 0.098 MPa |
| Glass Vessel Diameter | φ355 mm |
| Dropping Funnel Capacity | 2 L |
| Stirring Motor Power | 120W / 3 |
| Heating Power | 5kW |
| Power Supply | 220V / 50Hz |
| Dimensions | 810 × 540 × 1960 mm |
| Weight | 48 kg |
Robust construction
PTFE + Fluororubber dual sealing system
Low noise operation
Easy to clean
Single Glass Jacketed Reactor LB-76SGR is used for chemical synthesis, pharmaceutical formulation, and extraction processes. It is widely used in university research, chemical and biological laboratories, biopharmaceutical industries, aerospace, and healthcare.
