Tube Furnace LB-20TF Catalog

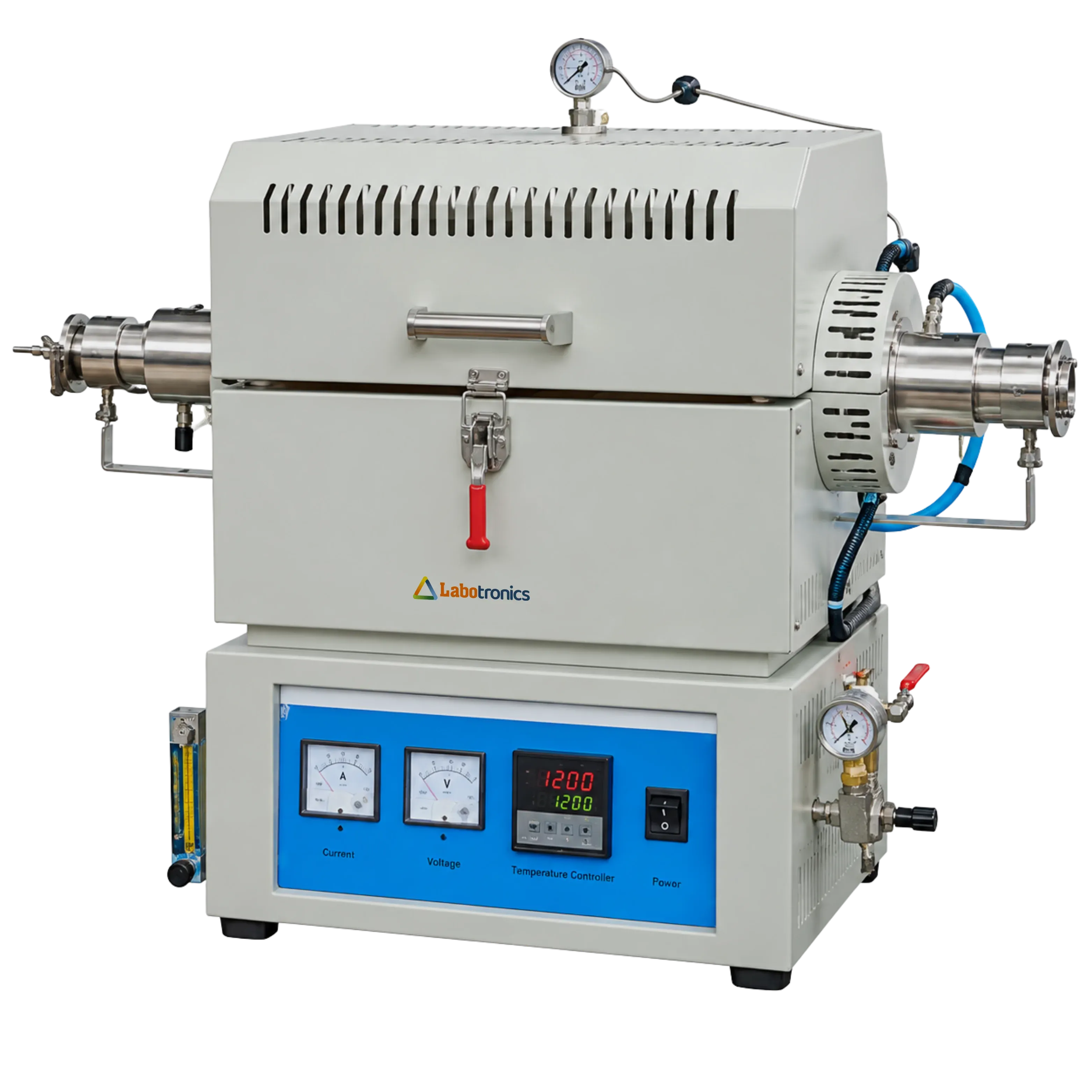

Tube Furnace LB-20TF

info@labotronics.com | www.labotronics.com

Overview

Tube furnace LB-20TF is a box type table top unit with provision of gas insertion. PID digital controller installed at the base of chamber controls heat temperature, air flow, pressure and speed. Selection of tube material depends on the vacuum status and temperature. FeCrAl alloy molded heating element provides intermediate electric resistance and withstand high temperature. Safety devices include ELB (elastic load balancing) and overheating protection system for end user safety.

Specifications :

Heater power	3 kW
Heating tube diameter ( Ø )	50 mm
Heating tube length	300 mm
Maximum temperature range	1000 °C
Working temperature range	300 °C ~ 900 °C
Temperature accuracy	± 1 % ( at setting temperature )
Power ( 1 phase )	AC 230 V 50 Hz / 60 Hz
Overall dimensions ( W × D × H )	550 × 500 × 755 mm
Net weight	42 kgs

Features :

Ceramic wool and board tube insulation
Nitrogen gas atmosphere
Optional gases : Ar, H₂, He, CO, CO₂
Gas flow meter (rate of gas flow measurement)
K type thermocouple (Chromel/Alumel) exhibits good corrosion resistance
Solid-state relay (SSR) type temperature regulator (heat dissipation)
FIB module (interior material)
Steel plate with powder coated finish (exterior material)

Applications :

Used in laboratory research, materials testing, ceramics, crystal growth, heat treating, annealing, melting, firing, cleaning, etc.
