Vertical Autoclave LB-17VCA Catalog

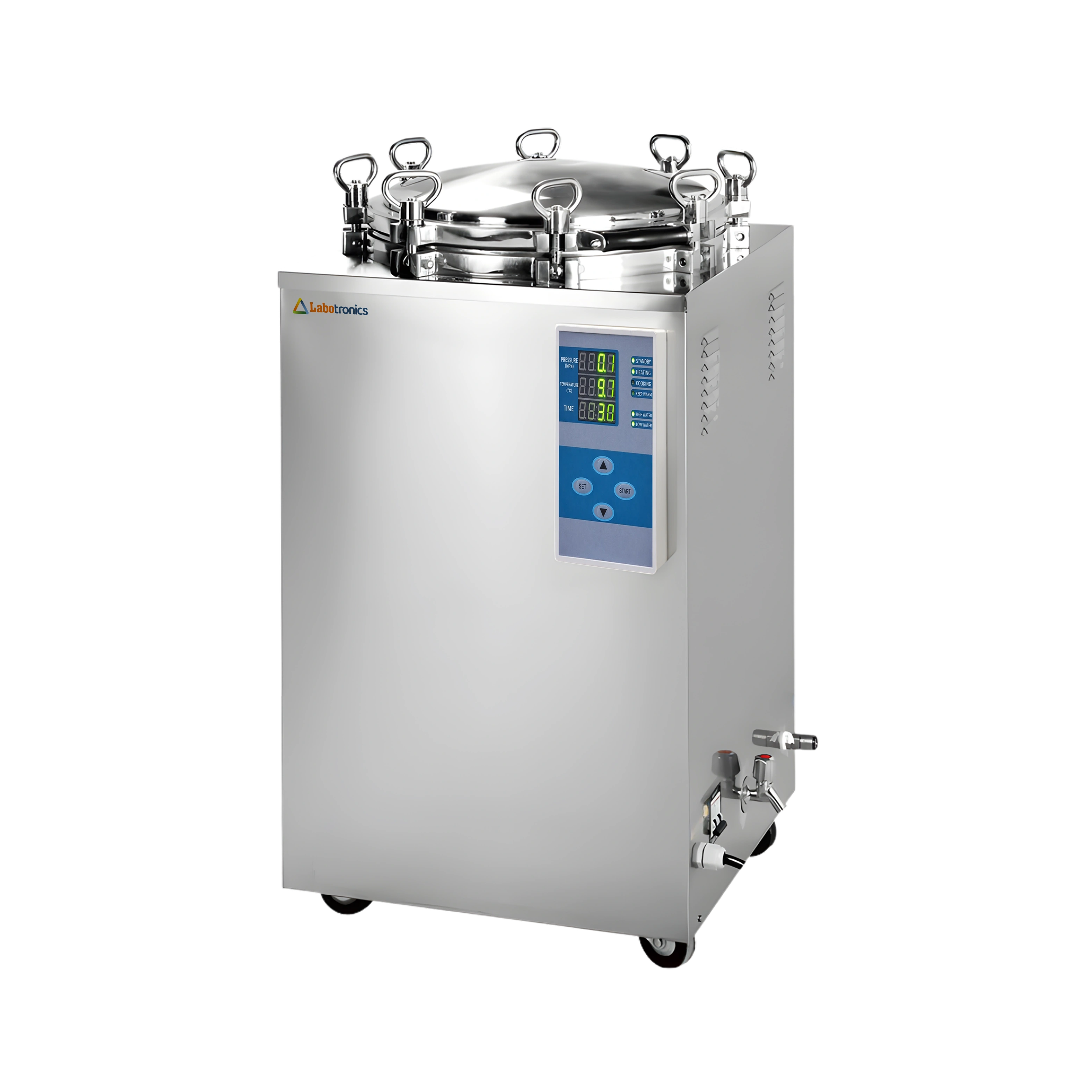

Vertical Autoclave LB-17VCA

info@labotronics.com | www.labotronics.com

Overview

Vertical Autoclave LB-17VCA has a 100 L chamber and 134 °C maximum temperature, ensuring efficient sterilization. It can withstand a working pressure of 0.22 MPa, ensuring safe operation under high-pressure conditions. It automatically discharges cold air and steam after sterilization for safe and efficient operation. Our autoclave is equipped with a digital display and touch controls for easy and precise operation.

Specifications :

Capacity	100 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa
Maximum Working Pressure	0.23 MPa
Timer Range	0 to 99 min / 0 to 99 hr 59 min
Power Consumption	4.5 kW
Power Supply	AC 220 V; 50 Hz
Interior Dimension	Φ 440 × 650 mm
Exterior Dimension	580 × 560 × 1060 mm
Packaging Dimension	640 × 640 × 1170 mm
Net Weight	73 kg
Gross Weight	95 kg

Features :

Stainless steel build
Microcomputer control
Safety interlock system
Audible cycle completion
Easy maintenance
Uniform heat distribution
Long service life

Applications :

Vertical Autoclave LB-17VCA is suitable for sterilizing surgical tools, lab equipment, and culture media. It is widely used in medical, research, and industrial facilities.
