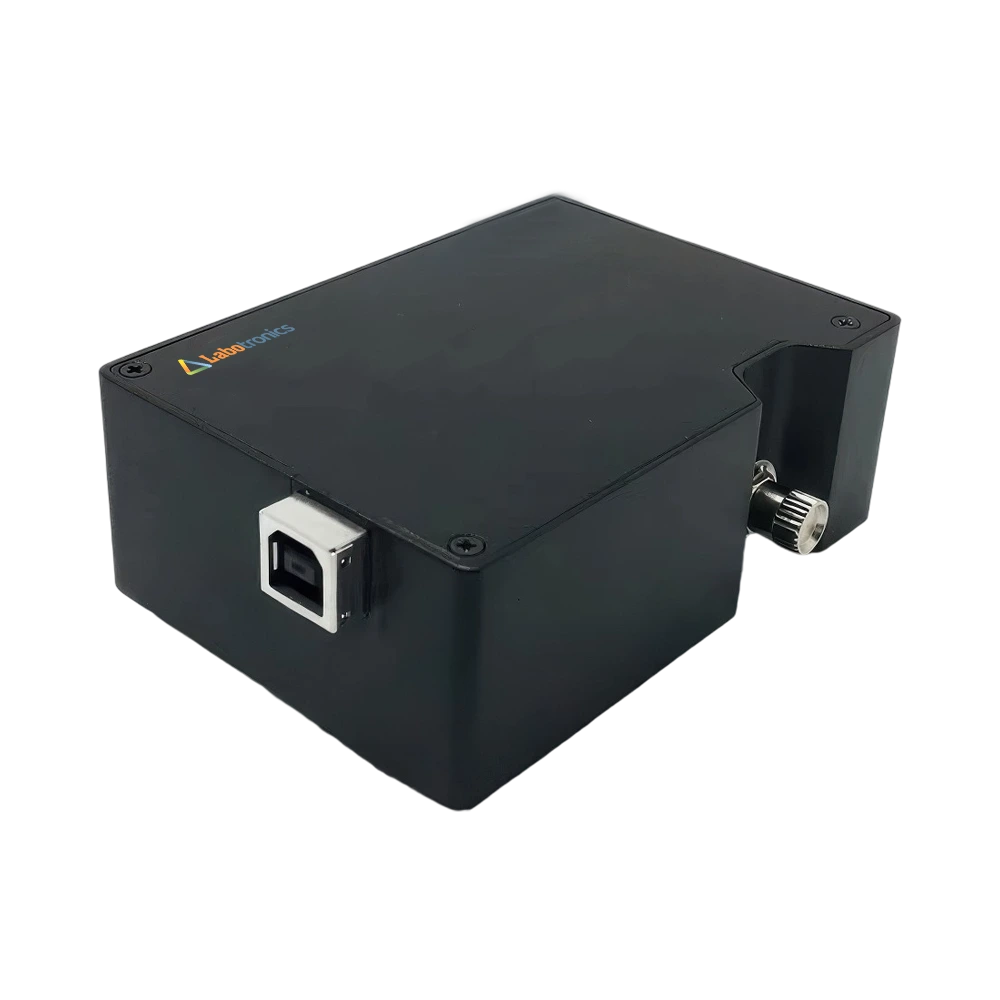

Fiber Optic Spectrometer LB-12FOS comes with a wavelength range of 350 to 1100 nm for accurate spectral analysis. It offers high optical resolution of less than 0.75 nm, ensuring detailed spectral measurements. It delivers reliable performance even under challenging conditions with fast scan speeds. Our spectrometer has a clear digital display for real-time monitoring of spectral data during analysis.
$ 3162.5
Download CatalogSpecifications
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons / count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Signal-to-Noise Ratio | 300:1 |
| Stray Light | < 0.05% at 600 nm < 0.10% at 435 nm |
| Integration Time | 4 ms to 10 s |
| Detector | 3648 pixels |
| Pixel Size | 8 µm × 200 µm |
| Fiber Optic Connector | SMA905 to 0.22 NA single-strand fiber |
| Entrance Aperture Options | 5, 10, 25, 50, 100, 200 µm |
| Optical Design | Symmetrical Czerny-Turner |
| Focal Length | 101.6 mm |
| Trigger Modes | 2 types |
| Power | 450 mA at 5 VDC |
| Connector | 30-pin connector |
| Dimension | 149 × 105 × 46 mm |
| Net Weight | 840 g |
Features
High signal accuracy
Enhanced optical stability
Multiple gratings for UV & IR
Easy-to-use
Low noise performance
Standard Accessories
Software
Optional Accessories
EX-TA/TB Box
1.0/1.5/2.0 m 400 µm fiber
400 µm fiber holder
SMA905 or FC/PC 400 µm fiber
Applications
Fiber Optic Spectrometer LB-12FOS is ideal for textile colour analysis, coating thickness measurement, food colour quality control, and polymer evaluation. It is used in textile plants, food processing units, polymer laboratories, and industrial quality control environments.
Frequently asked questions For Fiber Optic Spectrometer
1. What is the main function of the Labotronics LB-12FOS Fiber Optic Spectrometer?
Labotronics Fiber Optic Spectrometer LB-12FOS is designed for high-precision spectral analysis across UV, visible, and near-infrared regions, supporting applications like color evaluation, coating thickness measurement, and polymer testing.
2. Is the Labotronics LB-12FOS easy to use for routine analysis?
Yes, Labotronics LB-12FOS features user-friendly software and a clear digital display for real-time monitoring, making it simple to operate during routine and advanced testing.
3. Can the Labotronics LB-12FOS handle small or low-intensity samples?
Yes, Labotronics LB-12FOS offers high sensitivity and an excellent signal-to-noise ratio, ensuring reliable measurements even for low-light or trace-level samples.
4. What is the primary use of a Labotronics Fiber Optic Spectrometer?
Labotronics Fiber Optic Spectrometers are used for precise spectral analysis of light, enabling accurate identification and quantification of materials in scientific and industrial applications.
5. How does a Labotronics Fiber Optic Spectrometer capture and analyze spectral data?
Labotronics Fiber Optic Spectrometers uses fiber optic probes to collect light from the sample and directs it through diffraction gratings, allowing the system to separate and measure specific wavelengths for detailed analysis.
6. Can Labotronics Fiber Optic Spectrometers be used for real-time monitoring?
Yes, our fiber optic spectrometers feature digital displays that allow real-time monitoring of spectral data during experiments, enhancing data accuracy and user control.
7. Are Labotronics Fiber Optic Spectrometers suitable for field applications?
Yes, Labotronics Fiber Optic Spectrometers feature a compact design and flexible fiber optic connectivity, making them ideal for both laboratory and field-based use in environmental, chemical, and biomedical studies.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | Depends on grating mark density and slit size |
| Detector | 2048 pixels |
| Pixel Size | 14 µm × 14 µm |
| Signal-to-Noise Ratio | ~ 450:1 |
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Signal-To-Noise Ratio | 300:1 |
| Wavelength Range | 200 to 1100 nm (optional, max. 650 nm span) |
| Optical Resolution | < 1.0 nm |
| Detector | 3648 pixels |
| Pixel Size | 8 µm × 200 µm |
| Signal-to-Noise Ratio | 300:1 |
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Signal-to-Noise Ratio | 300:1 |
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Signal-to-Noise Ratio | 300:1 |
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | Depends on grating mark density and slit size |
| Detector | 2048 pixels |
| Pixel Size | 14 µm × 14 µm |
| Signal-to-Noise Ratio | ~ 450:1 |
