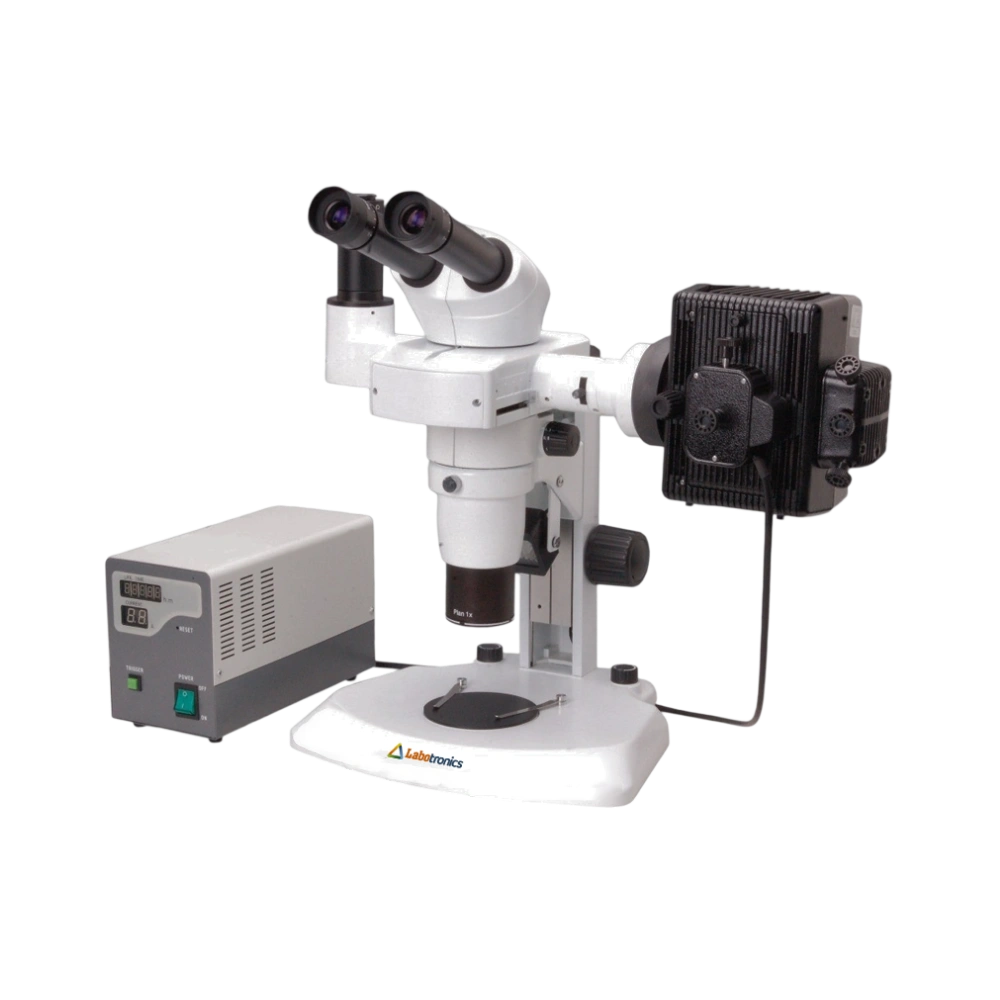

Fluorescent Stereo Microscope LB-10FSM

Name: Fluorescent Stereo Microscope LB-10FSM
Brand: Labotronics
SKU: LB-10FSM
Rating: 4.9 (592 reviews)

Fluorescent Stereo Microscope LB-10FSM features a parallel optical zoom system, ensuring distortion-free, high-resolution specimen observation. It includes a 20° inclined binocular viewing head for comfortable and flexible positioning. Our microscope is equipped with GFP-B and GFP-L filter sets for high-contrast fluorescence imaging. It has transmitted and reflected LED illumination, allowing for detailed sample analysis.

$ 7450

Download Catalog

Specifications

Optical System	Parallel optical zoom system
Viewing Head	Binocular head
Inclination	20° inclination
Eyepiece	EW10X/22 (Diopter adjustment eyepiece)
Plan Achromatic Objective	1x
Zoom Objective	0.8x to 5x
Zoom Ratio	1:6
Working Distance	78 mm
Fluorescent Attachment	GFP-B (EX480-500, DM505, BA510-560) GFP-L (EX460-500, DM505, BA510)
Focusing	Coarse focusing stand
Focusing Range	105 mm
Illumination	Transmitted & reflected LED illumination, (brightness adjustable) 100W Ultra high-voltage spherical mercury lamp
Lamp Power Supply	NFP-1 with digital display
Product Dimension	360 × 320 × 620 mm
Packaging Dimension	460 × 420 × 720 mm
Net Weight	13 kg
Gross Weight	15 kg

Features

Diopter-adjustable eyepiece
Plan achromatic objective
High-resolution imaging
Coarse focusing stand
Adjustable LED brightness
Mercury lamp support
Digital lamp power control

Standard Accessories

WF10X Eyepiece × 1 pair
Zoom Body × 1 pc
1x Plan Achromatic Objective × 1 pc
Fluorescence Kit (with Blue and Green Excitation Filters) × 1 pc
Top and Bottom LED Illumination Stand × 1 pc

Applications

Fluorescent Stereo Microscope LB-10FSM is used for high-contrast observation of fluorescent-labeled specimens in life science, biomedical, and materials research. It is widely used in laboratories, research institutes, and industrial inspection for detailed 3D imaging and fluorescence analysis.
