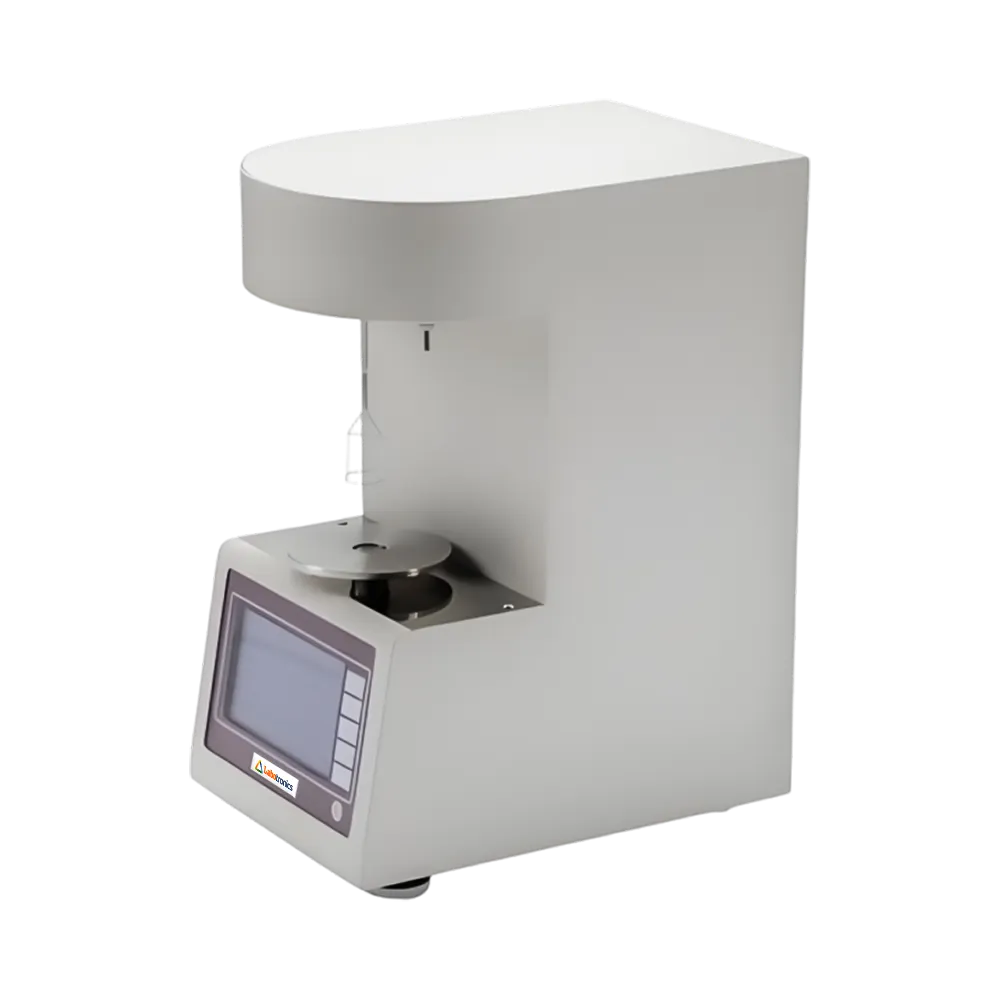

Interfacial Tensiometer LB-11PIT

Name: Interfacial Tensiometer LB-11PIT
Brand: Labotronics
SKU: LB-11PIT
Rating: 4.6 (561 reviews)

Interfacial Tensiometer LB-11PIT offers a measuring range of up to 400 mN/m and operates within a temperature range of 10℃ to 40℃. It uses a platinum ring of precise radius and wire thickness for consistent and repeatable measurements. It features automatic temperature compensation, maintaining accuracy under changing environmental conditions. Our tensiometer features an 8-inch 65K color LCD touch screen, providing clear visualization and intuitive touch operation.

$ 4375

Download Catalog Download Manual

Specifications

Measuring Range	0 to 400 mN/m
Accuracy	±0.01 mN/m
Sensitivity	0.01 mN/m
Operating Temperature Range	10℃ to 40℃
Operating Humidity	< 80%
Temperature Compensation	Automatic temperature compensation at 25°C
Self-Checking Function	Automatic diagnosis of instrument failure
Display	8-inch 65K Color LCD touch screen
Measurement Principle	Platinum ring method
Platinum Ring Radius	R 9.55 mm, Platinum wire 0.3 mm
Power Consumption	< 40 W
Power Supply	AC 220V ±10%, 50 Hz ±2.5 Hz
Dimension	420 × 390 × 280 mm
Packaging Dimension	470 × 440 × 330 mm
Net Weight	12 kg
Gross Weight	16.5 kg

Features

Compliance with ASTM D971
High measurement accuracy
Self-checking function
Smooth lifting platform
User-friendly interface
Corrosion-resistant surface
Multi-point calibration
Platinum ring method
Durable Construction

Optional Accessories

Tensiometer Platinum Ring

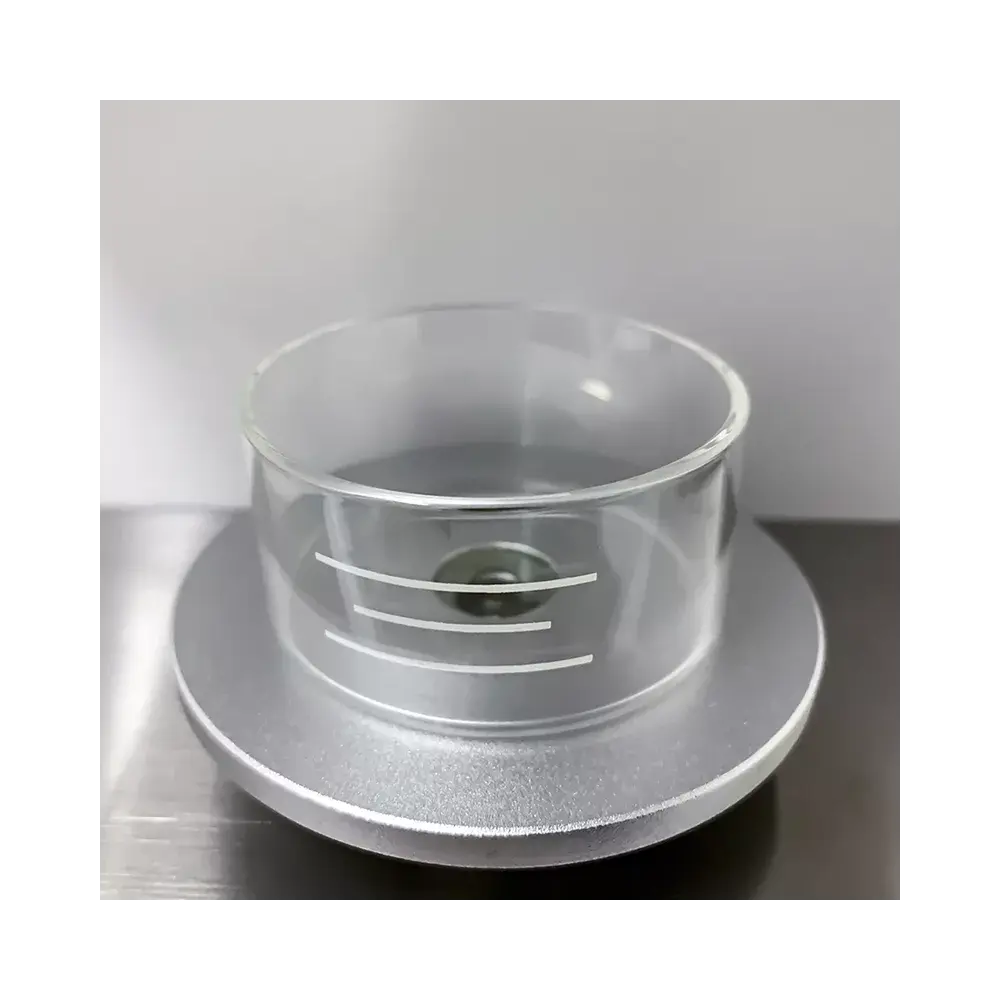

Tensiometer Sample Cup

Applications

Interfacial Tensiometer LB-11PIT is used to measure liquid surface and oil-water interface tension. It is widely used in chemical, petroleum, electric power, railway industries, and research laboratories.

Get Quote

Interfacial Tensiometer LB-10PIT

Measurement mode	The principle of platinum ring method
Measuring range	0 to 400 mN/m
Sensitivity	0.01 mN/m
Accuracy	±0.01 mN/m
Self Checking Function	Automatic diagnosis of instrument failure
