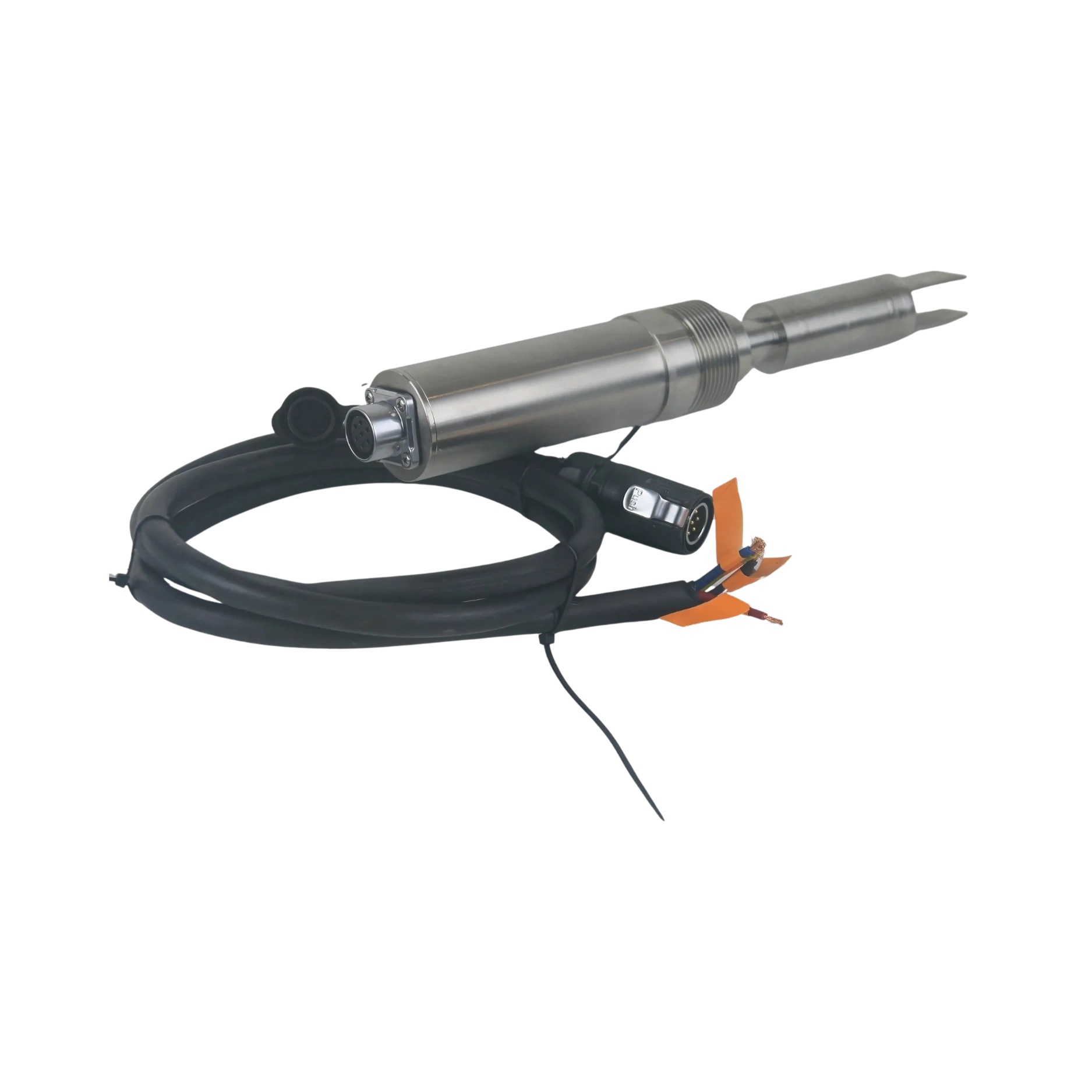

Portable Density Meter LB-12DMT offers a measuring range of 0 to 3 g/cm³ for precise liquid density measurement. It operates within a temperature range of -30 to 120 °C, ensuring reliable and consistent performance. It has IP65 ingress protection, for protection against dust and water exposure. Our portable density meter features a dual display for density and medium temperature, ensuring accurate readings.
$ 3475
Download CatalogSpecifications
| Measuring Range | 0 to 3 g/cm³ |
| Accuracy | 0.001 g/cm³ |
| Resolution | 0.0001 g/cm³ |
| Temperature Range | - 30 to 120 °C |
| Maximum Working Pressure | 20 MPa |
| Ingress Protection | IP65 |
| Power Supply | 24 V; 4 to 20 mA |
| Product Dimension | 125 × 125 × 200 mm |
| Packaging Dimension | 450 × 320 × 320 mm |
| Net Weight | 7 kg |
| Gross Weight | 9 kg |
Features
Vibrating fork principle
Frequency tracking
Plug-in design
Temperature compensation
Dual piezo crystals
High pressure-resistant
Wide temperature range
Explosion-proof design
Overpressure protection
Easy maintenance
Standard Accessories
Aluminium alloy digital head
Five digit display
Flange connection
150 mm fork length
Applications
Portable Density Meter LB-12DMT is suitable for accurate measurement of liquid and slurry density. It is widely used in pipelines, open tanks, and closed tank containers across industrial processes.
Frequently asked questions For Portable Density Meter
1. What is the main function of the Labotronics Portable Density Meter LB-12DMT?
Labotronics Portable Density Meter LB-12DMT is designed to precisely measure the density of liquids and slurries, ensuring accurate and reliable process monitoring.
2. How does the Labotronics Portable Density Meter LB-12DMT measure density?
Labotronics Portable Density Meter LB-12DMT uses the vibrating fork principle with dual piezo crystals, delivering stable and high-precision density readings.
3. Is the Labotronics Portable Density Meter LB-12DMT suitable for both portable and fixed use?
Yes, the Labotronics Portable Density Meter LB-12DMT is lightweight and compact, making it suitable for portable use while also being reliable for fixed installations.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Measuring Range | 0.65 to 1.0 g/cm³ |
| Accuracy | ± 0.0005 g/cm³ |
| Resolution | 0.0001 g/cm³ |
| Repeatability | 0.0002 g/cm³ |
| Temperature Range | 5℃ to 55℃ |
| Temperature Range | 0 °C to 40 °C |
| Test Method | U-Tube Oscillation Method |
| Accuracy | ±0.001 g/ cm³ |
| Resolution | 0.0001 g/ cm³ |
| Testing Range | 0.0000 to 2.0000 g/cm³ |
