3- Position hotplate stirrer LB-92 HPS

3- Position hotplate stirrer LB-92 HPS

3- Position hotplate stirrer LB-92 HPS is a black ceramic top hotplate stirrer with a stirring range of 100 rpm to 1500 rpm. Features a stirring capacity for flasks ranging from 50 ml to 10 L. It is equipped with PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple, controls and measures the hotplate stirrer temperature.

Buy Now Download Catalog

Specifications

Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring range 100 rpm ~ 1500 rpm
Stirring speed accuracy ± 1 rpm
Temperature accuracy ± 1 °C
Voltage 160 V ̴ 240 V, 110 V ̴ 120 V
Motor power 40 W, DC 20 V
Weight 28 kgs

Features

  • Stirring range from 100 rpm to 1500 rpm
  • Black ceramic top offers scratch resistance
  • Corrosion resistant in salt water and acid
  • Continuous working time
  • PID controlled temperature
  • Electronic speed control for constant speed even during change in load
  • Individual unit operation or all units controlled operational modes (Flexible)

Applications

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Standard Accessories

Accessory No Accessory Quantity
A1 Removable holder 3
A2 Clamp with screw 3
A3 Inner Thermocouple 4-spin 3
A4 Outer Thermocouple 3
A6 Stir bar 3

Our Team Of Experts Will Promptly Address Your Inquiry.

What our customers say

Bageshri Keche logo

1 month ago

Add a review

3 position hot plate stirrer

3 position hot plate stirrer : 3- Position hotplate stirrer LB-91 HPS
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C

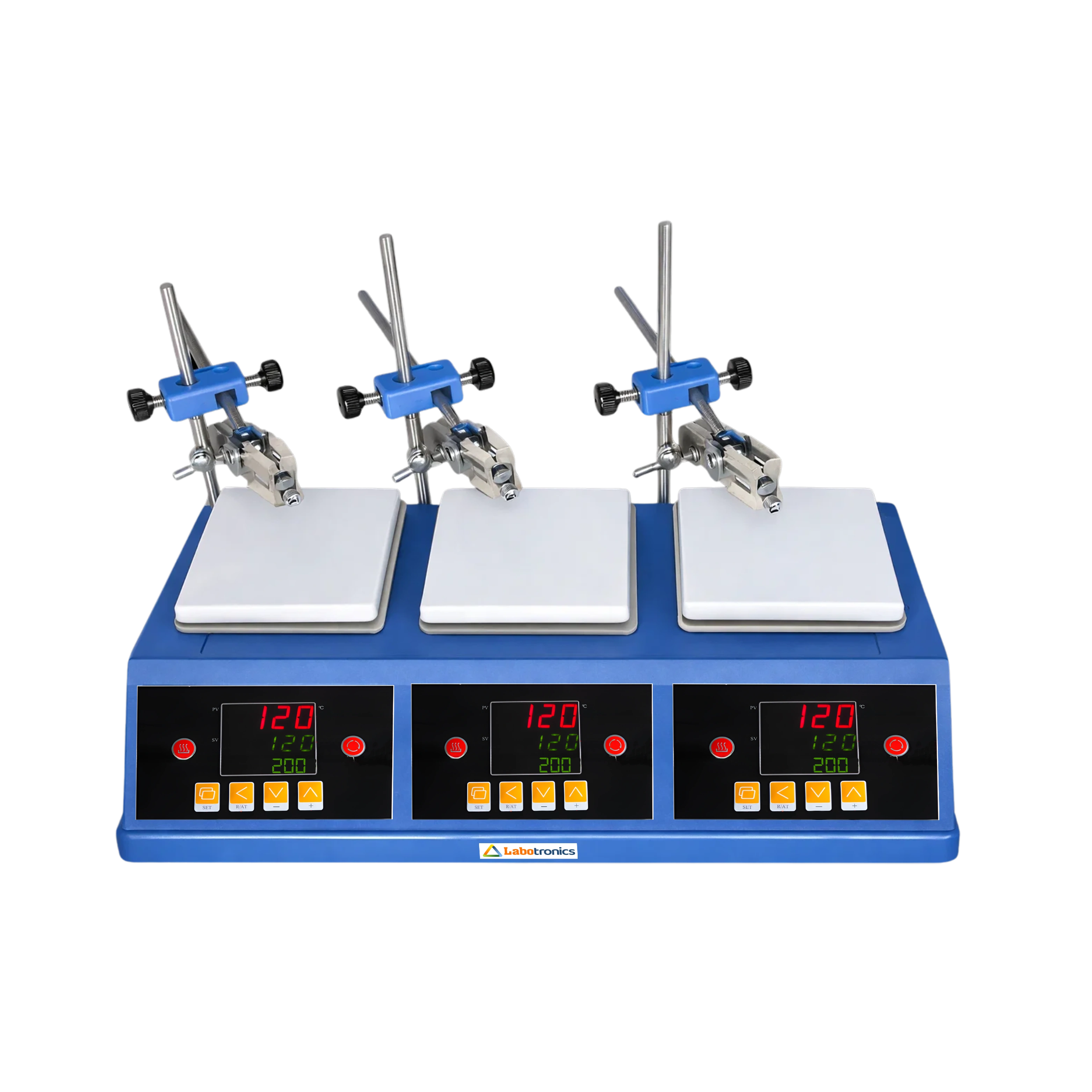

3 position hot plate stirrer : 3- Position hotplate stirrer LB-90 HPS
Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
3 position hot plate stirrer : 3- Position hotplate stirrer LB-93 HPS
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Our 10 Point Hot Plate Stirrer is a laboratory apparatus equipped with ten individual heating and stirring positions. It allows for simultaneous heating and stirring of multiple samples or vessels. This versatile device is commonly used in chemistry and biology laboratories for various applications such as solution preparation, chemical reactions, and sample heating. Each heating point can be independently controlled in terms of temperature and stirring speed, offering flexibility and efficiency in experimental setups.

Stirring capacity 50 ml ̴ 500 ml
Top ceramic dimension 450 x 190 x 20 mm
Power 750 W
Temperature 350 °C

We provide 2 Position Hot Plate Stirrer is a laboratory instrument featuring two heating and stirring positions. It is designed for simultaneous heating and magnetic stirring of two samples or containers. This compact and efficient device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, dissolution, and small-scale reactions. Each position can be independently controlled in terms of temperature and stirring speed, providing versatility and precision. With its dual functionality, it enables researchers to work on two samples simultaneously, enhancing experimental productivity and efficiency in applications where multiple samples need to be processed concurrently.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C

Labotronics 4 Position Hot Plate Stirrer is a laboratory instrument equipped with four heating and stirring positions, enabling simultaneous heating and magnetic stirring of up to four samples or vessels. This versatile and space-saving device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, chemical reactions, and blending. Each position can be independently controlled in terms of temperature and stirring speed, offering precision and customization.

Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C

Labotronics Intelligent Hot Plate Stirrer is an advanced laboratory instrument equipped with digital controls and intelligent features for precise and automated sample heating and stirring. It enables users to set and monitor temperature, stirring speed, and timer functions through a digital interface, offering superior control and accuracy. With features like memory functions and safety alerts, it ensures efficient and safe experimentation, making it an essential tool for researchers and scientists requiring precise control and automation in their laboratory work.

Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C

Our 5 Point Hot Plate Stirrer is a laboratory apparatus featuring five heating and stirring positions, allowing for simultaneous heating and magnetic stirring of up to five samples or vessels. This versatile device is commonly used in chemistry, biology, and research laboratories for tasks such as sample preparation, chemical reactions, and mixtures. Each position can be independently controlled in terms of temperature and stirring speed, offering precision and versatility. With its quintuple functionality, it significantly enhances experimental efficiency, enabling researchers to handle multiple samples simultaneously and improve productivity, making it a valuable asset for high-throughput processes and experiments requiring multiple sample manipulation.

Stirring capacity 50 ml ̴ 500 ml
Top ceramic dimension 450 x 130 x 20 mm
Power 600 W
Temperature 350 °C
