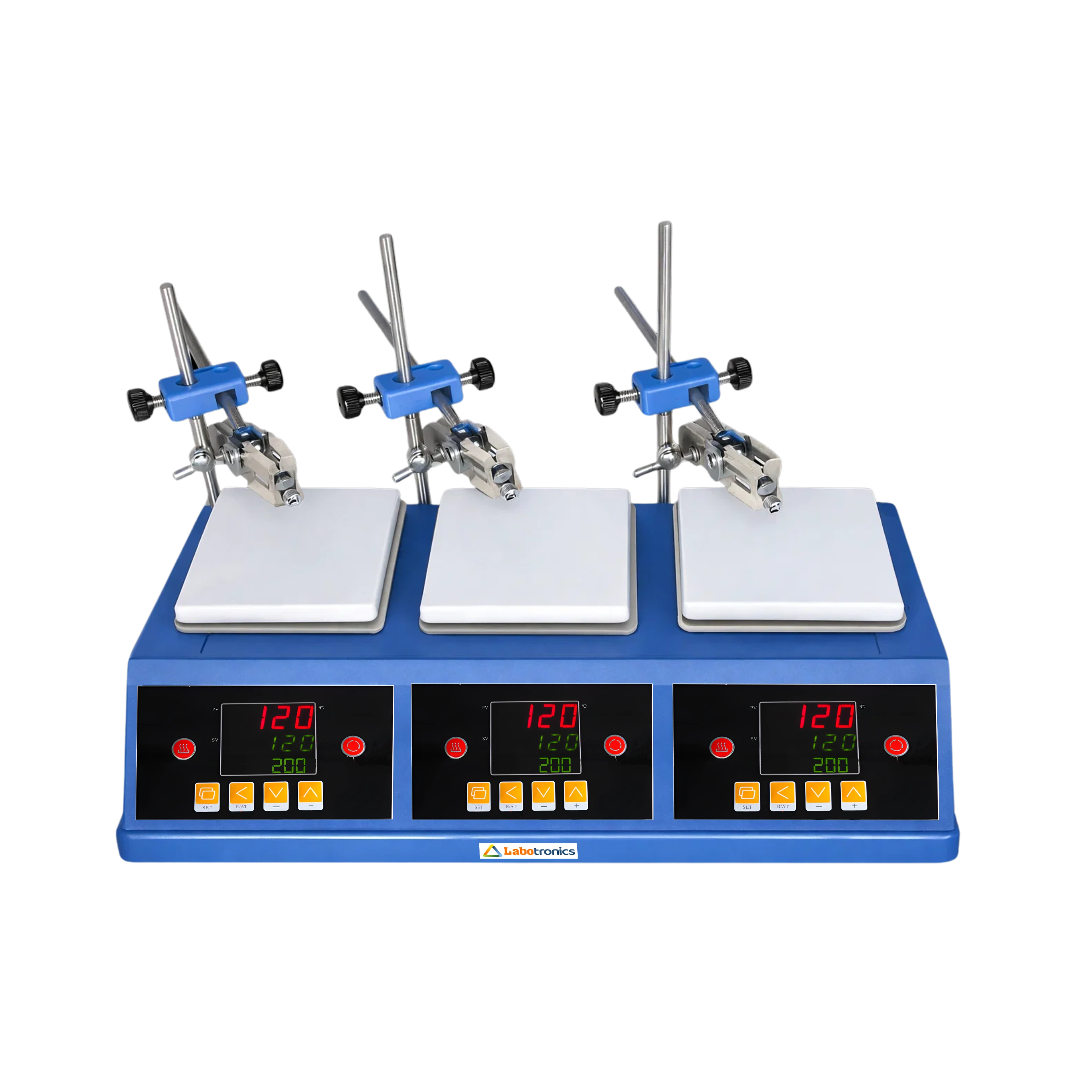

3 – Position hotplate LB-53THP is a white ceramic top hotplate with a PID controlled temperature of 400 °C for uniform heat distribution. Features a heating capacity for flasks ranging from 50 ml to 10 L. It offers digital temperature control and it contains an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple controls and measures the hotplate stirrer temperature.
Buy Now Download CatalogSpecifications
| Heat capacity | 50 ml ̴ 10 L |
| Ceramic plate dimension | 280 mm × 280 mm |
| Power | 1000 W |
| Temperature | 400 °C |
| Temperature accuracy | ± 1 °C |
| Voltage | 220 V , 50 Hz / 110 V, 60 Hz |
Features
Standard Accessories
| Accessories No | Accessories | Quantity |
| A1 | Removable holder | 3 |
| A2 | Clamp with screw | 3 |
| A3 | Inner thermocouple (4 spin) | 3 |
| A4 | Outer thermocouple (4 spin) | 3 |
| A5 | 4 prong stainless steel clamp opens to 3 1/2" | 3 |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
| Heat capacity | 50 ml ̴ 5 L |
| Ceramic plate dimension | 230 mm × 230 mm |
| Power | 750 W |
| Temperature | 400 °C |
| Heat capacity | 50 ml ̴ 1 L |
| Ceramic plate dimension | 140 mm × 140 mm |
| Power | 450 W |
| Temperature | 400 °C |
| Heat capacity | 2 L |
| Ceramic plate dimension | 180 mm × 180 mm |
| Power | 550 W |
| Temperature | 400 °C |
