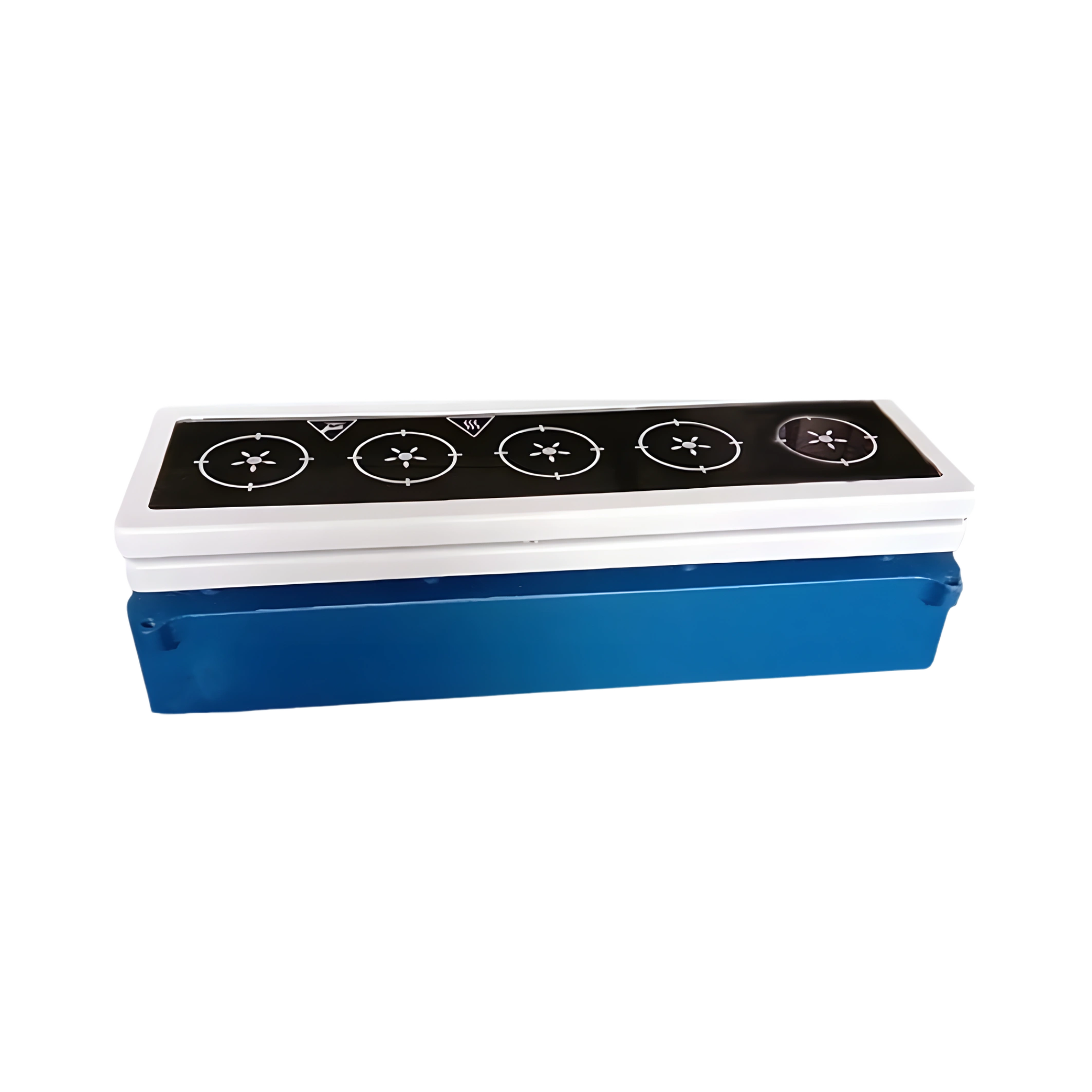

5 Point hotplate stirrer LB-40HPS

5 Point hotplate stirrer LB-40HPS

5 Point hotplate stirrer LB-40HPS is a 5-point black ceramic top hotplate stirrer with a stirring range of 0 rpm to 1400 rpm. Features a stirring capacity for flasks ranging from 50 ml to 500 ml. It is equipped with PID controlled temperature of 350 °C for uniform heat distribution. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple, controls and measures the hotplate stirrer temperature.

Buy Now Download Catalog

Specifications

Stirring capacity 50 ml ̴ 500 ml
Top ceramic dimension 450 x 130 x 20 mm
Power 600 W
Temperature 350 °C
Stirring range 0 rpm ~ 1400 rpm
Stirring speed accuracy ± 1 rpm
Temperature accuracy ± 1 °C
Motor power 8 W
Weight 7.2 kgs

Features

  • Stirring range from 0 rpm to 1400 rpm
  • Continuous working time
  • PID controlled temperature
  • Black ceramic top offers scratch resistance
  • Corrosion resistant in salt water and acid
  • Electronic speed control for constant speed even during change in load

Standard Accessories

Accessory No Accessory Quantity
A1 Removable holder 1
A2 Clamp with screw 1
A3 Inner Thermocouple 4-spin 1
A4 Outer Thermocouple 4-spins 1
A8 Magnetic bead • PTFE-coated • Length:20mm • Diameter :10mm 5

Applications

Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields.

Request Quotation

We provide 2 Position Hot Plate Stirrer is a laboratory instrument featuring two heating and stirring positions. It is designed for simultaneous heating and magnetic stirring of two samples or containers. This compact and efficient device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, dissolution, and small-scale reactions. Each position can be independently controlled in terms of temperature and stirring speed, providing versatility and precision. With its dual functionality, it enables researchers to work on two samples simultaneously, enhancing experimental productivity and efficiency in applications where multiple samples need to be processed concurrently.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Our 3 Position Hot Plate Stirrer is a versatile laboratory instrument equipped with three heating and stirring positions, allowing for simultaneous heating and magnetic stirring of three samples or vessels. This compact and efficient device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, reactions, and mixing. Each position can be independently controlled with precise temperature and stirring speed settings, offering flexibility and accuracy. With its triple functionality, it enhances experimental efficiency and productivity, enabling researchers to work on multiple samples concurrently, making it particularly valuable in high-throughput processes and experiments requiring simultaneous handling of several samples.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Labotronics 4 Position Hot Plate Stirrer is a laboratory instrument equipped with four heating and stirring positions, enabling simultaneous heating and magnetic stirring of up to four samples or vessels. This versatile and space-saving device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, chemical reactions, and blending. Each position can be independently controlled in terms of temperature and stirring speed, offering precision and customization.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

We provide 6 Position Hot Plate Stirrer is a versatile laboratory instrument designed for simultaneous heating and magnetic stirring of up to six samples or vessels. This compact and efficient device is commonly used in chemistry, biology, and research laboratories for tasks like sample preparation, chemical reactions, and mixing. Each position can be independently controlled in terms of temperature and stirring speed, providing precision and flexibility. With its six-fold functionality, it significantly enhances experimental efficiency, allowing researchers to work on multiple samples concurrently, making it an essential tool for high-throughput experiments and applications requiring simultaneous handling of several samples, thus streamlining processes and improving productivity.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Our 10 Point Hot Plate Stirrer is a laboratory apparatus equipped with ten individual heating and stirring positions. It allows for simultaneous heating and stirring of multiple samples or vessels. This versatile device is commonly used in chemistry and biology laboratories for various applications such as solution preparation, chemical reactions, and sample heating. Each heating point can be independently controlled in terms of temperature and stirring speed, offering flexibility and efficiency in experimental setups.

Stirring capacity 50 ml ̴ 500 ml
Top ceramic dimension 450 x 190 x 20 mm
Power 750 W
Temperature 350 °C

Labotronics Analog Hotplate Stirrer is a laboratory device equipped with a heating element and a magnetic stirrer, offering basic yet reliable functionality. It allows for simultaneous heating and stirring of liquid samples. Operated through analog dials or knobs, it provides simplicity and cost-effectiveness, making it suitable for routine tasks like sample mixing and gentle heating. This equipment is frequently used in various laboratory settings, offering a straightforward approach to temperature control and stirring speed adjustments without the complexity of digital displays.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Our Hot Plate Stirrers with Timer features precise temperature and stirring speed control, ensuring accurate and reproducible results. The integrated timers allow automation of experiments, making them ideal for time-sensitive applications. They include safety features like overheating protection and hot surface warnings, providing reliable operation in laboratory environments. Some models offer remote control capabilities for data logging and integration with automated systems. Labotronics hotplate stirrers ensure efficient and precise heating and stirring for chemical synthesis and biological research.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C

Labotronics Intelligent Hot Plate Stirrer is an advanced laboratory instrument equipped with digital controls and intelligent features for precise and automated sample heating and stirring. It enables users to set and monitor temperature, stirring speed, and timer functions through a digital interface, offering superior control and accuracy. With features like memory functions and safety alerts, it ensures efficient and safe experimentation, making it an essential tool for researchers and scientists requiring precise control and automation in their laboratory work.

Stirring capacity 50 ml ̴ 1 L
Top ceramic dimension 140 mm × 140 mm
Power 260 W
Temperature 400 °C
Stirring capacity 2 L
Top ceramic dimension 180 mm × 180 mm
Power 410 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 10 L
Top ceramic dimension 230 mm × 230 mm
Power 600 W
Temperature 400 °C
Stirring capacity 50 ml ̴ 15 L
Top ceramic dimension 280 mm × 280 mm
Power 750 W
Temperature 400 °C
