Analog 4-Position Heating Mantle LB-14AHM

Analog 4-Position Heating Mantle LB-14AHM

Name: Analog 4-Position Heating Mantle LB-14AHM
Brand: Labotronics
SKU: LB-14AHM
Rating: 4.5 (530 reviews)

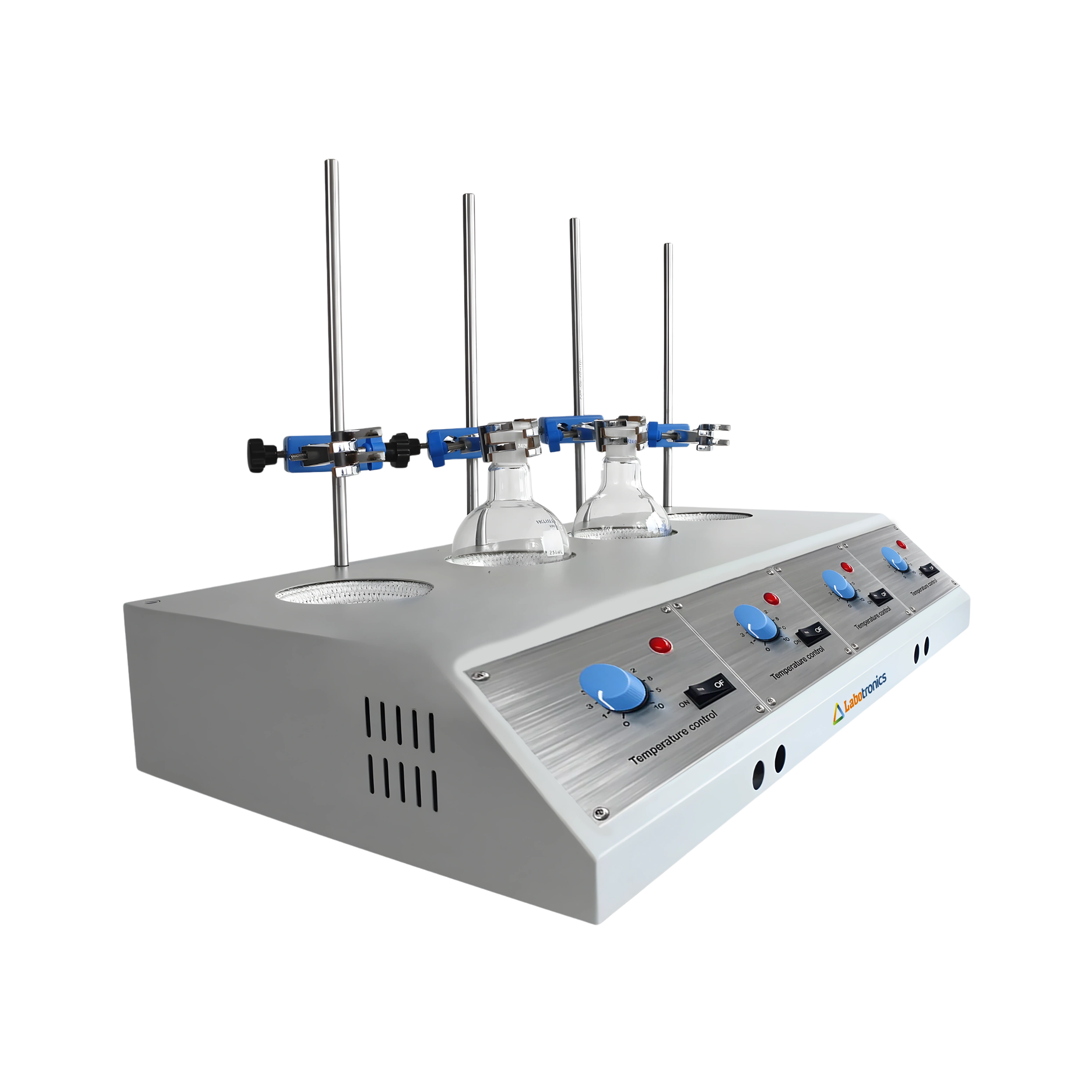

Analog 4-Position Heating Mantle LB-14AHM operates efficiently at temperatures up to 380℃ and accommodates a 1000 ml flask. It enables simultaneous heating of multiple samples with four heating positions. It features a temperature scale display for precise adjustments of temperature levels. Additionally, it is equipped with a knob-based control system, ensuring reliable liquid heating.

$ 1675

Download Catalog

Specifications

Capacity	1000 ml
Temperature Range	RT to 380℃
Temperature control	Knob
Temperature Display	Scale
Maximum Temperature Resistance	450°C
Insulating Barrier Material	Alkali Free Glass Fiber
Insulating Course Material	Environmental Alumina Silicate Fiber
Power Consumption	2120 W
Power Supply	110V to 240V
Packing Dimension	1400 × 440 × 230 mm
Net Weight	28 kg
Gross Weight	45 kg

Features

High-quality insulation
Wide temperature range
User-friendly interface
Durable construction
Low maintenance

Applications

Analog 4-Position Heating Mantle LB-14AHM is ideal for precise heating of liquids in various laboratory processes. It is perfect for laboratories, industrial research facilities, and academic environments.

Analog 4-Position Heating Mantle LB-22DHM

Capacity	250 ml
Temperature Range	RT to 380℃
Temperature control	PID auto with thermo probe
Temperature Display	Digital Display
Maximum Temperature Resistance	450℃

$ 1812.5

Analog 4-Position Heating Mantle LB-23DHM

Capacity	500 ml
Temperature Range	RT to 380℃
Temperature control	PID auto with thermo probe
Temperature Display	Digital Display
Maximum Temperature Resistance	450℃

$ 1875

Analog 4-Position Heating Mantle LB-11AHM

Capacity	100 ml
Temperature Range	RT to 380℃
Temperature control	Knob
Temperature Display	Scale
Maximum Temperature Resistance	450°C

$ 1412.5

Analog 4-Position Heating Mantle LB-12AHM

Capacity	250 ml
Temperature Range	RT to 380℃
Temperature control	Knob
Temperature Display	Scale
Maximum Temperature Resistance	450°C

$ 1437.5

Analog 4-Position Heating Mantle LB-10AHM

Capacity	50 ml
Temperature Range	RT to 380℃
Temperature control	Knob
Temperature Display	Scale
Maximum Temperature Resistance	450°C

$ 1437.5

Analog 4-Position heating mantle LB-32SHM

Capacity	250 ml
Power	216 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Stirring Speed range	0 rpm ̴ 2500 rpm

$ 1987.5

Analog 4-Position Heating Mantle LB-13AHM

Capacity	500 ml
Temperature Range	RT to 380℃
Temperature control	Knob
Temperature Display	Scale
Maximum Temperature Resistance	450°C

$ 1462.5

Analog 4-Position heating mantle LB-31SHM

Capacity	100 ml
Power	130 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Stirring Speed range	0 rpm ̴ 2500 rpm

$ 1950

Analog 4-Position Heating Mantle LB-24DHM

Capacity	1000 ml
Temperature Range	RT to 380℃
Temperature control	PID auto with thermo probe
Temperature Display	Digital Display
Maximum Temperature Resistance	450℃

$ 1900

Analog 4-Position heating mantle LB-34SHM

Capacity	1000 ml
Power	530 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Stirring Speed range	0 rpm ̴ 2500 rpm

$ 2062.5

Analog 4-Position Heating Mantle LB-21DHM

Capacity	100 ml
Temperature Range	RT to 380℃
Temperature control	PID auto with thermo probe
Temperature Display	Digital Display
Maximum Temperature Resistance	450℃

$ 1762.5

Analog 4-Position Heating Mantle LB-20DHM

Capacity	50 ml
Temperature Range	RT to 380℃
Temperature control	PID auto with thermo probe
Temperature Display	Digital Display
Maximum Temperature Resistance	450℃
