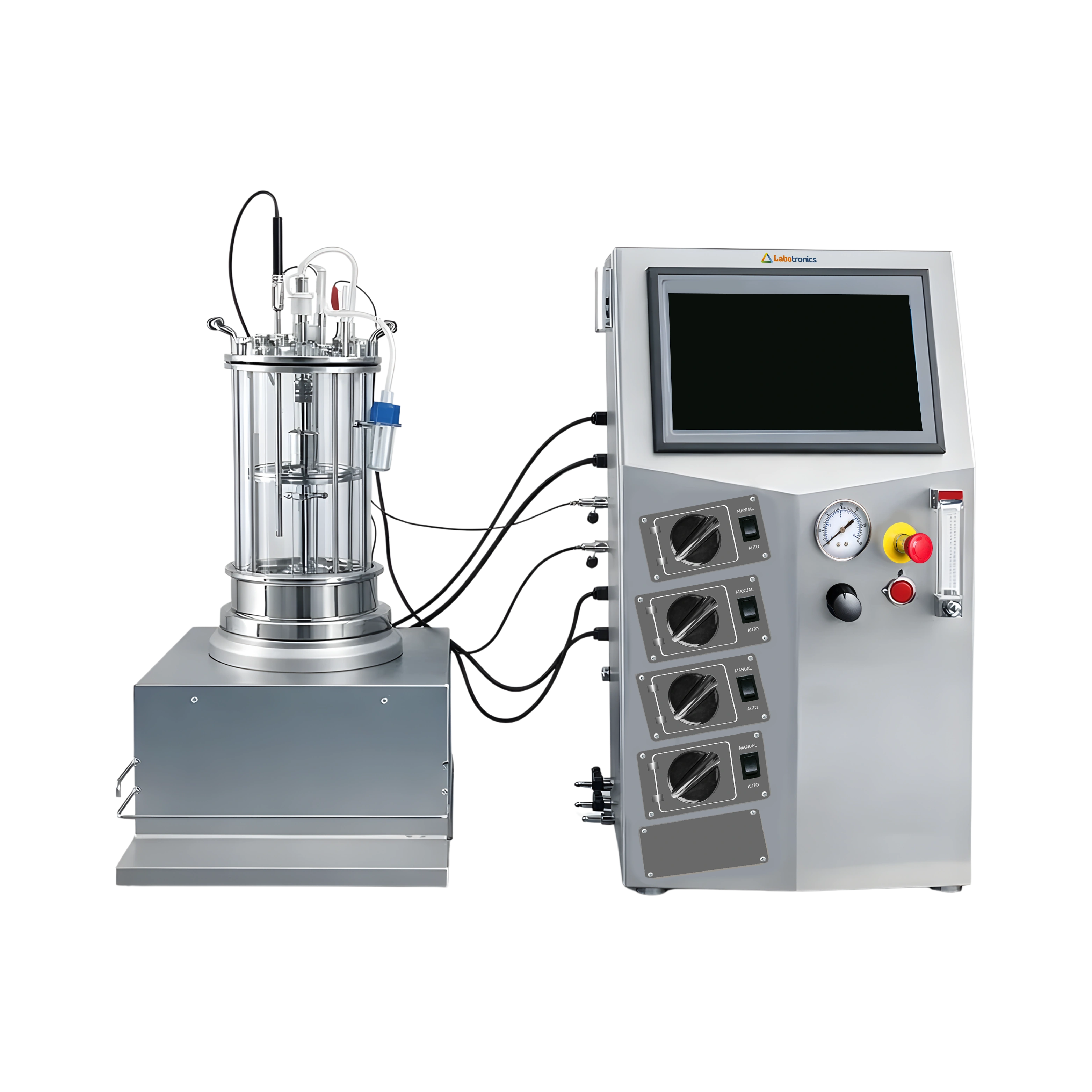

Autoclavable glass fermenter LB-22GFS is a mechanically driven stirred-tank bench top fermenting unit. Culture tank design aids interchangeability, reducing downtime during off-site sterilisation. Touchscreen panel allows one-spot adjustments for varied fermentation phases. Data transmission and review via USB interface ensures effective record management.
Specifications
| Total volume | 5 L |
| Working volume | 2.5 L ~ 3.5 L |
| Culture tank aspect ratio | 2:1 |
| Stirring speed | 70 rpm ~ 1200 rpm ± 1 % |
| Thermo-control range | 5 °C ~ 65 °C ± 0.1 °C |
| pH control range | 2.0 pH ~ 12.0 pH ± 0.05 pH |
| Dissolved oxygen control range | 0 % ~ 150 % ± 3 % |
| Dissolved oxygen control precision | 0.001 |
| Feeder control | Multi-channel peristaltic pump |
| Data transmission | USB interface |
| Power | 220 V ; 2 kW |
| Dimensions | 800 × 500 × 650 mm |
| Weight | 80 kgs |
Features
Applications
Used in pharmaceutical laboratories, cell research laboratories for different stages of cultivation of microbial fermentation suitable for culture of microbial cells, yeast, etc. in a laboratory setup.
Catalog
Dowload PDF Catalog
| Total volume | 0.5 L |
| Working volume | 0.3 L |
| Mixing Mechanism | |
| Tank | 90 mm × 155 mm |
| Total volume | 1 L |
| Working volume | 0.5 L ~ 0.7 L |
| Mixing Mechanism | |
| Tank | 90 mm × 155 mm |
| Total volume | 2 L |
| Working volume | 1 L ~ 1.4 L |
| Mixing Mechanism | |
| Tank | 100 mm × 260 mm |
| Total volume | 3 L |
| Working volume | 1.5 L ~ 2 L |
| Mixing Mechanism | |
| Tank | 150 mm × 210 mm |
| Total volume | 4 L |
| Working volume | 2 L ~ 2.5 L |
| Mixing Mechanism | |
| Tank | 150 mm × 260 mm |
| Total volume | 5 L |
| Working volume | 2.5 L ~ 3.5 L |
| Mixing Mechanism | |
| Tank | 150 mm × 310 mm |
| Total volume | 7 L |
| Working volume | 3.5 L ~ 5 L |
| Mixing Mechanism | |
| Tank | 150 mm × 710 mm |
| Total volume | 10 L |
| Working volume | 5 L ~ 7 L |
| Mixing Mechanism | |
| Tank | 174 mm × 458 mm |
| Total volume | 2 L |
| Working volume | 1 L ~ 1.5 L |
| Mixing Mechanism | |
| Tank |
| Total volume | 3 L |
| Working volume | 1.5 L ~ 2.1 L |
| Mixing Mechanism | |
| Tank |
