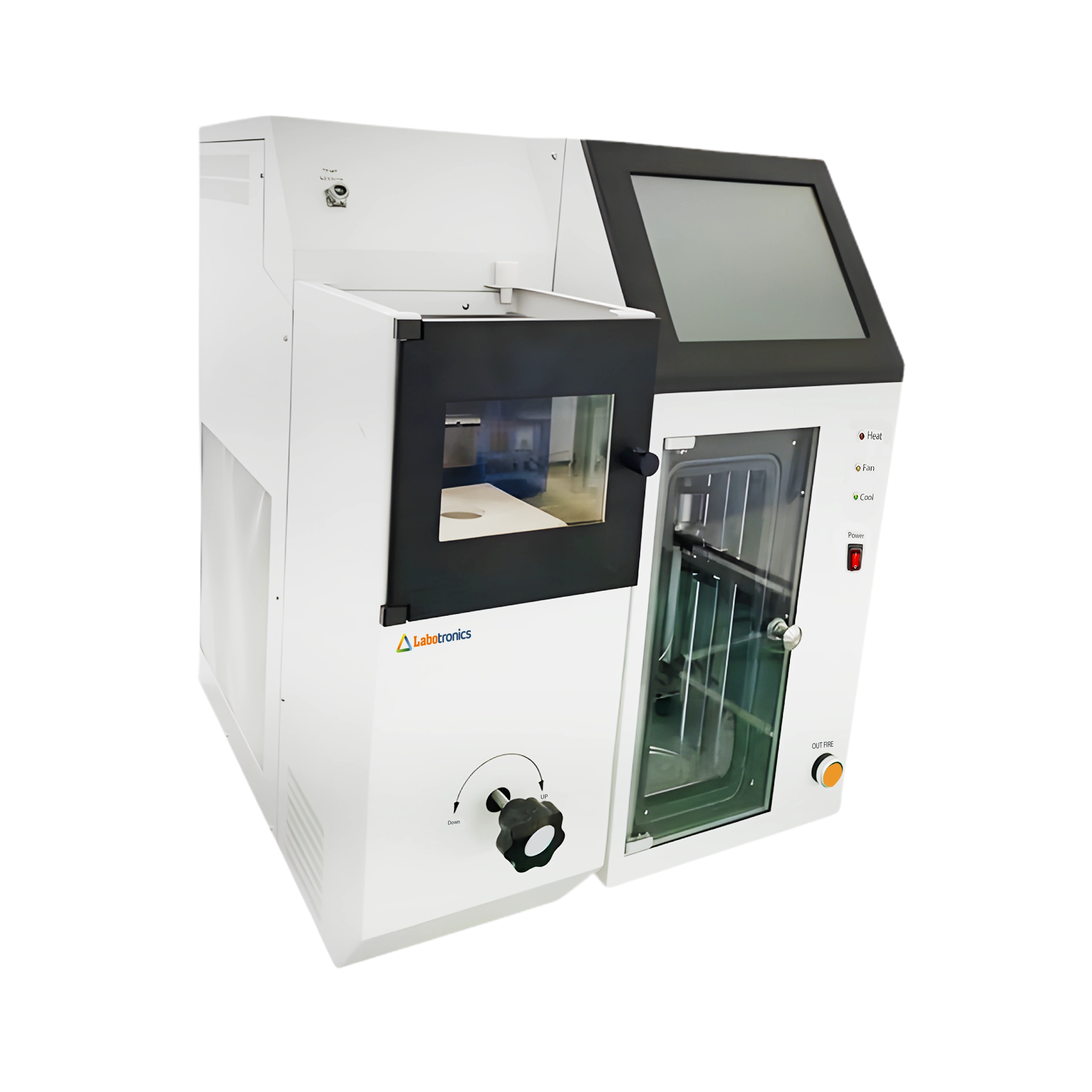

Automated Distillation Tester LB-11ADT

Name: Automated Distillation Tester LB-11ADT
Brand: Labotronics
SKU: LB-11ADT
Rating: 4.9 (518 reviews)

Automated Distillation Tester LB-11ADT operates within a steam temperature range of 0 to 400°C and an oven temperature range of 0 to 500°C. It has a controlled heating system that maintains a flow rate of 95 for uniform heating. Our unit includes a mechanical refrigeration system with a compressor. Users can monitor the distillation process in real-time on a 10-inch touchscreen LCD, improving usability.

Get Quote Download Catalog

Specifications

Steam Temperature Range	0 to 400℃
Oven Temperature Range	0 to 500℃
Refrigeration Temperature Range	0 to 60℃
Refrigeration Accuracy	± 1℃
Temperature Measurement Accuracy	± 0.1℃
Volume Measurement Accuracy	± 0.1 ml
Heating Power	2 kW
Cooling Power	0.5 kW
Power supply	AC 220V ±10%, 50 Hz
Box 01 Dimensions	410 × 280 × 270 mm
Box 02 Dimensions	660 × 590 × 750 mm
Box 01 Weight	6 kg
Box 02 Weight	66 kg

Features

Provides initial and final boiling point temperatures
Automatic atmospheric pressure compensation
Utilizes a high-stepping linear motor for precise tracking
Stores, queries, and prints test results
Automatic shutdown mechanism

Standard Accessories

Temperature Sensors × 1 Pc
125 ml Distillation Flasks ×1 Pc
100ml Measuring Cylinders ×1 Pc

Applications

Automated Distillation Tester LB-11ADT is used for determining the boiling range and distillation characteristics of petroleum products like gasoline, diesel, kerosene, jet fuel, and solvents. It is widely applied in petroleum refineries, fuel testing labs, and quality control departments.

Distillation Rate	2 to 10 ml/min
Volume Range	0 to 102 %
Steam Temperature Range	0 to 400°C
Oven Temperature Range	0 to 500 °C
