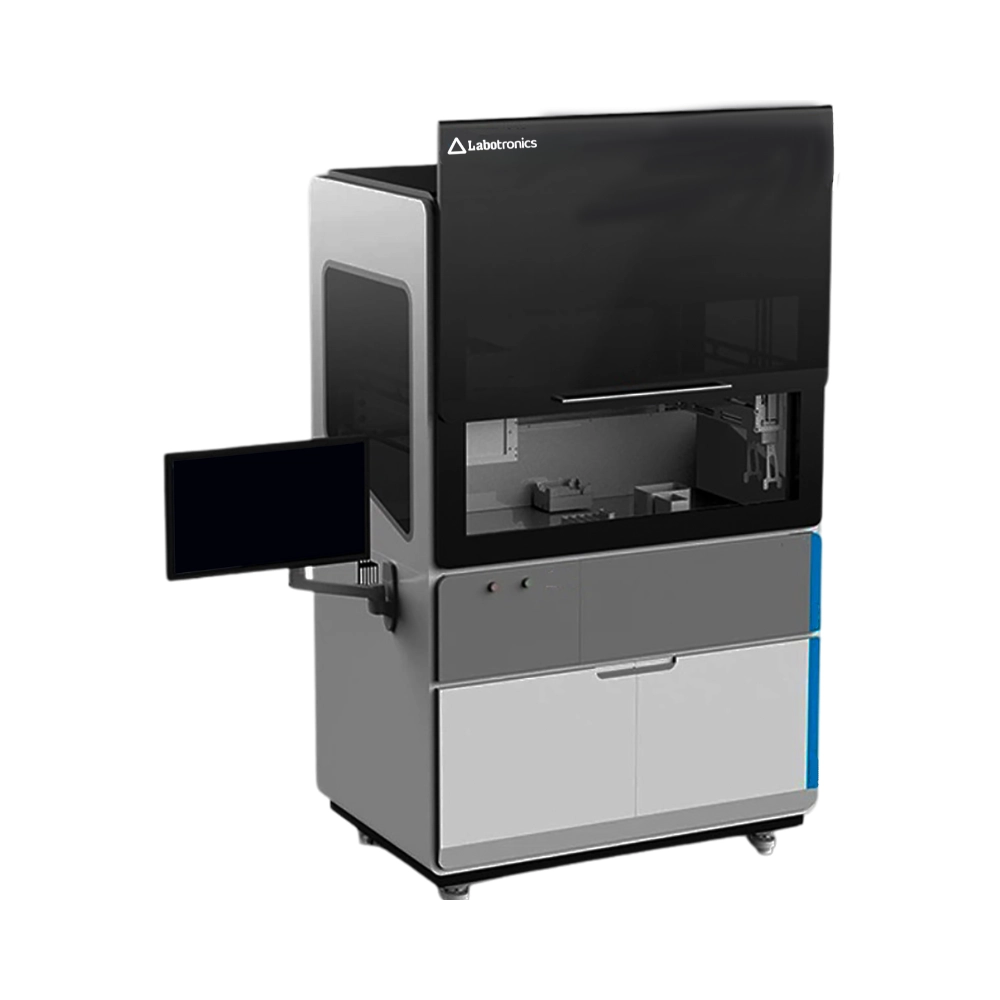

Automated NGS Library Preparation System LB-10NGS

Automated NGS Library Preparation System LB-10NGS

Name: Automated NGS Library Preparation System LB-10NGS
Brand: Labotronics
SKU: LB-10NGS
Rating: 4.9 (537 reviews)

Automated NGS Library Preparation System LB-10NGS is a fully automated unit, capable of handling up to 30 plates simultaneously. It is equipped with a flexible 8-channel pipetting module to handle volumes ranging from 1 to 1000 µL. Our NGS system is integrated with shaking, enzyme labeling, and UV disinfection modules. It features a user-friendly 20-inch touchscreen interface for intuitive navigation and real-time process monitoring.

$ 70812.5

Download Catalog

Specifications

Plate	30 plates
Pipetting Range	1 to1000uL
Pipetting Parameters	5 µL: CV ≤ 3% 10 µL: CV ≤ 2% 100 µL: CV ≤ 1% 200 µL: CV ≤ 1% 1000 µL: CV ≤ 0.5%
Pipetting Precision	5 µL ± 8% 10 µL ± 7% 100 µL ± 4% 200 µL ± 5% 1000 µL ± 4%
Pipetting Technique	Air displacement
Channel	Flexible independent 8-channel pipette module
Compatibility	Standard deep well plates & PCR plates
Refrigeration Module Temperature Range	RT to 6°C
Oscillatory Incubation Module Temperature Accuracy	± 2°C
Temperature Uniformity	± 2°C
Working Temperature Range	15 to 40°C
Relative Humidity	20 to 80%, non-condensing
Air/Vacuum	28 l/min at 6.2 to 6.9 bar 63.5 cmHg at 14 l/min
Functional Module	Thermostatic shaking module Enzyme labelling Plate washer HEPA filtration UV disinfection
Safety Protection	Bin anti-pollution design Ultraviolet disinfection function Filtration function negative pressure system
Display Mode	20-inch touch screen
Interface	3 USB,1 Ethernet port
Power Consumption	3500 W
Power Supply	Input: 100V-120V/200V-240V AC, 50/60Hz Output: 24V
Dimensions	1350 × 840 × 1845 mm
Weight	300 kg

Features

Fully automates NGS library preparation
Minimizes cross-contamination with separate chambers
Enhanced with a PCR instrument
Elevated magnetic rack module

Standard Accessories

Thermostatic Shaking Modules

HEPA Filtration

Optional Accessories

UV Disinfection

Applications

Automated NGS Library Preparation System is highly used in genomic research, agricultural molecular breeding, forensic identification, food safety, disease control and prevention, veterinary medicine, and animal husbandry.

Get Quote

1. What is the main purpose of the Labotronics Automated NGS System?

Labotronics Automated NGS System is designed to streamline and automate library preparation for next-generation sequencing, ensuring accuracy and efficiency across multiple samples.

2. How does automation improve NGS library preparation with Labotronics systems?

Labotronics Automated NGS Systems streamline complex library preparation steps by reducing manual handling, which minimizes errors and ensures higher reproducibility and efficiency.

3. Can the Labotronics Automated NGS System handle different sample types?

Yes, Labotronics Automated NGS Systems provide flexibility to process a wide range of sample types and protocols, making them adaptable to diverse sequencing applications.

4. How do Labotronics Automated NGS Systems ensure pipetting accuracy?

Labotronics integrates advanced liquid handling technology, delivering precise reagent distribution with controlled pipetting ranges to guarantee reliable sequencing results.

5. Is the Labotronics Automated NGS System user-friendly?

Yes, Labotronics Automated NGS Systems are equipped with intuitive software interfaces that allow seamless monitoring, setup, and operation for both experienced and new users.
