Automated solid phase extraction system LB-10SPX

Automated solid phase extraction system LB-10SPX

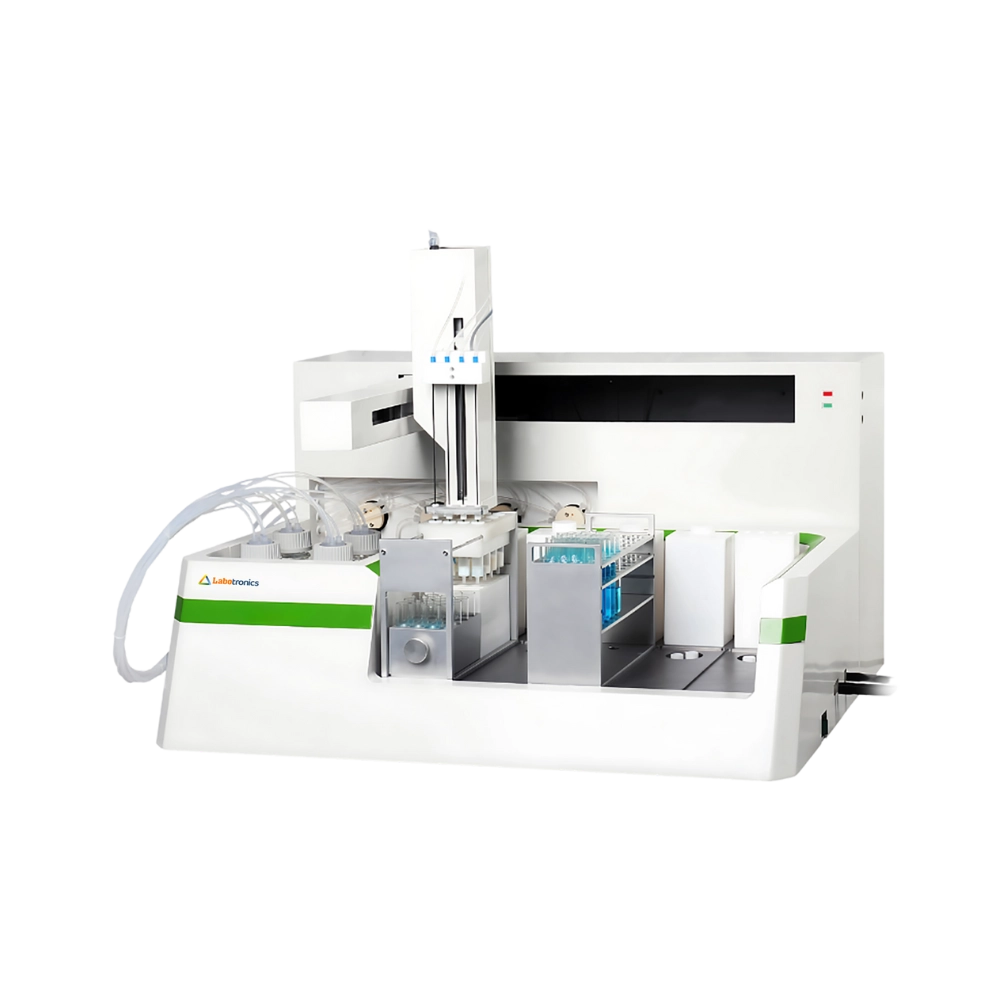

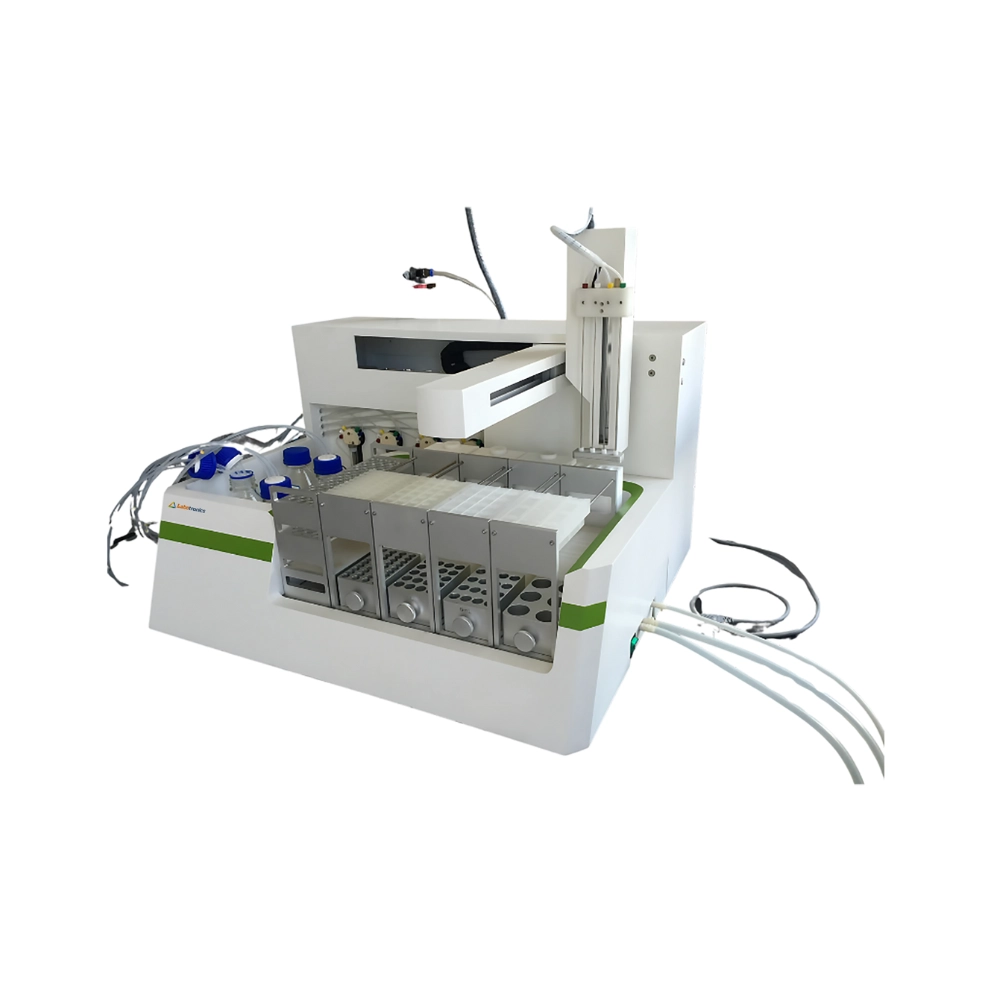

Automated solid phase extraction system LB-10SPX is a unit designed to process more than 24 large volume water samples. Four individual channels can handle four samples simultaneously to improve the efficiency.

Get Quote Download Catalog

Specifications

Working temperature 5 °C to 40 °C
Working humidity 15 % to 10 % RH
Separated solvents 8 to 11
Parallel sample unit 1 to 4
Sample rack 108, 80 , 48 , 24 , 12
Power 220 V to 240 V, 50 Hz, 5A
Dimensions 650 x 810 x 680 mm
Weight 70 kgs

Features

  • The ceramic spool of the multi position valve prevents liquid leakage and corrosion
  • Accessing up to 8 solvents at one time offers more choice and more convenience
  • The probe wash station combines rinsing of the outer wall and inner wall
  • The waste can be collected separately by a waste segregated collection system
  • High precision dual helix screw drive robot arm
  • Liquid level tracking system

Applications

Used to analyze pesticide residues, veterinary residues, food additives, drugs and forensic medicine.

Get Quote

Frequently asked questions For

1. What makes Labotronics Automated SPE Systems more reliable than manual extraction?

Labotronics automated SPE systems employ precise robotic automation at every stage, eliminating inconsistencies from manual handling and ensuring highly reproducible results.

2. How do Labotronics SPE Systems save time in sample preparation?

Labotronics SPE Systems automate multi-step processes like loading, washing, elution, and solvent evaporation, significantly reducing hands-on time and accelerating laboratory workflows.

3. Can Labotronics Automated SPE Systems enhance laboratory safety?

Yes, Labotronics automation reduces direct contact with solvents and hazardous reagents, minimizing the risk of spills, exposure, and contamination.

4. Is it possible to process multiple samples simultaneously with Labotronics SPE Systems?

Absolutely. Labotronics solid phase extraction systems support multiple parallel sample units, increasing throughput and overall laboratory efficiency.

5. How do Labotronics automated SPE Systems handle different solvents?

Labotronics automated SPE Systems are compatible with a wide range of separated solvents, offering flexibility for diverse analytical and research protocols.
