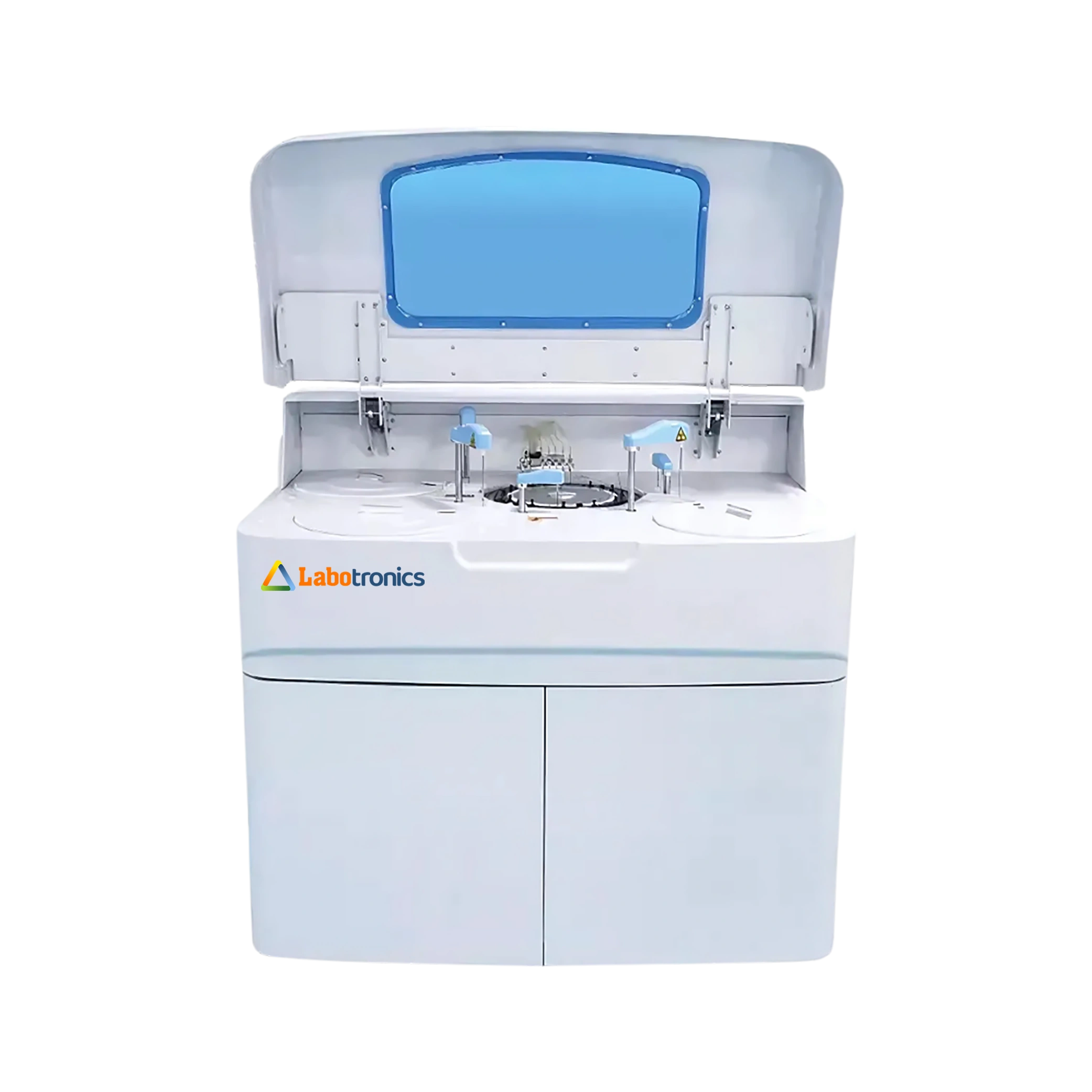

Automatic Biochemistry Analyzer LB-10ABA offers a high throughput of 600 tests per hour, enabling rapid results and efficient workflow. It offers a sample capacity of 90 positions and a reagent capacity of 180 refrigerated positions for smooth and continuous operation. It features an independent mixer, allowing precise and uniform sample-reagent mixing. Our analyzer is equipped with a 7-step automatic washing system, ensuring thorough cleaning and accurate test results.
Get Quote Download CatalogSpecifications
| Throughput | 600 Tests/hour |
| Sample Capacity | 90 positions, built-in barcode system |
| Reagent Capacity | 180 refrigerated positions (R1: 45, R2: 45) |
| Sample Volume | 1 to 70 μl |
| Reagent Volume | 10 to 350 μl |
| Cuvettes | 120 reusable cuvettes, automatic washing |
| Wavelength Range | 340 to 800 nm |
| Absorbance Range | 0 to 3.5 Abs |
| Working Temperature Range | 15 to 30 °C |
| Temperature Control | 37 ± 0.1°C |
| Water Consumption | < 10 L/h |
| Light Source | Halogen-tungsten lamp |
| Software | Windows 7/8/10 |
| Internet Communication | LIS |
| Connectivity | TCP / IP network interface, external printer |
| Power Supply | 220 V ±10%, 50 / 60 Hz / 110V ±10%, 60 Hz, 800 VA |
| Product Dimension | 1170 × 775 × 1145 mm |
| Packaging Dimension | 1358 × 938 × 1387 mm |
| Net Weight | 216 kg |
| Gross Weight | 281 kg |
Features
Multi-method analysis
Automatic probe washing
Precise temperature control
Reusable cuvettes
Flexible calibration
User-friendly software
Low water consumption
Standard Accessories
Reaction Tray
Mixer Probe
Reagent Tray
Sample Probe
Software
Washing Probe
Applications
Automatic Biochemistry Analyzer LB-10ABA is ideal for clinical and biochemical analysis of blood, serum, and other biological samples. It is widely used in hospitals, diagnostic laboratories, and research facilities requiring high-throughput and accurate testing.
Frequently asked questions For
1. What is the Labotronics Automatic Biochemistry Analyzer LB-10ABA?
Labotronics Automatic Biochemistry Analyzer LB-10ABA is a high-throughput system designed to perform rapid and accurate biochemical testing of blood, serum, and other biological samples.
2. What washing system is used in the Automatic Biochemistry Analyzer LB-10ABA?
Labotronics LB-10ABA is equipped with a multi-step automatic washing system that thoroughly cleans reusable cuvettes to minimize contamination.
3. Are the cuvettes in the Labotronics LB-10ABA reusable?
Yes, Labotronics LB-10ABA uses durable, reusable cuvettes combined with an automatic washing function, helping reduce consumable costs.
4. What is the main purpose of using a Labotronics Automatic Biochemistry Analyzer?
Labotronics Automatic Biochemistry Analyzers are designed to perform precise and automated analysis of biochemical parameters in blood and other bodily fluids, supporting diagnostics in clinical, research, and pharmaceutical laboratories.
5. How do Labotronics Automatic Biochemistry Analyzers minimize human error during sample analysis?
Labotronics automatic biochemistry analyzers are equipped with advanced liquid detection probes that ensure accurate sample aspiration, significantly reducing the risk of pipetting errors and cross-contamination.
6. How do Labotronics Biochemistry Analyzers support long-term reliability in clinical settings?
Labotronics biochemistry analyzers are designed with durable components, self-cleaning systems, and automated maintenance cycles that minimize downtime and extend instrument lifespan.
7. Are Labotronics biochemistry analyzers suitable for high-throughput environments?
Yes, Labotronics Automatic Biochemistry Analyzers are built for high-throughput environments, offering fast processing speeds, large data storage, and automated features to ensure efficient and reliable performance in busy clinical and research labs.
8. Do Labotronics Automatic Biochemistry Analyzers provide real-time data monitoring and reporting?
Yes, our automatic biochemistry analyzers feature intelligent software that provides real-time monitoring, visual data representation, and automated report generation for faster and more informed diagnostic decisions.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Sample Volume | 100 µL |
| Operating Temperature | 37 °C |
| Temperature Drift | ± 0.3 °C |
| Absorbance Resolution | 0.001 Abs |
| Throughput | Without ISE: 800 T/hr With ISE: 980 T/hr |
| Sample capacity | 104×2 position, Dual sample tray |
| Reagent capacity | 100 positions, R1:50, R2: 50, Non-stop 2 to 8°C refrigeration |
| Sample volume | 1 to 100 µl, 0.1 µl/step |
