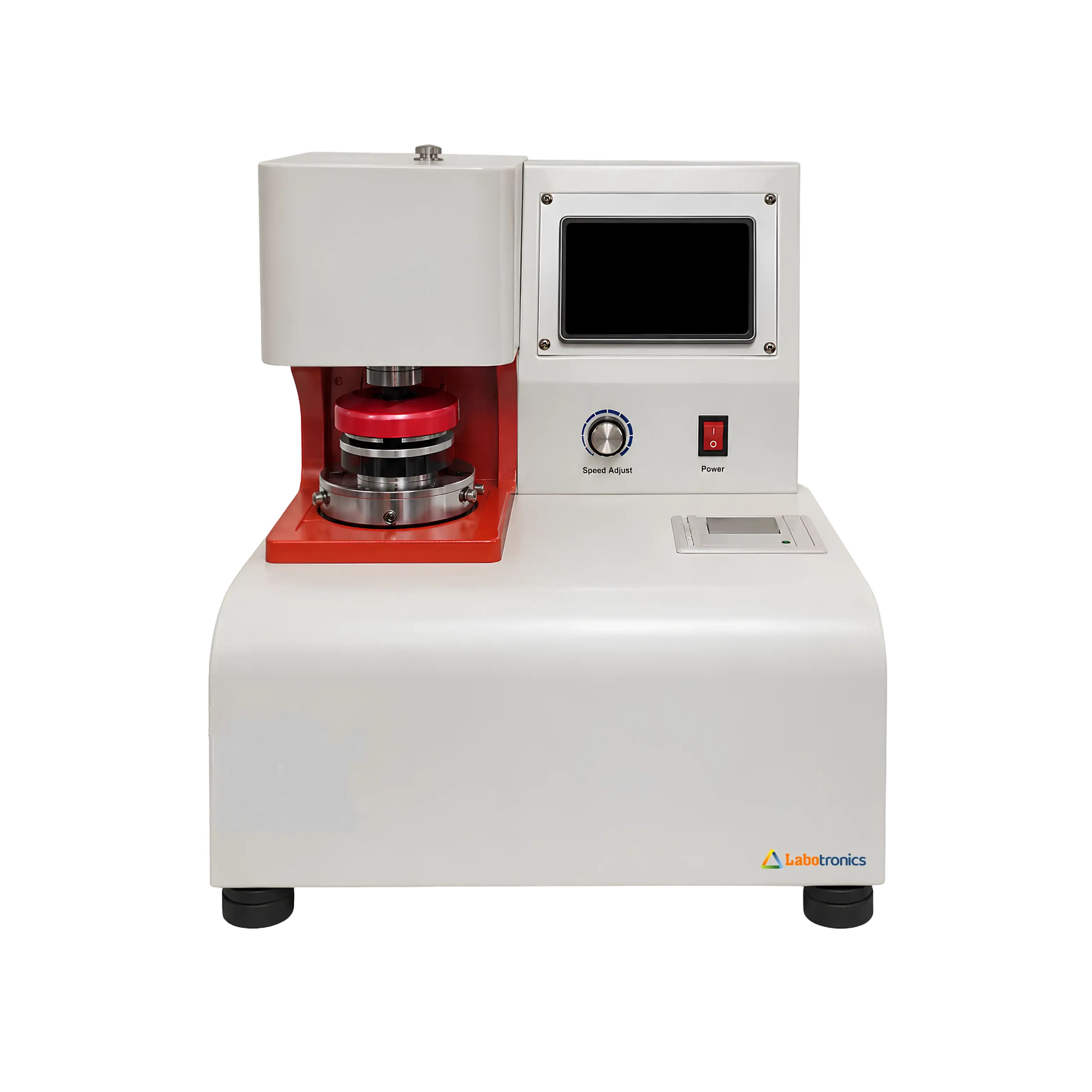

Bursting Strength Tester LB-11BST measures the pressure required to burst a test specimen. This burst testing machine offers a 0–35 kg/cm² pressure range with 0.1 kg/cm² accuracy and uses a pressure transducer for precise measurement. It features a 170 ± 10 ml/min compression speed, clamping force above 690 kPa, and Ø31.5 mm clamp opening. Controlled hydraulic pressure and consistent clamping support accurate and repeatable bursting strength measurements.
$ 3012.5
Download CatalogSpecifications
| Capacity | High Pressure: 0–100 kg/cm² |
| Accuracy | 0.1 kg/cm² |
| Pressure Range | 0–35 kg/cm² |
| Compression Speed | 170 ± 10 ml/min |
| Clamping Force | >690 kPa |
| Unit | kg/cm² |
| Oil | Glycerine: 85%; Distilled Water: 15% |
| Sensor | Pressure Transducer |
| Clamp Opening | Ø31.5 mm |
| Motor | AC 220 V, 90 W |
| Display | Digital Display |
| Power Supply | 1 Phase, AC 220 V, 1 A |
| Power | Approx. 150 W |
| Dimension (L × W × H) | Approx. 530 × 235 × 570 mm |
| Net Weight | Approx. 65 kg |
Features
Applications
Bursting Strength Tester LB-11BST is used to check the bursting strength of materials by applying controlled pressure until the specimen bursts. It supports routine testing and quality checks in packaging, paper and cardboard, textile, leather, and material testing industries.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | High pressure 0 to 100 kg/cm2 |
| Accuracy | ±0.5% |
| Pressure range | 250 to 5600 kPa |
| Compression speed | High pressure 170±10 ml/min |
| Clamping force | >690 kPa |
