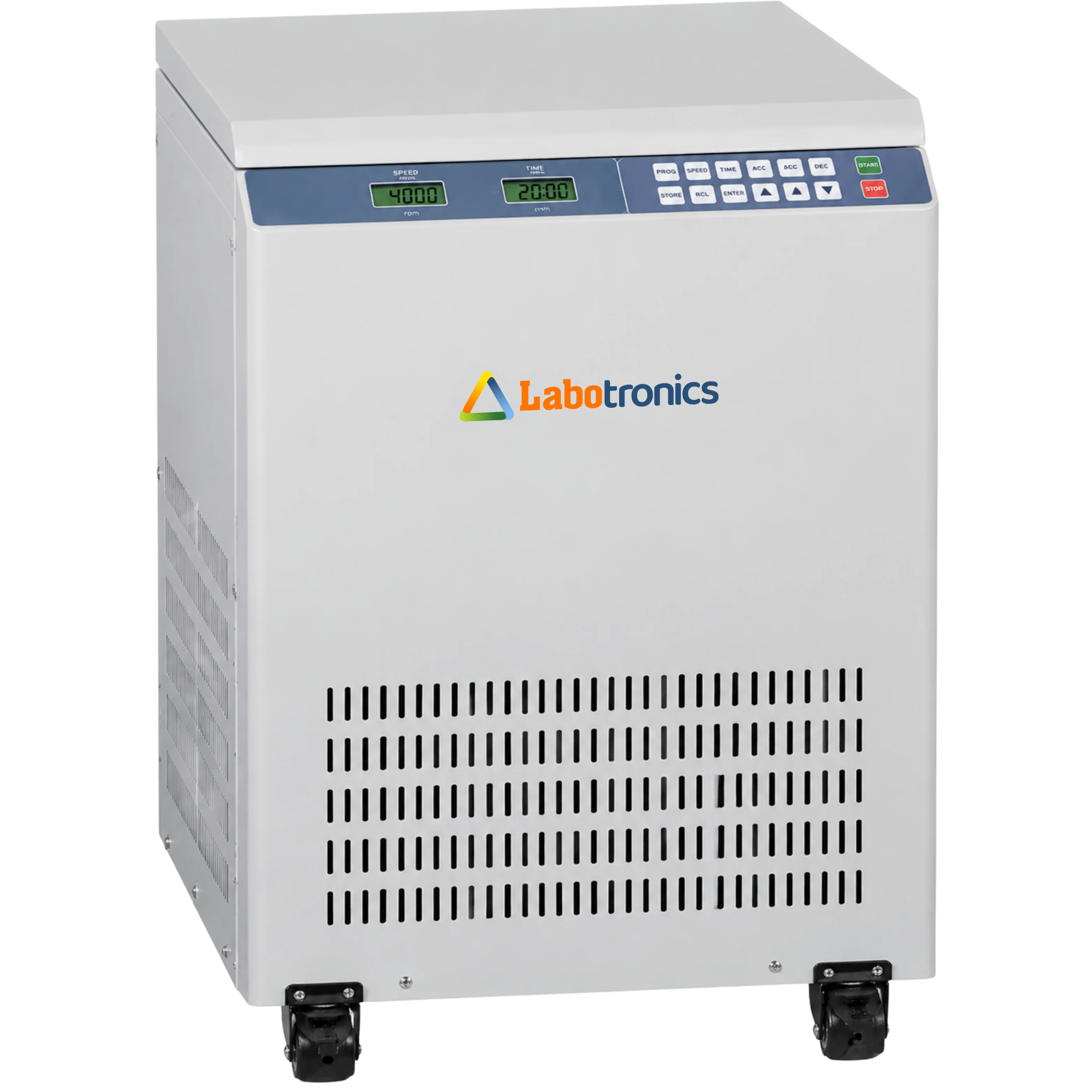

High speed refrigerated centrifuge LB-31HRC Catalog

High speed refrigerated centrifuge LB-31HRC is a microcomputer controlled centrifuge with high refrigeration efficiency. Features an electric door that provides better safety. Digitalized LCD panel for viewing ongoing parameters with simultaneous regulation of speed and time. The parameters can be changed anytime during the process without any downtime.

Max speed	18000 rpm
Max RCF	23846 x g
Speed accuracy	± 100 rpm
Temperature range	-20 °C to -40 °C
Temperature accuracy	± 2 °C
Noise	≤ 55 dB
Time range (hh:mm:ss)	1 min ̴ 99 : 99 : 59
Power supply	AC 220 V 50 Hz
Power	2000 W
Dimensions	660 x 500 x 855 mm
Weight	69 kgs

• Nine ascending and descending rate selection mode
• Ten work mode options that can free programming call
• Double synchronous display screen
• Full steel structure with stainless steel centrifugal cavity
• Two optional timing mode with easy switching options
• Magnetic locks and double lock rod design doors
• AC frequency conversion motor drive
• Automatic identification of rotor

Used for handling larger sample sizes at high angular velocities. They are ideal for a wide range of separation tasks used in the cell culture and clinical sectors involving DNA, RNA, viruses, proteins and more.

Model	Max speed	Max RCF	Rotor capacity
Angle rotor 01	18000 rpm	18824 x g	24 × 0.2 ml
Angle rotor 02	18000 rpm	23846 x g	24 × 0.5 ml
Angle rotor 03	18000 rpm	23182 x g	12 × 2 ml
Angle rotor 04	16000 rpm	20049 x g	24 × 2 ml
Angle rotor 05	16000 rpm	17459 x g	12 × 5 ml
Angle rotor 06	14000 rpm	16327 x g	12 × 7 ml
Angle rotor 07	12000 rpm	13314 x g	12 × 10 ml
Angle rotor 08	12000 rpm	14107 x g	8 × 15 ml
Angle rotor 09	14000 rpm	24104 x g	48 × 0.5 ml
Angle rotor 10	14000 rpm	20160 x g	36 × 1.5 ml / 2.2 ml
Angle rotor 11	11000 rpm	13528 x g	6 × 50 ml
Angle rotor 12	10000 rpm	10084 x g	6 x 100 ml
Angle rotor 13	14000 rpm	13367 x g	8 × 4 × 0.2 ml (PCR special rotor）
ELISA Plate rotor 01	4000 rpm	1932 x g	96 holes ×2
