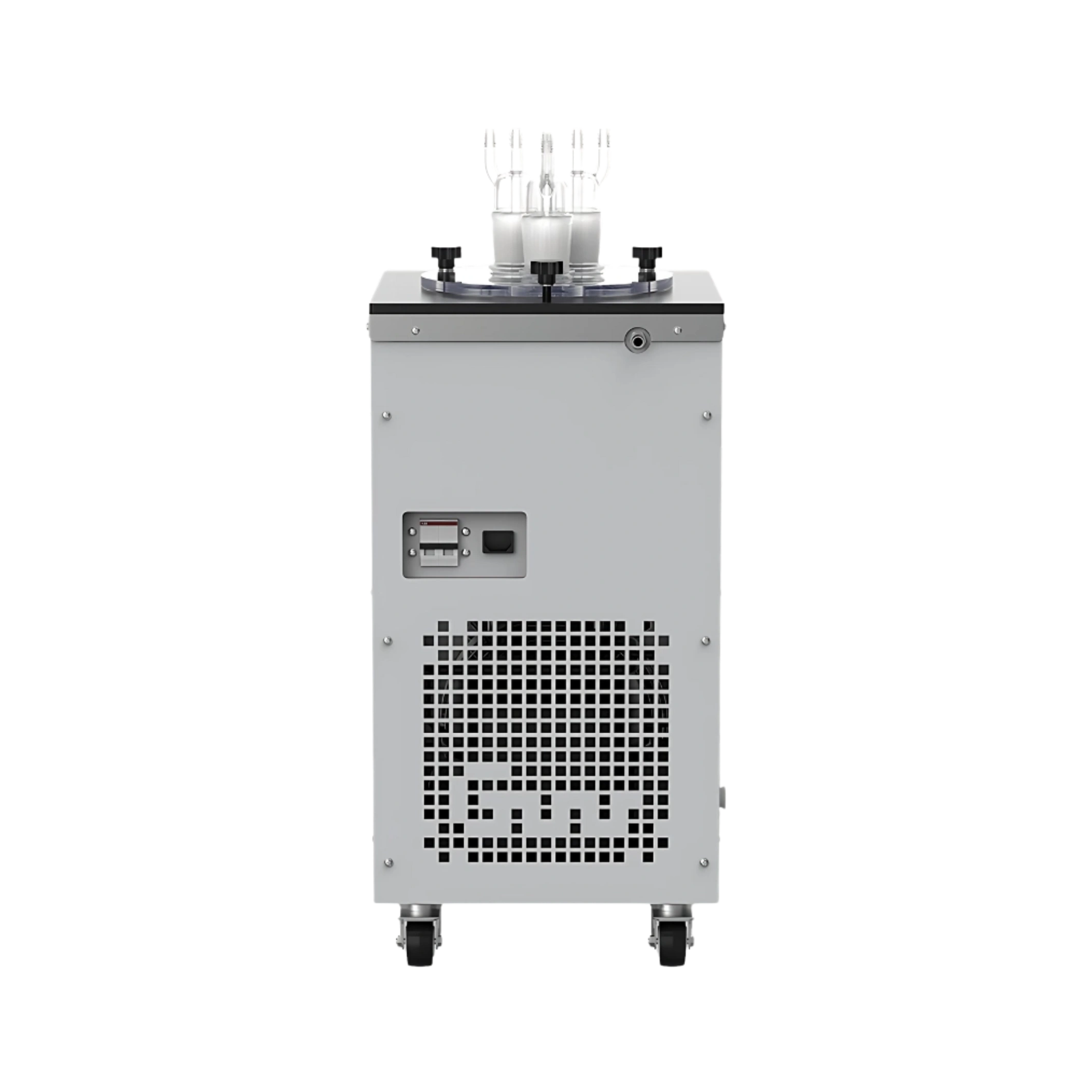

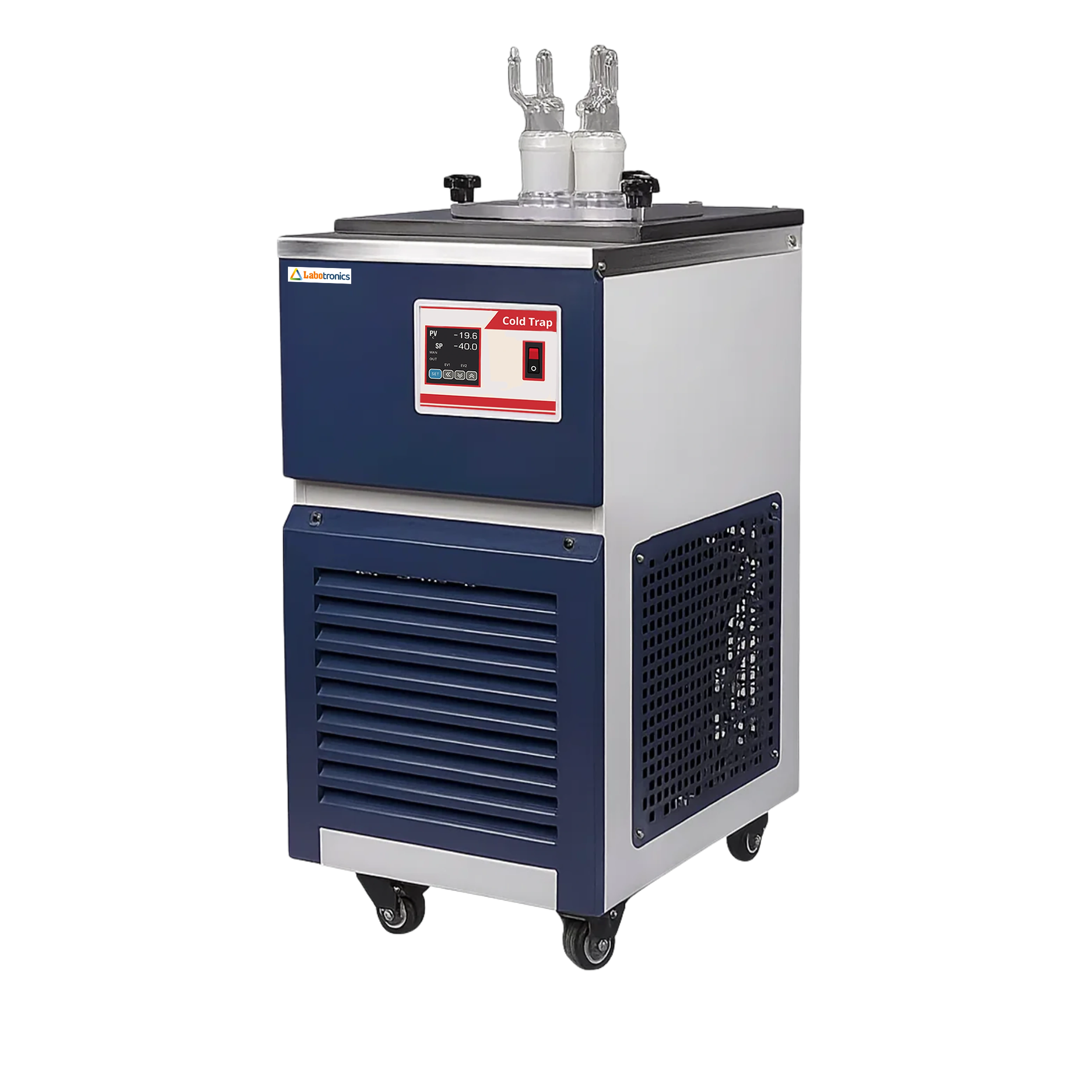

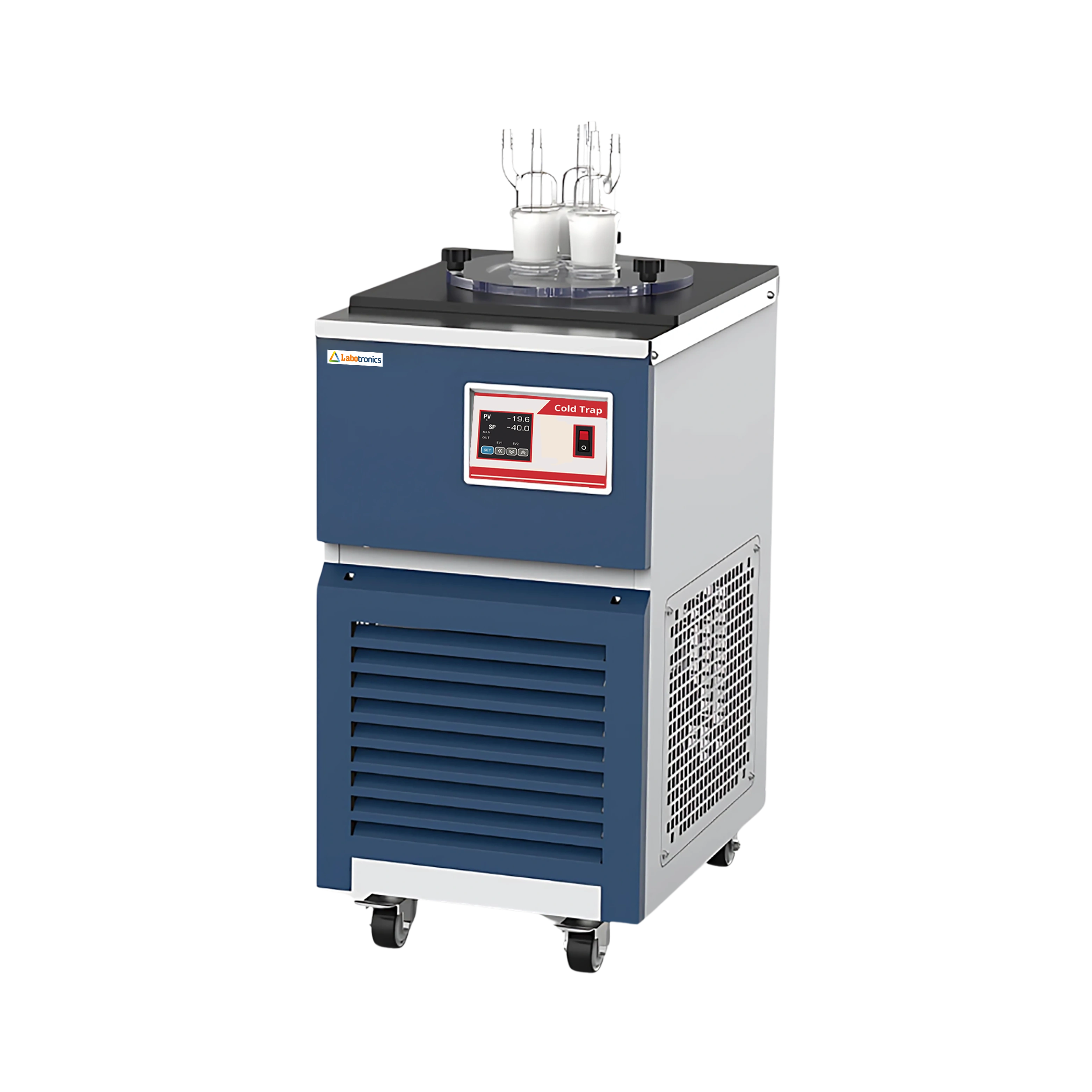

Cold Trap Bath LB-11CTB

Name: Cold Trap Bath LB-11CTB
Brand: Labotronics
SKU: LB-11CTB
Rating: 5 (591 reviews)

Frequently asked questions For Cold Trap Bath

1. What is a Cold Trap Bath used for?

A Cold Trap Bath is designed to condense and capture vapors during processes like rotary evaporation, vacuum drying, and freeze-drying, preventing volatile solvents from reaching and damaging vacuum pumps.

2. Why is a Cold Trap Bath important in laboratory applications?

Labotronics Cold Trap Bath improves vacuum pump life, prevents oil contamination, and ensures safe handling of volatile or corrosive vapors during evaporation or drying processes.

3. What industries commonly use Cold Trap Baths?

Our Cold Trap Baths are widely used in chemical research, pharmaceuticals, food technology, environmental testing, and materials science.

4. What types of solvents can be trapped using a Cold Trap Bath?

Cold Trap Baths effectively capture water vapor, organic solvents, alcohols, acids, and other volatile chemicals, depending on cooling temperature and trap material.

Still have questions?

Helpful Guides: Cold Trap Bath LB-11CTB – Low-Temperature Vapor Condensation Equipment
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!

Capacity	3 bottles
Temperature Range	5 to 35°C
Minimum Temperature Range	-40°C
Vacuum Nozzle	φ12 hose connector
Refrigerant	R404A
Cold Trap Material	3.3 borosilicate glass
Capture Method	Indirect cooling
Cold Trap Size	φ50 × 300mm
Protection Grade	IP20
Safety Functions	Delay, over-current, over-heat, over-pressure
Power Supply	220 to 240V/50Hz
Dimensions	350 × 470 × 800 mm
Net Weight	45kg

Capacity	5L
Temperature Range	5 to 35°C
Minimum Temperature Range	- 40°C
Vacuum Nozzle	KF25
Refrigerant	R404A

Capacity	7 L
Refrigeration Compressor	½ hp
Temperature	-75 °C
Thermocouple	Pt 100 Ω
Power Supply	AC 230 V 50 Hz / 60 Hz
