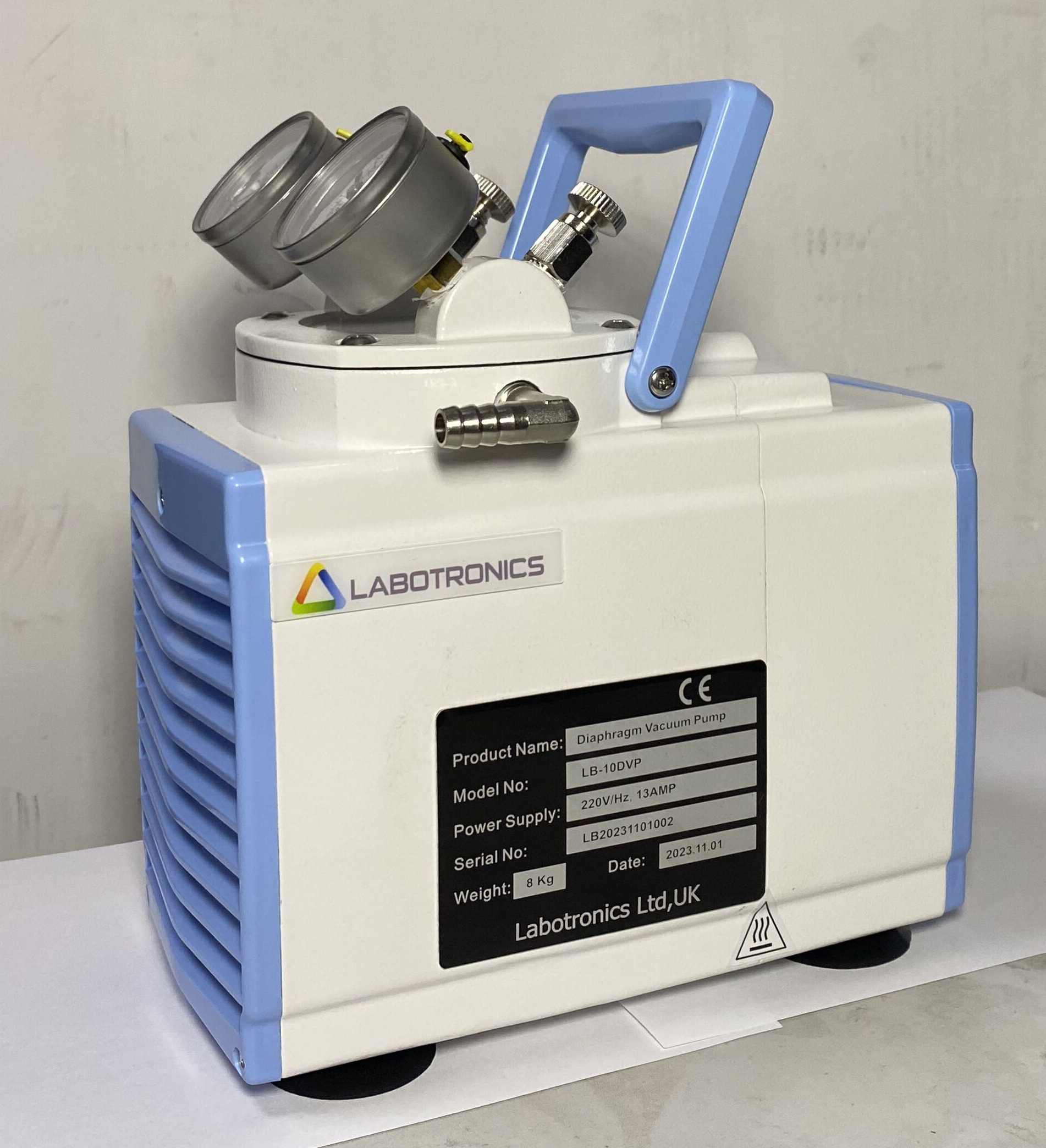

Diaphragm Vacuum Pump LB-10DVP

Name: Diaphragm Vacuum Pump LB-10DVP
Brand: Labotronics
SKU: LB-10DVP
Rating: 4.6 (561 reviews)

Diaphragm Vacuum Pump LB-10DVP with nitrile (NBR) material, has an automatic cooling exhaust system. Enables continuous operation for 24 hours, delivering clean air, gases, or vapors. Well-designed axle ensures stable and quiet operation, with high efficiency. It works independently or as part of a system and requires low maintenance. Well-suited for applications where an oil-free vacuum is necessary. It is reliable and low maintenance equipment.

$ 1587.5

Download Catalog

Specifications

Pumping Speed	30 L/min
Ultimate Pressure	≥ 0.08 MPa
Vacuum	200 mbar
Material of diaphragm pump	Nitrile Rubber (NBR)
Power	160 W
Inlet	φ 6 mm
Outlet	φ 6 mm
Temp. of Body	< 55 °C
Ambient Temp.	7 to 40°C
Pump Head	1
Noise Level	< 60 dB
Power Supply	220 V, 50 Hz
Dimensions	210 × 160 × 235 mm
Weight	8 kg

Features

Eco-friendly displacement pumping without oil
Air exchange bin features filtering system to ensure a clean airflow
Air draft system with self-cooling mechanism
Well-designed axle tree for high quality and efficient operation
Friction-free operating system
Diaphragm pump made of nitrile rubber (NBR) for organic solvent applications
Easy-to-use and user-friendly operations

Applications

Diaphragm Vacuum Pump is widely used for vacuum absorption, filtration and vacuum distillation, vacuum drying to extract, to transfer and to deliver contamination free air and gases across life science , pharmacy, chemistry, food & packaging industry.
