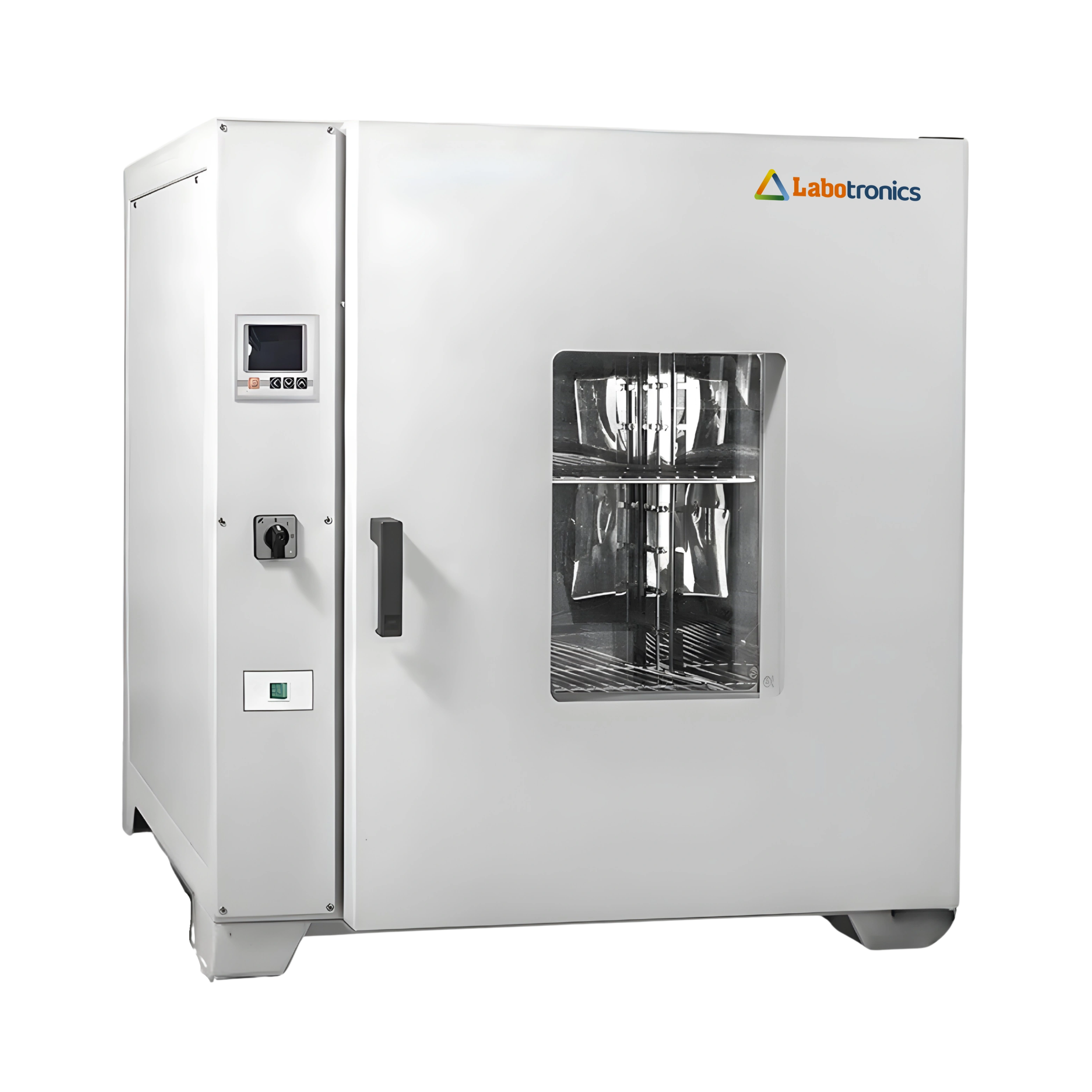

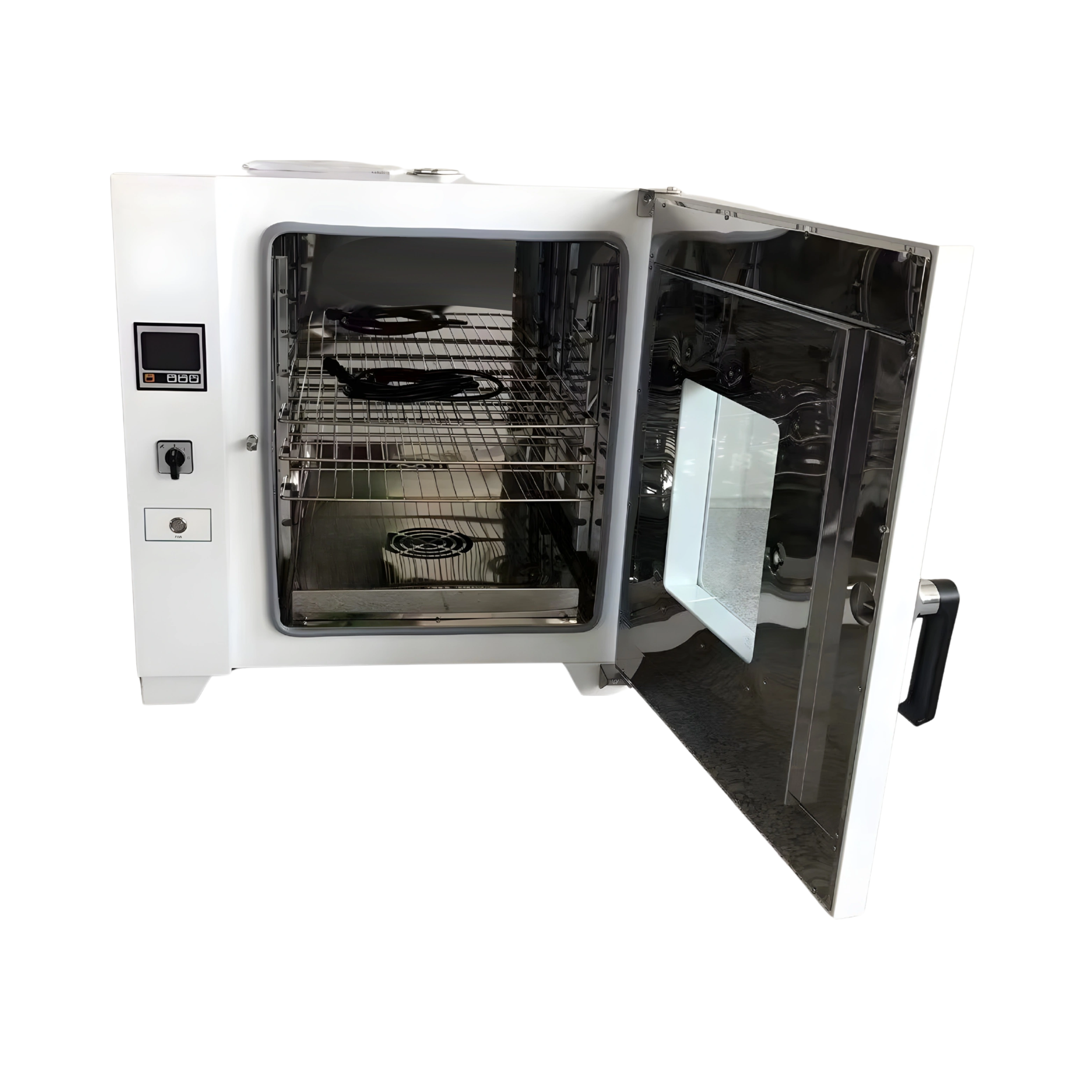

Forced convection drying oven LB-20FCO is a 252 L capacity unit comes with intelligent microcomputer temperature control for RT+10 to 300°C of temperature range. Features forced convection ventilation with duct inlets and switch temperature selection for better temperature uniformity. Designed with steel plate exterior and stainless-steel chamber, has door with silicon-rubber sealing and an observation window.
Request Quote Download CatalogSpecifications
Capacity | 252 L |
Temperature range | RT+10 to 300°C |
Temperature fluctuation | ± 1°C |
Temperature uniformity | ± 2.5°C |
Controller | Microcomputer |
Display | LCD |
Exterior material | High quality steel plate |
Interior material | Stainless-steel |
Shelves | 2 pc |
Power supply | AC 220 V 50 Hz |
Power | 3500 W |
Internal dimension (W×D×H) | 600×600×700 mm |
External dimension (W×D×H) | 880×730×950 mm |
Packaging dimension (W×D×H) | 1000×860×1100 mm |
Net weight | 110 kg |
Gross weight | 150 kg |
Features
Applications
Forced convection drying oven is used for drying, baking, wax melting and sterilization across industries, mining, laboratories, research institutes, forensic science etc.
Optional Accessories
Temperature controller
Printer
RS485 interface and software
Motaher Hossain
7 months ago
Regi Thomas
8 months ago
Chamber volume | 43 L |
Number of shelves | 9 |
Inner chamber size ( W x L x H ) | 350 x 350 x 350 mm |
Temperature range | RT +10 °C to 250 °C |
Chamber volume | 71 L |
Number of shelves | 13 |
Inner chamber size ( W x L x H ) | 450 x 350 x 450 mm |
Temperature range | RT +10 °C to 250 °C |
Chamber volume | 136 L |
Number of shelves | 17 |
Inner chamber size ( W x L x H ) | 550 x 450 x 550 mm |
Temperature range | RT +10 °C to 250 °C |
Chamber volume | 225 L |
Number of shelves | 21 |
Inner chamber size ( W x L x H ) | 600 x 500 x 750 mm |
Temperature range | RT +10 °C to 250 °C |
Capacity | 252 L |
Temperature range | RT+10 to 300°C |
Temperature fluctuation | ± 1°C |
Temperature uniformity | ± 2.5°C |
