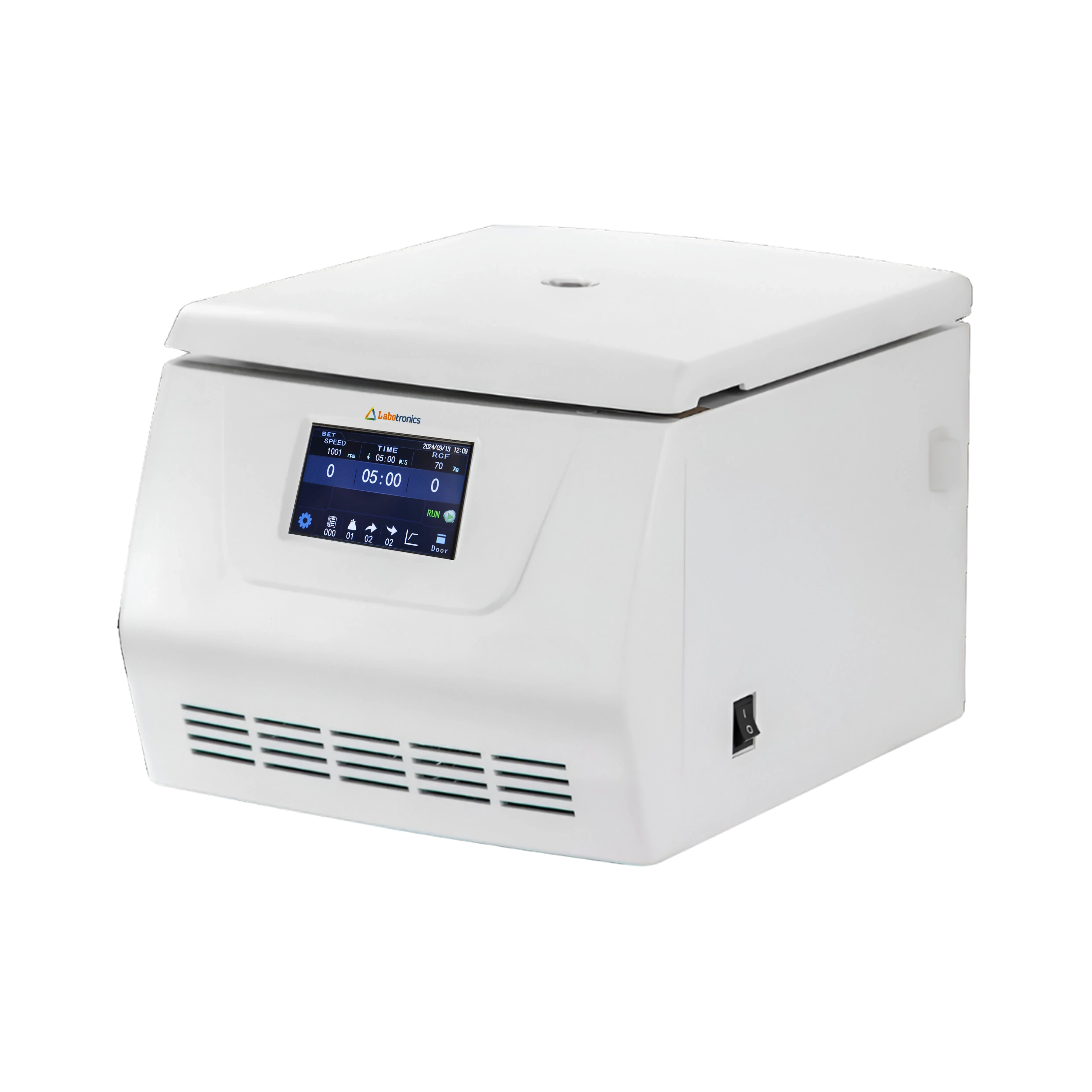

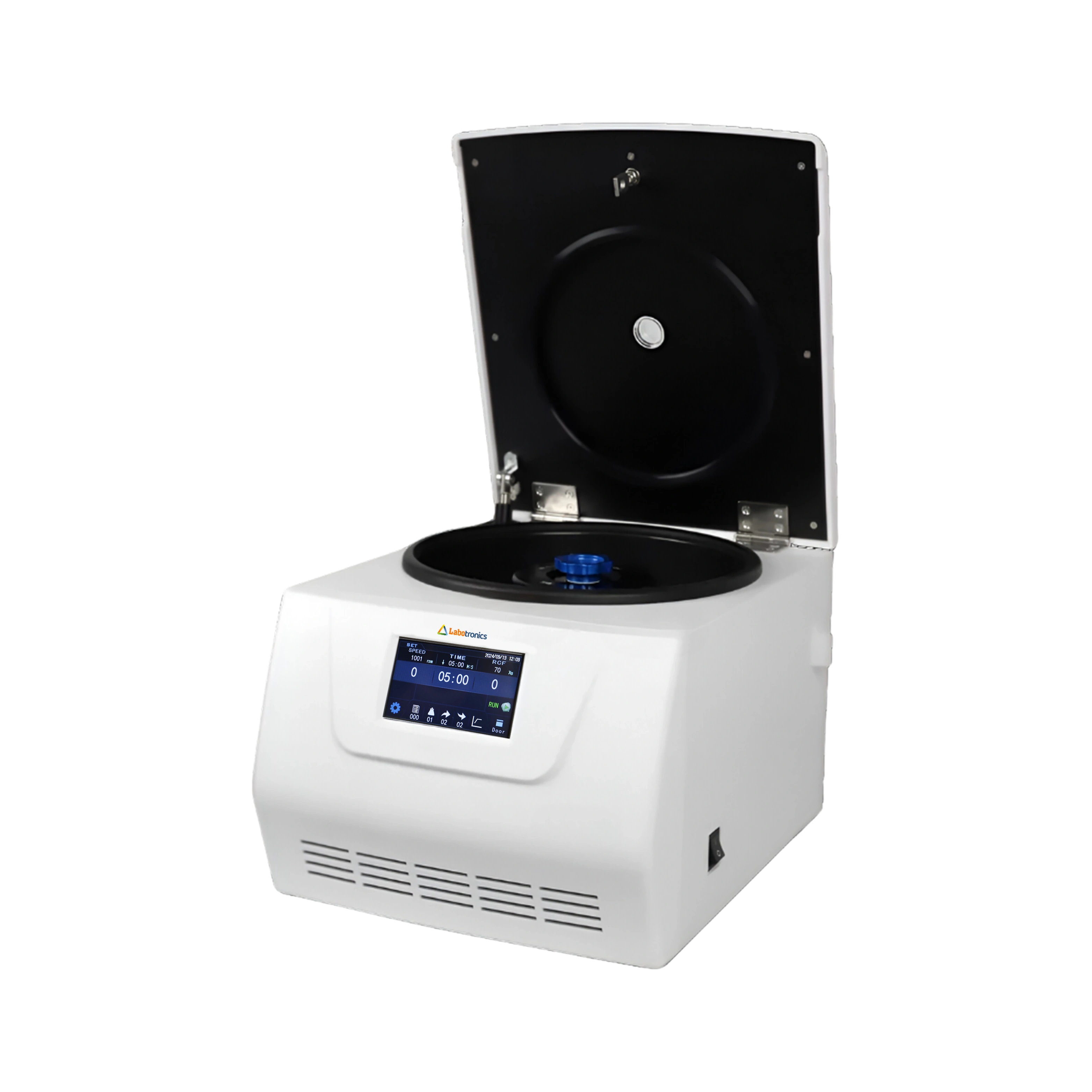

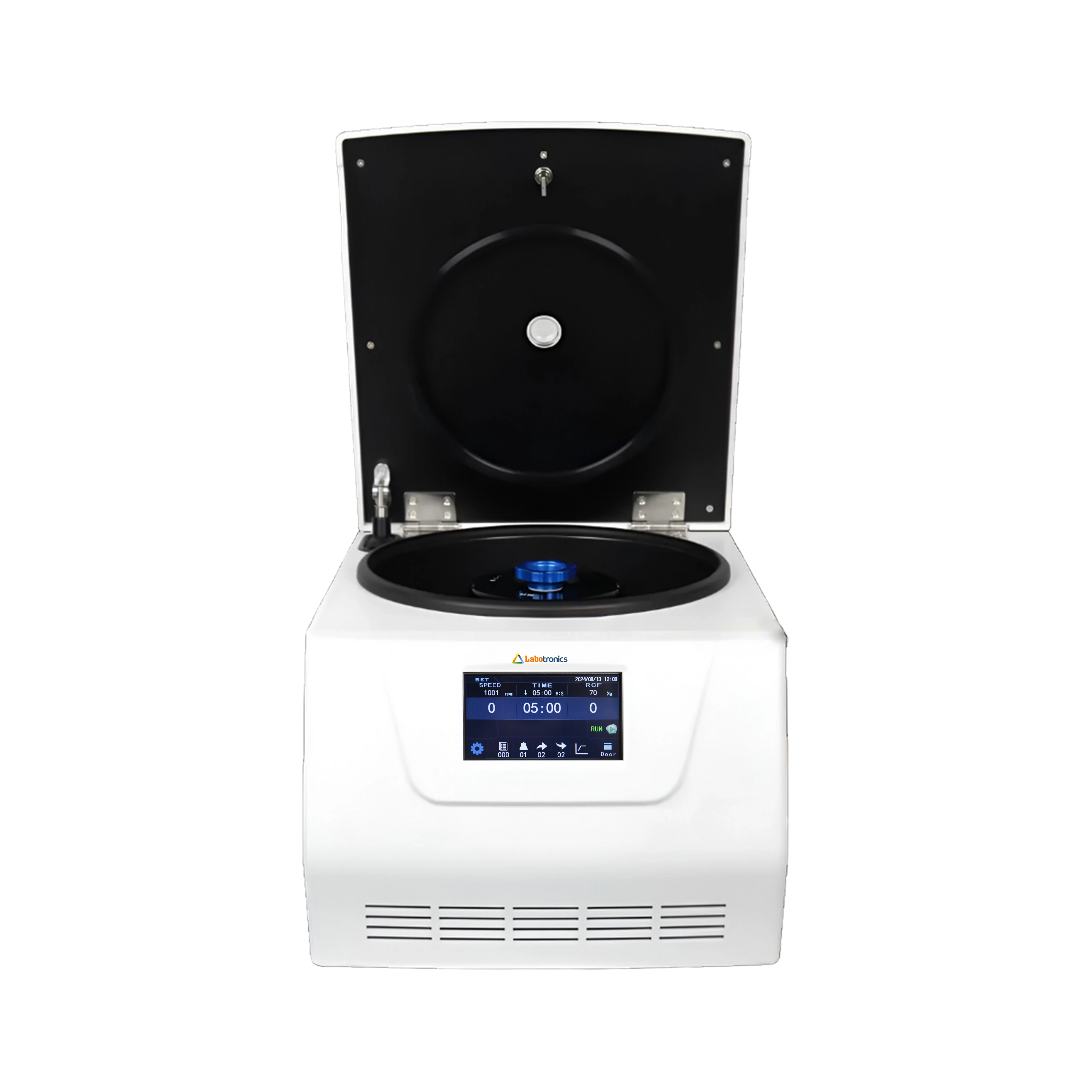

High Speed Centrifuge LB-11HSC operates at a maximum speed of 16,500 rpm for efficient centrifugation of various samples. It provides a maximum RCF of 24,814 × g, ensuring the effective separation of multiple components. It features a multi-stage centrifugation mode, supporting up to 5 stages for customized protocols. Our High Speed Centrifuge is equipped with a touchscreen LCD for easy data monitoring.
$ 2250
Download CatalogSpecifications
| Maximum Speed | 16500 rpm |
| Maximum RCF | 24814 × g |
| Maximum Capacity | 6 × 100 ml |
| Speed Accuracy | ± 10 rpm |
| Timer Range | 1s to 99h 59m 59s |
| Noise Level | ≤ 60dB(A) |
| Power Consumption | 500W |
| Dimension | 440 × 360 × 315 mm |
| Weight | 29 kg |
Features
Applications
High Speed Centrifuge LB-11HSC is used for separating components in samples. It is commonly used in biological, chemical, and medical laboratories.
Rotor Selections
| Rotor Type | Capacity | Maximum Speed | Maximum RCF |
| Fixed Angle Rotor 1 | 12 × 1.5/2.2 mL | 16,500 rpm | 19,053 × g |
| Fixed Angle Rotor 2 | 6 × 10 mL | 16,000 rpm | 19,004 × g |
| Fixed Angle Rotor 3 | 24 × 1.5/2.2 mL (aerosol tight) | 16,000 rpm | 24,814 × g |
| Fixed Angle Rotor 4 | 12 × 5 mL | 15,000 rpm | 18,287 × g |
| Fixed Angle Rotor 5 | 36 × 1.5/2.2 mL | 13,000 rpm | 15,625 × g |
| Fixed Angle Rotor 6 | 12 × 10 mL | 13,000 rpm | 15,625 × g |
| Fixed Angle Rotor 7 | 6 × 30 mL | 13,000 rpm | 14,945 × g |
| Fixed Angle Rotor 8 | 8 × 15 mL | 13,000 rpm | 14,945 × g |
| Fixed Angle Rotor 9 | 8 × 0.2 mL PCR strip | 13,000 rpm | 14,643 × g |
| Fixed Angle Rotor 10 | 6 × 50 mL conical bottom | 12,000 rpm | 15,712 × g |
| Fixed Angle Rotor 11 | 6 × 50 mL round bottom | 12,000 rpm | 15,712 × g |
| Fixed Angle Rotor 12 | 48 × 1.5/2.2 mL | 12,000 rpm | 15,712 × g |
| Fixed Angle Rotor 13 | 12 × 15 mL | 10,000 rpm | 11,045 × g |
| Fixed Angle Rotor 14 | 24 × 10 mL | 10,000 rpm | 11,045 × g |
| Fixed Angle Rotor 15 | 8 × 50 mL conical bottom | 10,000 rpm | 11,045 × g |
| Fixed Angle Rotor 16 | 4 × 100 mL | 10,000 rpm | 11,045 × g |
| Fixed Angle Rotor 17 | 6 × 100 mL | 8,000 rpm | 7,720 × g |
| Fixed Angle Rotor 18 | 2 × 2 × 48 well plate | 4,000 rpm | 1,538 × g |
Frequently asked questions For High Speed Centrifuge
1. Does the LB-11HSC support programmable multi-stage centrifugation?
Yes, the LB-11HSC allows up to 5 programmable stages per run. Each stage can be set with different speeds, times, acceleration, and deceleration rates. This makes it ideal for complex protocols that require sequential separation steps.
2. How is the control system monitored and managed?

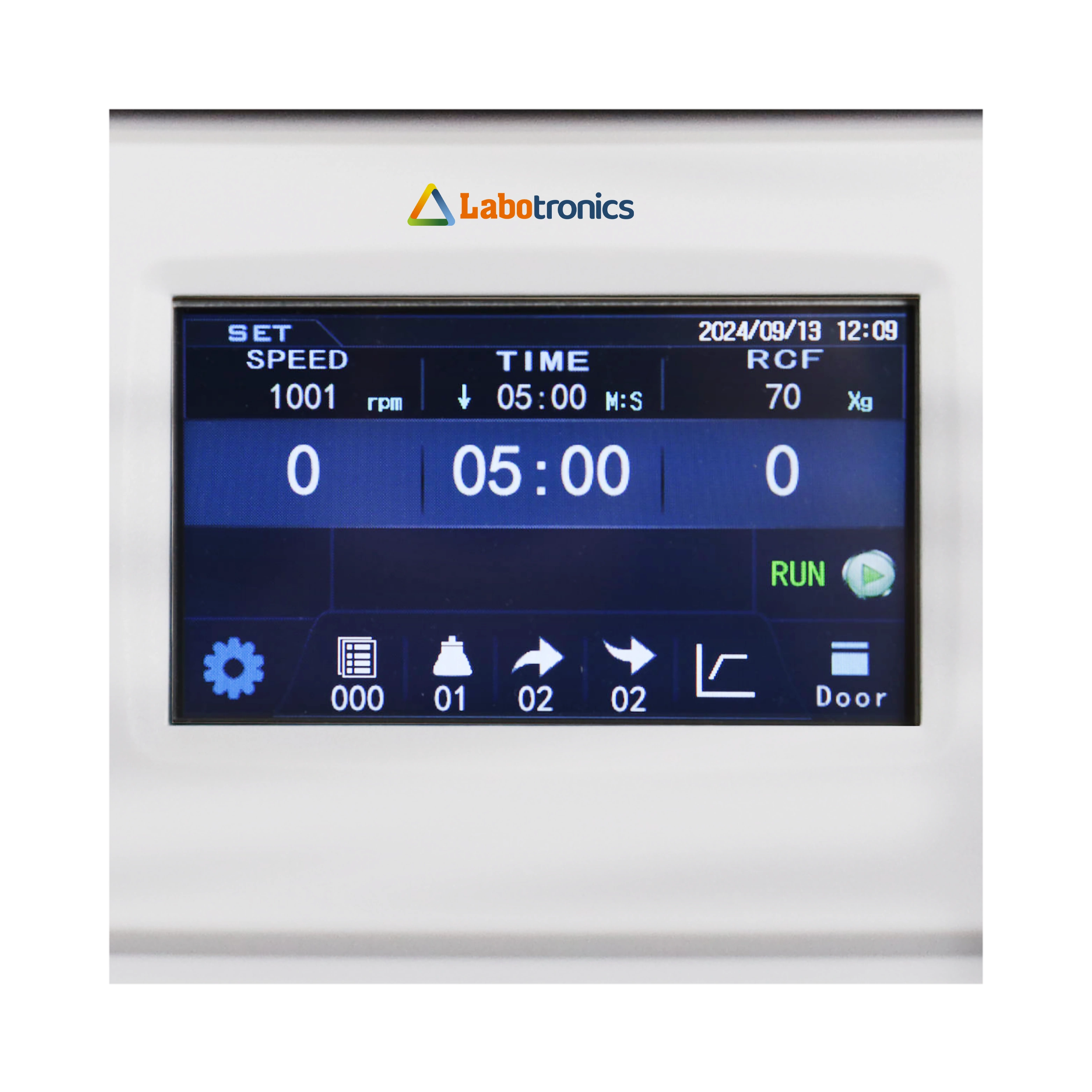

The centrifuge features an intuitive touchscreen LCD that displays real-time data such as speed, time, RCF, and operational status. It allows easy adjustments and ensures full process visibility throughout the run.
3. What safety features are included for continuous lab operation?
The LB-11HSC includes imbalance detection, motorized electronic door locking, and overload protection. These features ensure safe and consistent operation even during high-frequency or extended usage.
4. What kind of space is required to install the LB-11HSC?
With its compact footprint, the centrifuge fits most standard laboratory benches. It requires a stable, vibration-free surface with good ventilation and a nearby compatible power source.
5. How does the LB-11HSC protect sample integrity during centrifugation?
It uses smooth acceleration/deceleration profiles to reduce stress on samples. Imbalance detection halts the run if instability is detected, while the sealed chamber ensures environmental isolation during sensitive operations.
6. What applications are Labotronics High-Speed Centrifuges suitable for?
Labotronics High-Speed Centrifuges are ideal for a wide range of laboratory applications, offering efficient and reliable sample separation for biological, chemical, and environmental specimens.
7. Are these centrifuges customizable for different sample types?
Yes, Labotronics High-Speed Centrifuges are customizable with interchangeable rotors and support for multiple tube sizes, offering flexibility to handle various sample types and volumes
8. How easy is it to operate a Labotronics High-Speed Centrifuge?
These centrifuges feature an intuitive digital display for real-time monitoring and control, making them easy to operate and ideal for both routine and advanced lab tasks.
9. Do Labotronics High-Speed Centrifuges include safety features?
Yes, they come equipped with advanced safety features such as automatic imbalance detection and secure lid locking, ensuring safe and reliable operation in laboratory environments.
