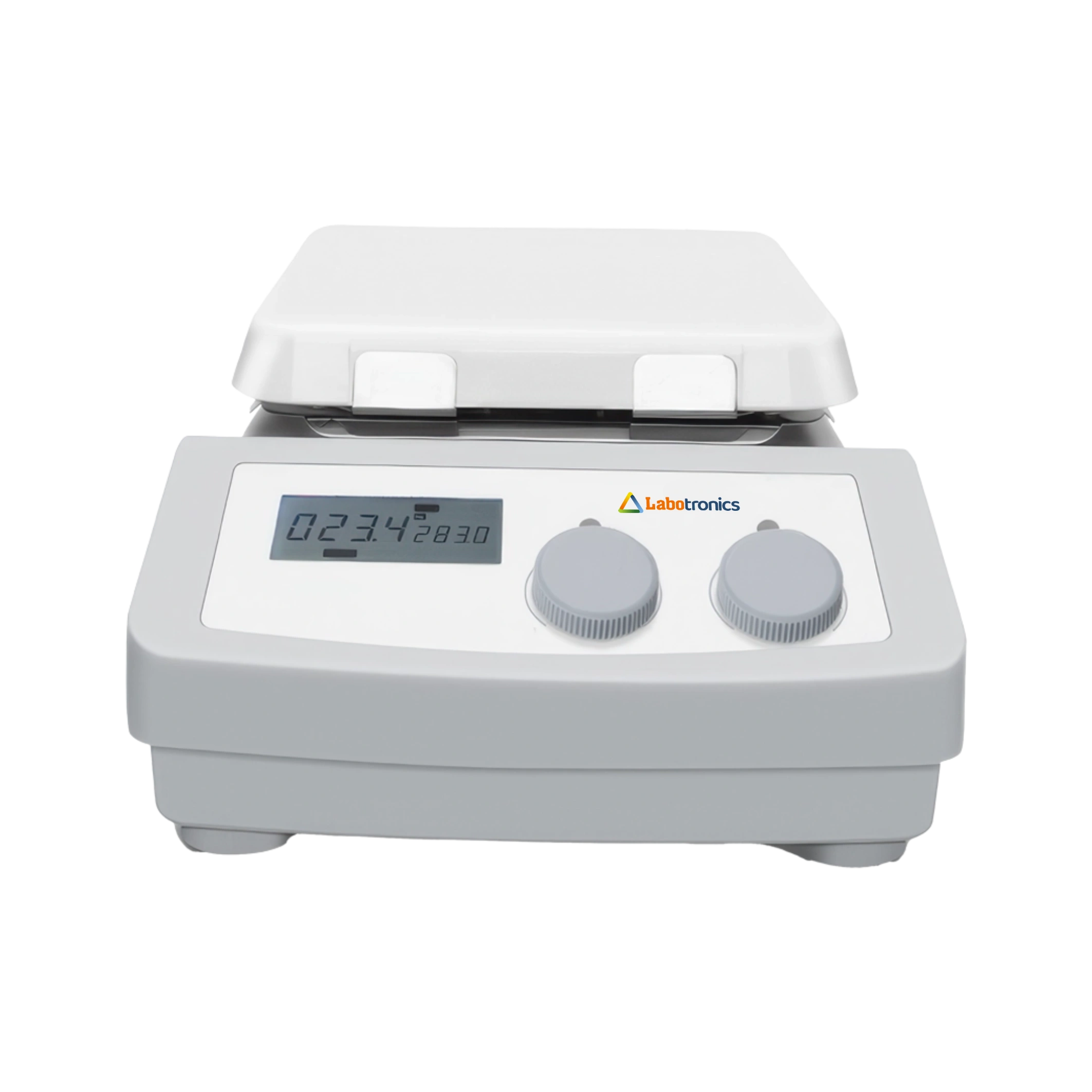

Hotplate Stirrer With Timer LB-34HPS

Name: Hotplate Stirrer With Timer LB-34HPS
Brand: Labotronics
SKU: LB-34HPS
Rating: 4.5 (512 reviews)

Hotplate Stirrer with Timer LB-34HPS is capable of stirring 20L of sample at speeds of up to 1500 rpm. It operates within a temperature range from room temperature to 550°C for a wide range of stirring applications. It features a brushless DC motor for powerful stirring and a built-in PID controller for stable heating. Our stirrer also includes an LCD screen that provides a clear and intuitive display of settings and real-time monitoring.

$ 2162.5

Download Catalog

Specifications

Heating Capacity	20L
Heating Temperature Range	RT to 550°C
Temperature Increment	1°C
Temperature Control Accuracy	± 1°C (< 100°C) ± 1% (> 100°C)
Speed Range	0 to 1500 rpm
Stirring Positions	1
Working Temperature Range	5 to 40°C
Working Humidity	80%RH
External Temperature Sensor	PT1000 (accuracy ± 0.2)
Work Plate Dimension (W × D)	184 × 184 mm (7 inch)
Work Plate Material	Glass Ceramic
Magnetic Bar Length	80 mm
Motor Input Power	18W
Motor Output Power	10W
Heating Output	1000W
Ambient Temperature Range	5 to 40°C
Ambient Humidity	80% RH
Data Connector	RS232
Protection Class	IP21
Power Consumption	1050 W
Power Supply	100-120/200-240V, 50/60Hz
Dimension (W × D × H)	215 × 360 × 112 mm
Weight	5.3kg

Features

Overheating temperature protection
Glass ceramic plate for heat transfer and resistance
External PT1000 temperature control
Dual knobs for easy adjustment
Remote PC control and data transmission

Applications

Hotplate Stirrer with Timer LB-34HPS is used for precise heating and stirring in chemical, biological, industrial, pharmaceutical, material testing, and educational labs.
