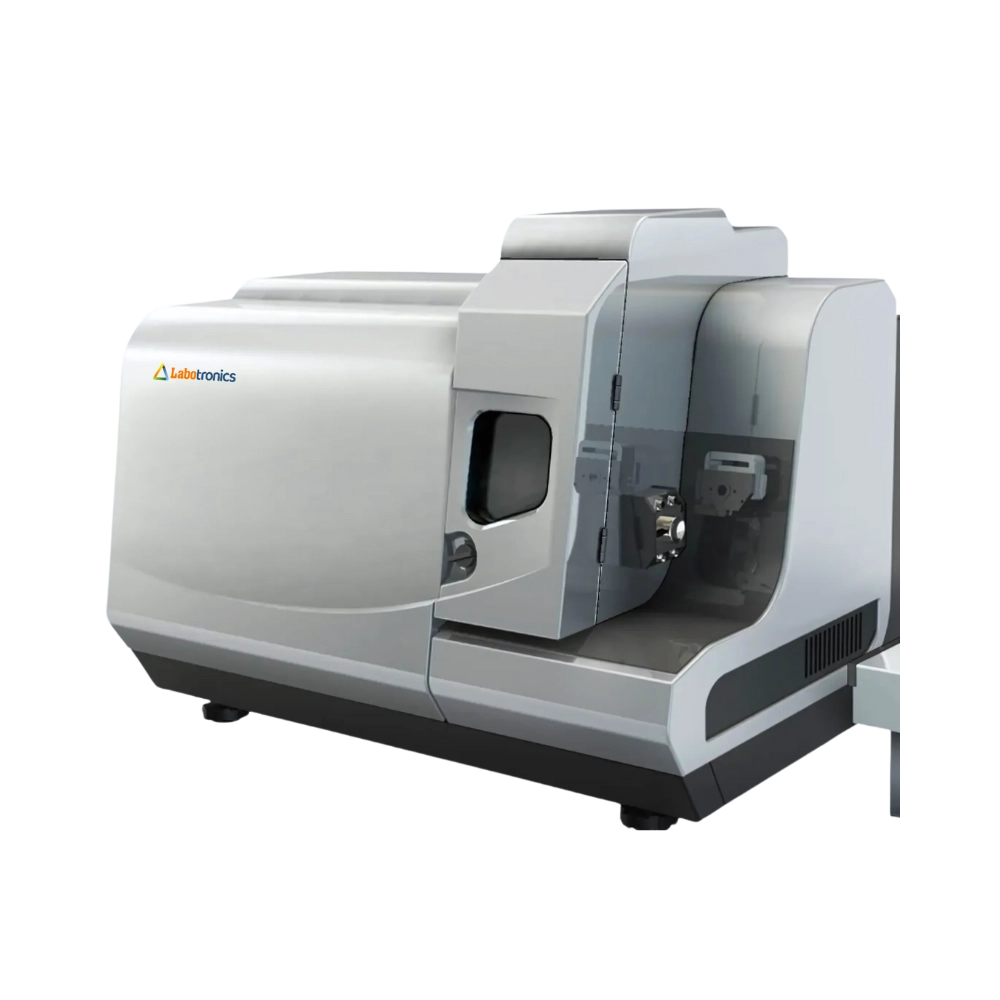

Inductively Coupled Plasma Mass Spectrometer LB-10ICPMS
Inductively Coupled Plasma Mass Spectrometer LB-10ICPMS provides a mass range from 2 to 260 amu for precise analysis of trace elements. It utilizes argon plasma to ionize samples, ensuring high ionization efficiency. It features an ETP detector and hexapole cell, ensuring accurate trace analysis by removing polyatomic interferences. Our spectrometer facilitates automated PC-controlled counting and stable plasma operation for high-sensitivity analysis.
$ 105000
Download Catalog Download ManualSpecifications
| Mass Range | 2 to 260 amu |
| Testing Range | ≥ 108 |
| Sensitivity | Be ≥ 2 × 10⁶ (cps/mg/L) In ≥ 35 × 10⁶ (cps/mg/L) U ≥ 30 × 10⁶ (cps/mg/L) |
| Detection Limit | Be ≤ 10 In ≤ 2 U ≤ 2 (ng/L) |
| Resolution | 0.6 to 0.8 amu |
| Isotope Ratio | ≤ 0.3% (107Ag/109Ag) |
| SNR | ≥ 50 × 10⁶ (Signal-to-Noise Ratio) |
| Quality Axis Stability | ≤ 0.05 amu/24 h |
| Stability RSD | Short term ≤ 3% Long term ≤ 4% |
| Oxide Ion | ≤ 3% |
| Double Charged Ion | ≤ 3% |
| Background Noise | ≤ 2 cps (full quality range) |
| Abundance Sensitivity | ≤ 1 × 10⁻⁶ (low-quality end) ≤ 5 × 10⁻⁷ (high quality end) |
| Plasma Ion Source | Argon plasma |
| Collision Cell | Hexapole collision cell |
| Detector | Electron multiplier - ETP double-mode detector, electron multiplier with dynodes arranged in two parts |
| Mass Spectrometer Unit | Quadrupole mass spectrometer |

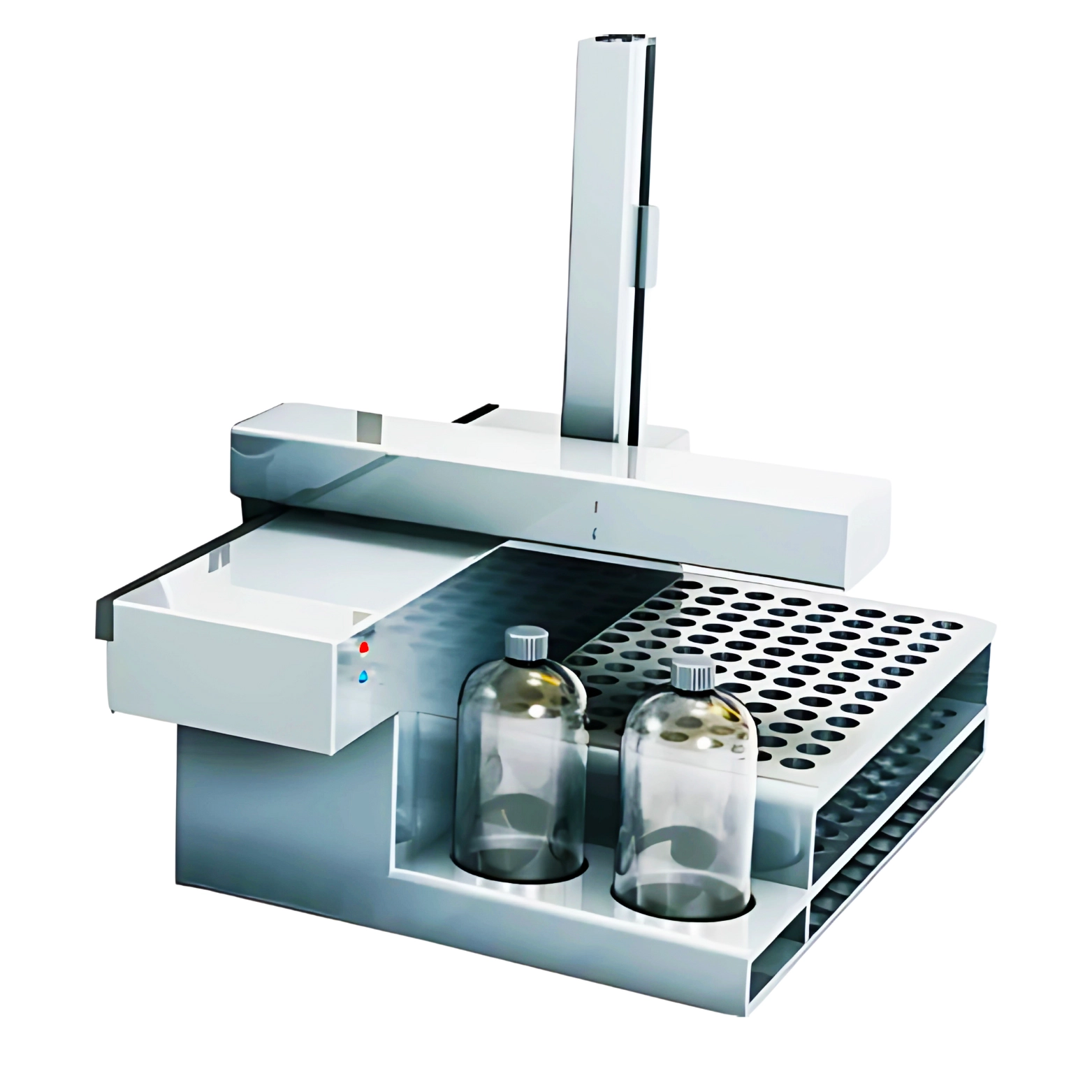

| Autosampler | Total: 250 cups, 50mL (10) + 15mL (240) |
| Gas Used | He/H2 and He/NH3 at 0 to 10mL/min |
| Sample Spray Chamber | Impact bead chamber (electronically cooled), quartz |
| Peristaltic Pump | 3-channel |
| Plasma Torch | One-piece quartz torch, 1.5mm injector |
| Vacuum System | 3 stages, with isolated turbopumps |
| Counting and Analog Switch | PC controlled |
| Chiller Connection Kit | Yes |
| High-Frequency Output | 1.6KW |
| High-Frequency Power Supply | 27 MHz, Solid state |
| Cooling Water | Single-phase 200 to 230 V, 50/60 Hz, 2 kW |
| Power Supply | Single-phase 200 to 240 V ± 10%, 50/60 Hz, 6 Kw |
| Dimension | 1300 × 700 × 800 mm |
| Gross Weight | 400 kg |
Features
- High ionization efficiency
- Ultra-trace detection
- Stable axis calibration
- Flexible sampling options
- Advanced signal processing
- Durable construction
- Low background noise
Standard Accessories
Glove BoxPC Cable
Reducing Valve
Bellows
Radial Spring Clamp
Sealing Ring
PU Tube
Peristaltic Pump Head Hose
Polyurethane Hose
Peristaltic Pump Tubing
Exhaust Pipe
Ethernet Cable
Mechanical Pump
Vacuum Clamp
Plastic Box
Allen Wrench
Ball Allen Wrench
Double-Ended Wrench
Adjustable Wrench
Flat-Blade Screwdriver
Tweezers
Phillips-Screwdriver
Cooling Water Tank
Flash Storage
Optional Accessories
Collision Pool ComponentsAutosampler
Applications
Inductively Coupled Plasma Mass Spectrometer LB-10ICPMS is ideal for detecting trace elements, conducting food safety testing, and analyzing ultra-trace impurities in semiconductor materials. It also plays a crucial role in medical diagnostics and nuclear monitoring of radioactive elements.Frequently asked questions For Inductively Coupled Plasma Mass Spectrometry
1. What is the primary function of a Labotronics ICP-MS spectrometer?
A Labotronics ICP-MS spectrometer is designed for ultra-trace detection of elements in complex samples using argon plasma and mass spectrometry.
2. How does a Labotronics ICP-MS spectrometer achieve high-sensitivity analysis?
Labotronics ICP-MS spectrometers use argon plasma ionization and ETP double-mode detectors to provide precise and repeatable measurements at trace and ultra-trace levels.
3. Can Labotronics ICP-MS spectrometers handle complex or low-concentration samples?
Yes, Labotronics ICP-MS spectrometers are built to analyze low-concentration elements in highly complex matrices, offering reliable results in sensitive applications.
4. Is calibration and sampling flexible in Labotronics ICP-MS spectrometers?
Yes, Labotronics ICP-MS spectrometers support stable calibration and flexible sampling modes, making them adaptable to various laboratory workflows.
5. Are Labotronics ICP-MS spectrometers suitable for nuclear and environmental testing?
Yes, Labotronics ICP-MS spectrometers are ideal for nuclear monitoring, environmental testing, and advanced material science research requiring ultra-trace accuracy.
