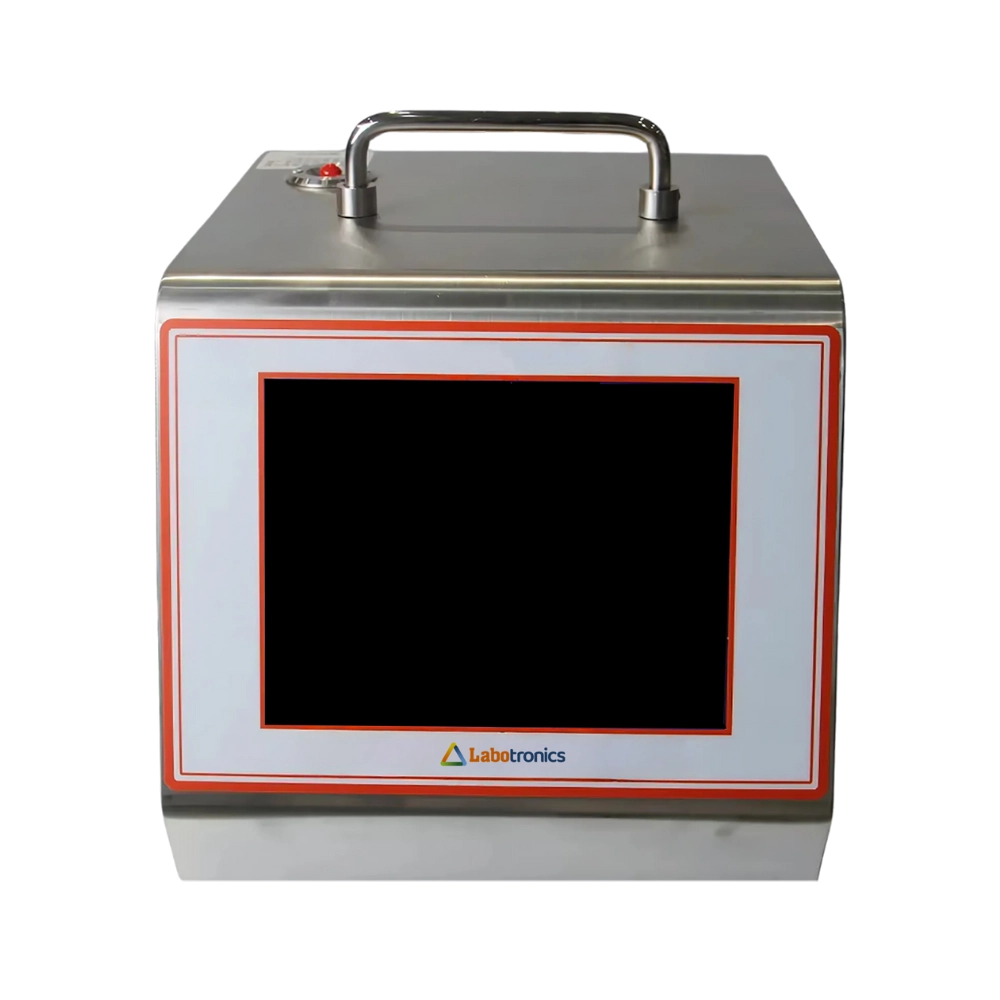

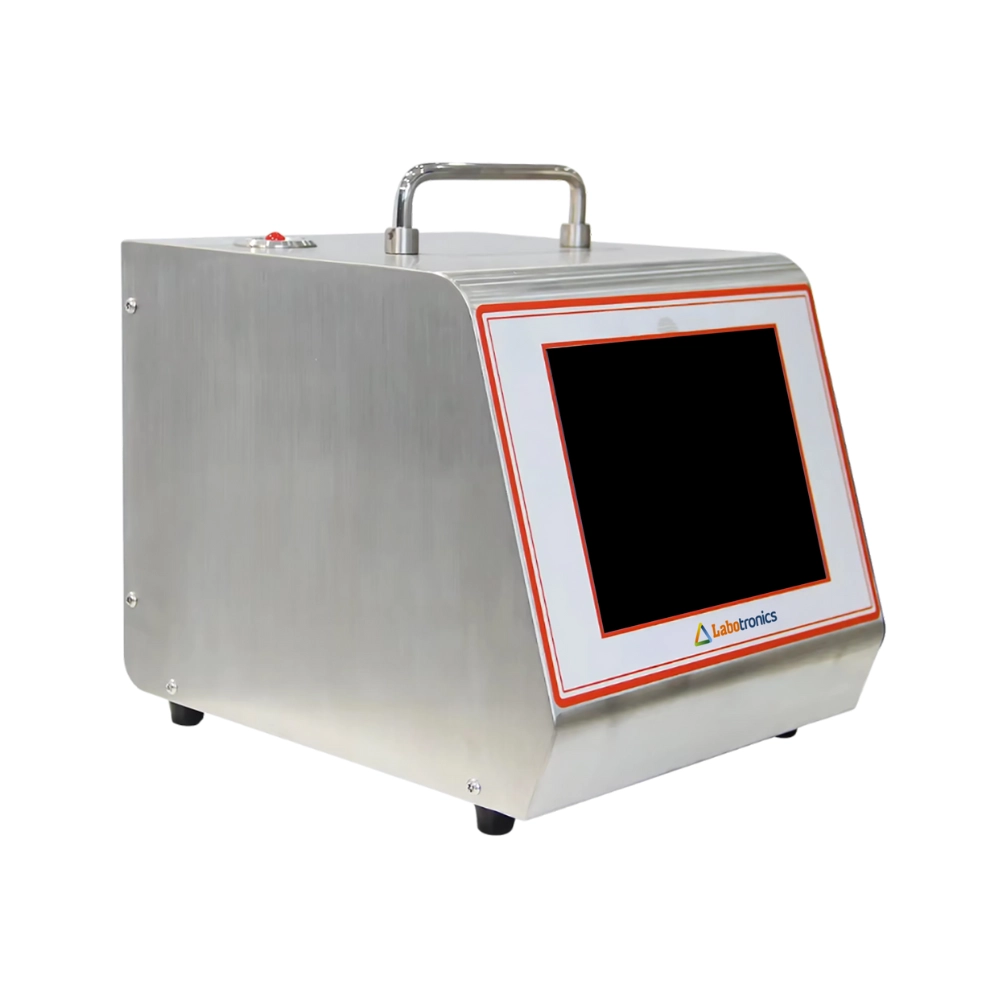

Laser Dust Particle Counter LB-10LDC is a touch-screen controlled unit adopted with light weight air pumps. Features 3.53 cfm of sampling flow rate for 0.5 µm, 1 µm, 3 µm, 5 µm, 10 µm, 25 µm particles. Designed with stainless steel and built-in lithium battery along with DC power supply, allows continuous testing time of 5 hours. With built-in thermal printer and 5 to 9999 sec of sampling time, it is a lightweight unit to carryout different experiments.
Buy Now Download CatalogSpecifications
| Particle size | 0.5 µm, 1 µm, 3 µm, 5 µm, 10 µm, 25 µm |
| Sampling flow rate | 100 l/min ± 5% (3.53 cfm) |
| Repeatability relative error | < ±10% |
| Particle size distribution error | < ±30% |
| Maximum sampling concentration | 35000 particles/liter |
| Sampling time | 5 to 9999 s |
| Sampling delay | 0 to 100 s |
| Sampling area/position | 0 to 9999 |
| UCL sampling time and points | 2 to 50 |
| Self purification | ≤ 10 min (3 consecutive times within 10 min, 95% accuracy) |
| Operation mode | Continuous working up to 5 hr |
| Data memory capacity | 1 to 5000 |
| Display | 8-inch color touch screen display |
| Printer | Built-in thermal printer |
| Battery | Built-in lithium battery DC 16, 8 V, 18650 |
| Battery charging time | 5 hr |
| Power supply | AC 220 V, 50 Hz |
| Dimension (L×W×H) | 315×260×230 mm |
| Packaging dimension (L×W×H) | 650×600×550 mm |
| Weight | 8 kg |
| Gross weight | 19 kg |
Features
Applications
Laser dust particle counter is used for monitoring cleanrooms, indoor air quality, exposure to exhaust, tobacco or cigarette smoke and other harmful air pollutants, and levels of airborne dust.
