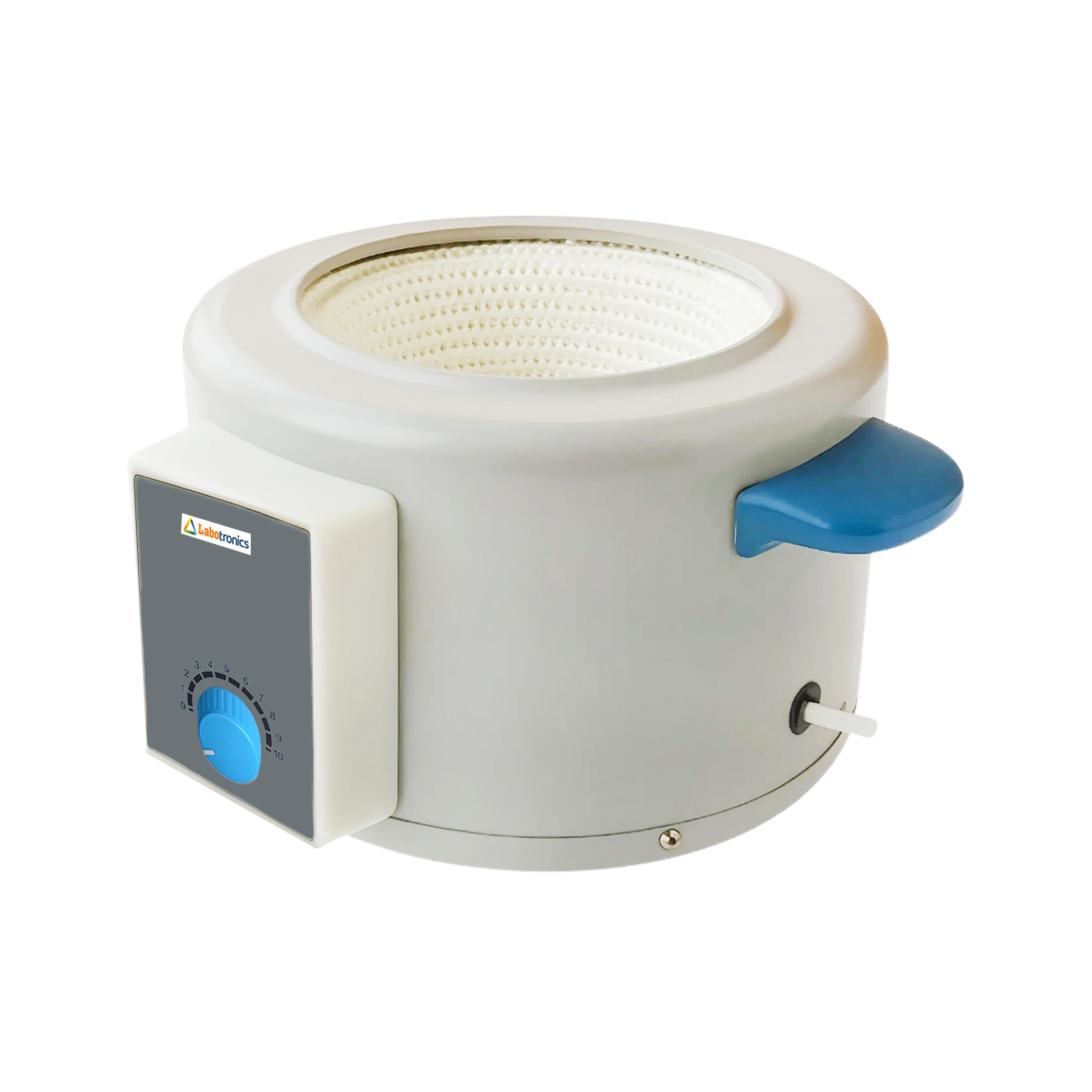

Manual controlled heating mantle LB-23HMT is a table top heating mantle with a capacity of 500 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.
Request Quote Download CatalogSpecifications
Capacity | 500 ml |
Power | 220 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Voltage | 163 V ̴̴ 240 V , 110 V ̴̴ 120 V |
Features
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
Accessory No. | Accessory | Quantity |
A1 | Removable holder | 1 |
A2 | Clamp with screw | 1 |
A3 | Inner Thermocouple (4 - spin) | 1 |
A4 | Outer Thermocouple (4 - spin) | 1 |
· Stainless Steel Length: 235mm | ||
· Wire length : 1000mm | ||
A5 | Magnetic bead | 1 |
· Designed specifically for round bottom flasks | ||
· PTFE - coated | ||
· Length: 20mm | ||
· Diameter : 10 mm |
Capacity | 50 ml |
Power | 110 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 100 ml |
Power | 130 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 250 ml |
Power | 216 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 500 ml |
Power | 220 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 1 L |
Power | 530 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 2 L |
Power | 650 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 3 L |
Power | 750 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 5 L |
Power | 1100 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 10 L |
Power | 3000 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
Capacity | 20 L |
Power | 5000 W |
Temperature | 380 °C |
Temperature accuracy | ±5 °C |
