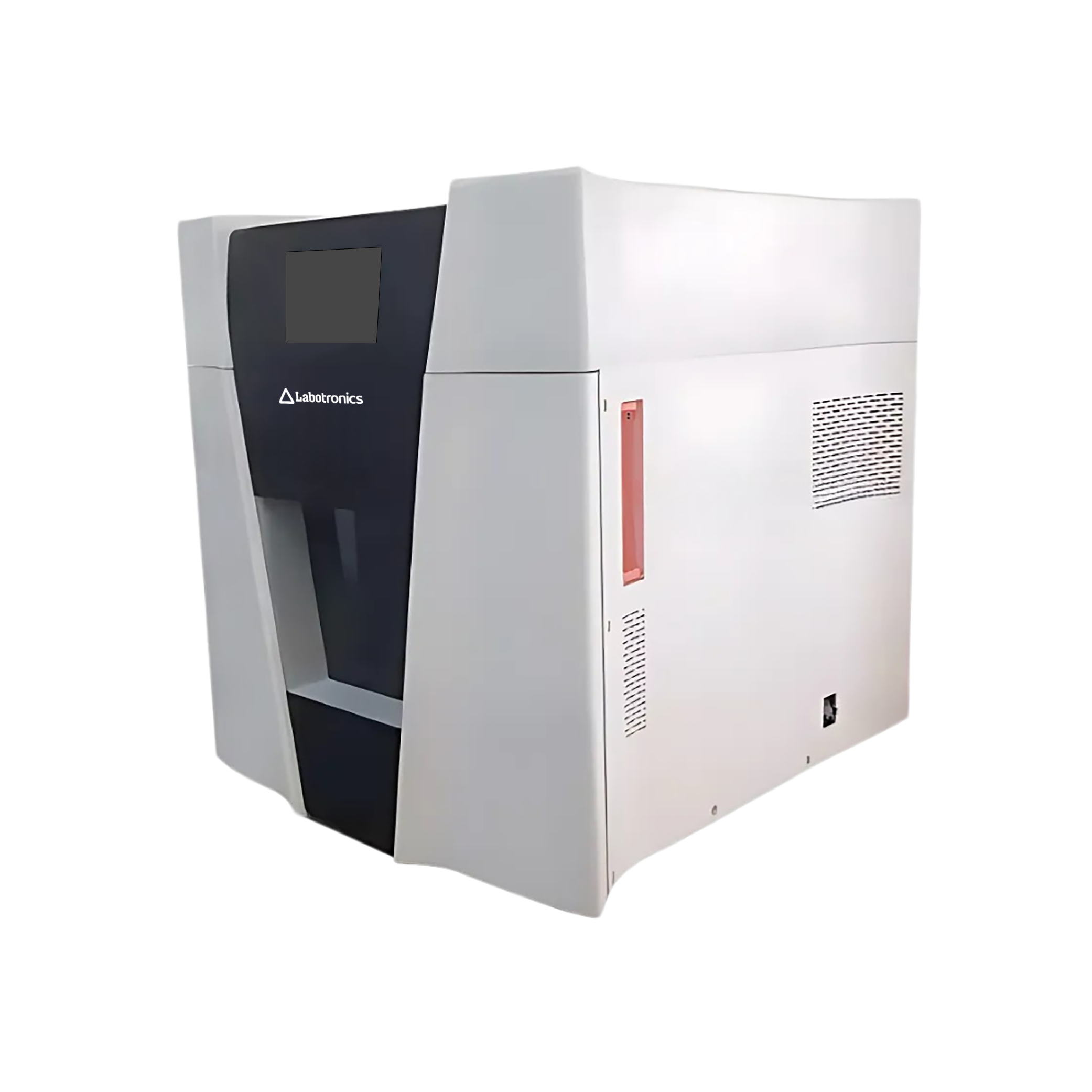

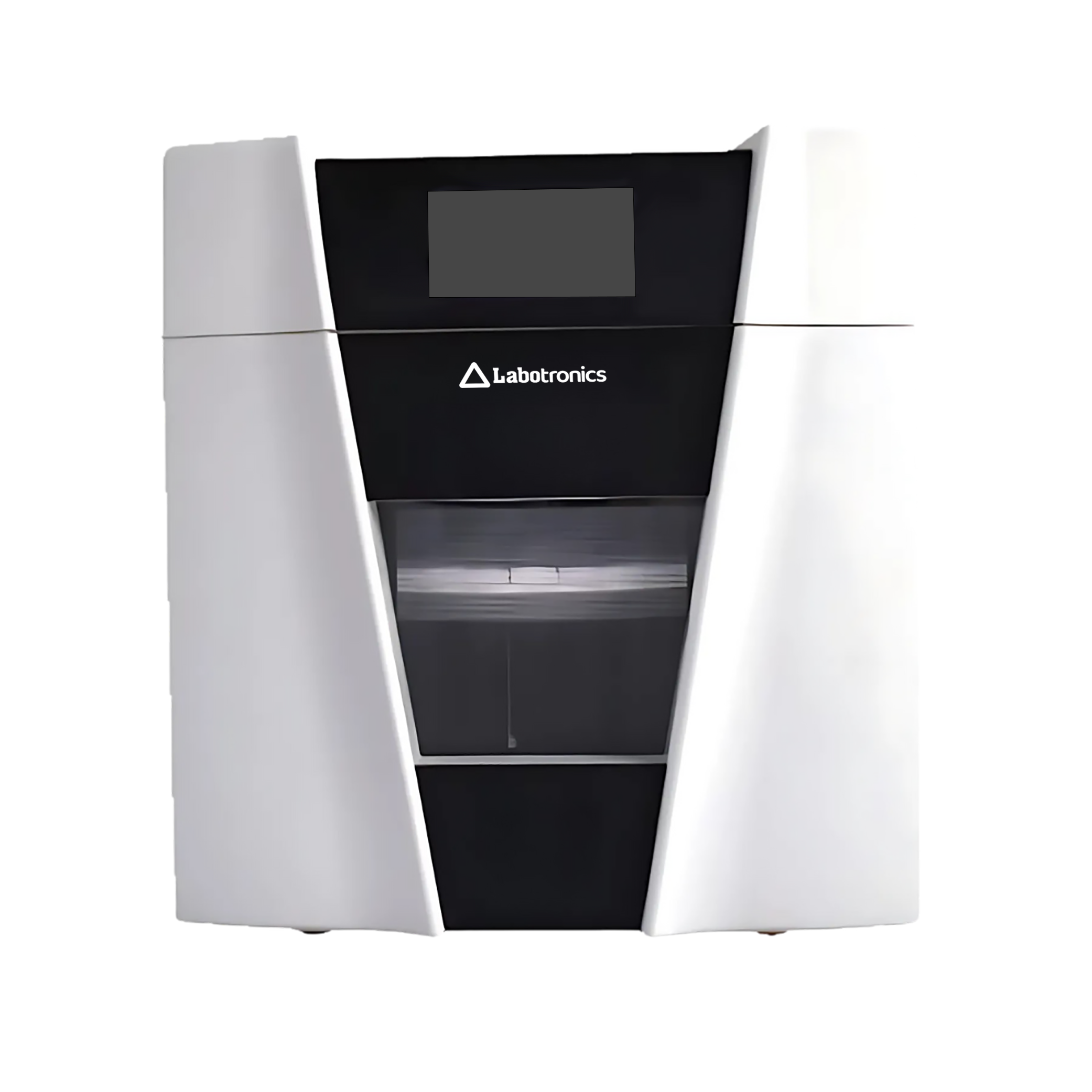

Microwave Sample Preparation Workstation LB-11MSP

Microwave Sample Preparation Workstation LB-11MSP

Microwave sample preparation workstation LB-11MSP is fully automated microwave oriented high throughput digestion processor. It is characterized with quartz digestion vessel enabling visual accessibility to the process. The drying rotor configuration aides in the effective drying process of samples. Its bolt design ensures safe operational accessibility eliminating the need for explosion-proof membrane.

Buy Now Download Catalog

Specifications

Load capacity 12
Microwave frequency 2450 MHz
Temperature range - 40 °C ~ 305 °C
Temperature accuracy ± 0.1 °C
Pressure control range 0 MPa ~ 10 MPa
Pressure accuracy ± 0.01 MPa
Installed power 2850 W
Maximum output power 1600 W
Ambient temperature 0 °C ~ 40 °C
Relative humidity 15 % ~ 80 %
Power supply AC 220 V; 50 Hz
AC 240 V; 60 Hz
Dimensions 600 × 685 × 660 mm
Weight 75 kgs

Features

  • Digital LED screen for visual monitoring of set and processing data
  • Operational buttons on the front panel enables ease of operation
  • Wireless remote video monitoring system for clearer process visualization
  • COT real-time temperature and pressure exception monitoring system
  • RS232 serial port and USB interface
  • Picturized and videographed function of complete process
  • Dual magnetron structure for high energy and uniform microwave field
  • Aerospace composite fiber exterior structure

Applications

Used in preparing samples for analysis in chemistry, biology, microbiology, petrochemicals, immunology, genetics, pharmaceuticals, research and development, etc.

Our Team Of Experts Will Promptly Address Your Inquiry.

What our customers say

Mohamad Salim logo

1 year ago

Add a review

Microwave Sample Preparation Workstation

Microwave Sample Preparation Workstation : Microwave Sample Preparation Workstation LB-10MSP
Load capacity 16
Microwave frequency 2450 MHz
Temperature range Platinum resistor temperature sensor: 0 °C ~ 300 °C
Infrared temperature sensor: 0 °C ~ 300 °C
Temperature accuracy ± 1 °C

We provide microwave sample preparation workstation is a specialized setup designed for efficient and rapid sample processing using microwave technology. This workstation is equipped with a microwave digestion system, allowing for the decomposition of various sample types, such as environmental, biological, or industrial materials. It streamlines sample preparation for subsequent analysis by accelerating chemical reactions, digestion, and extraction processes. The workstation typically includes safety features, precise temperature control, and automation capabilities, ensuring reproducibility and minimizing manual handling.

Temperature range 0 °C ~ 300 °C
Temperature accuracy ± 1 °C
Maximum theoretical temperature 900 °C
Reaction vessel capacity 50 mL ~ 1000 mL standard reaction vessel

Labotronics microwave chemistry reaction workstation is a specialized setup designed for conducting chemical reactions using microwave irradiation. This workstation provides a controlled environment for optimizing reaction conditions, enhancing reaction rates, and improving overall efficiency. Equipped with a microwave reactor, temperature control systems, and safety features, it enables researchers to carry out organic synthesis, material science, and medicinal chemistry applications. The workstation allows precise control over reaction parameters, including temperature and pressure, facilitating the synthesis of compounds with enhanced yields and purity.

Microwave chamber 32 L stainless steel chamber
Temperature range Platinum resistance temperature sensing system: 0 °C ~ 250 °C Infrared temperature sensing system: 0 °C ~ 300 °C
Temperature accuracy ± 1 °C
Microwave frequency 2450 ± 50 Hz

Our closed microwave workstation is a controlled environment designed for safe and efficient microwave-assisted chemical synthesis. Enclosed in a specialized chamber with safety features, this workstation enables researchers to carry out reactions using microwave irradiation while minimizing exposure to potentially hazardous substances. The closed design prevents the escape of fumes or vapors, ensuring a secure working environment. Equipped with features like ventilation systems and safety interlocks, the workstation is crucial for applications in organic synthesis, medicinal chemistry, and materials science.

Processing capacity 12 vessels
Temperature range 0 °C ~ 300 °C
Temperature accuracy ± 1 °C
Chamber exhaust speed 3.1 m3/min
Processing capacity 8 vessels
Temperature range 0 °C ~ 300 °C
Temperature accuracy ± 1 °C
Chamber exhaust speed 3.1 m3/min
Processing capacity 16 vessels
Temperature range 0 °C ~ 300 °C
Temperature accuracy ± 1 °C
Chamber exhaust speed
