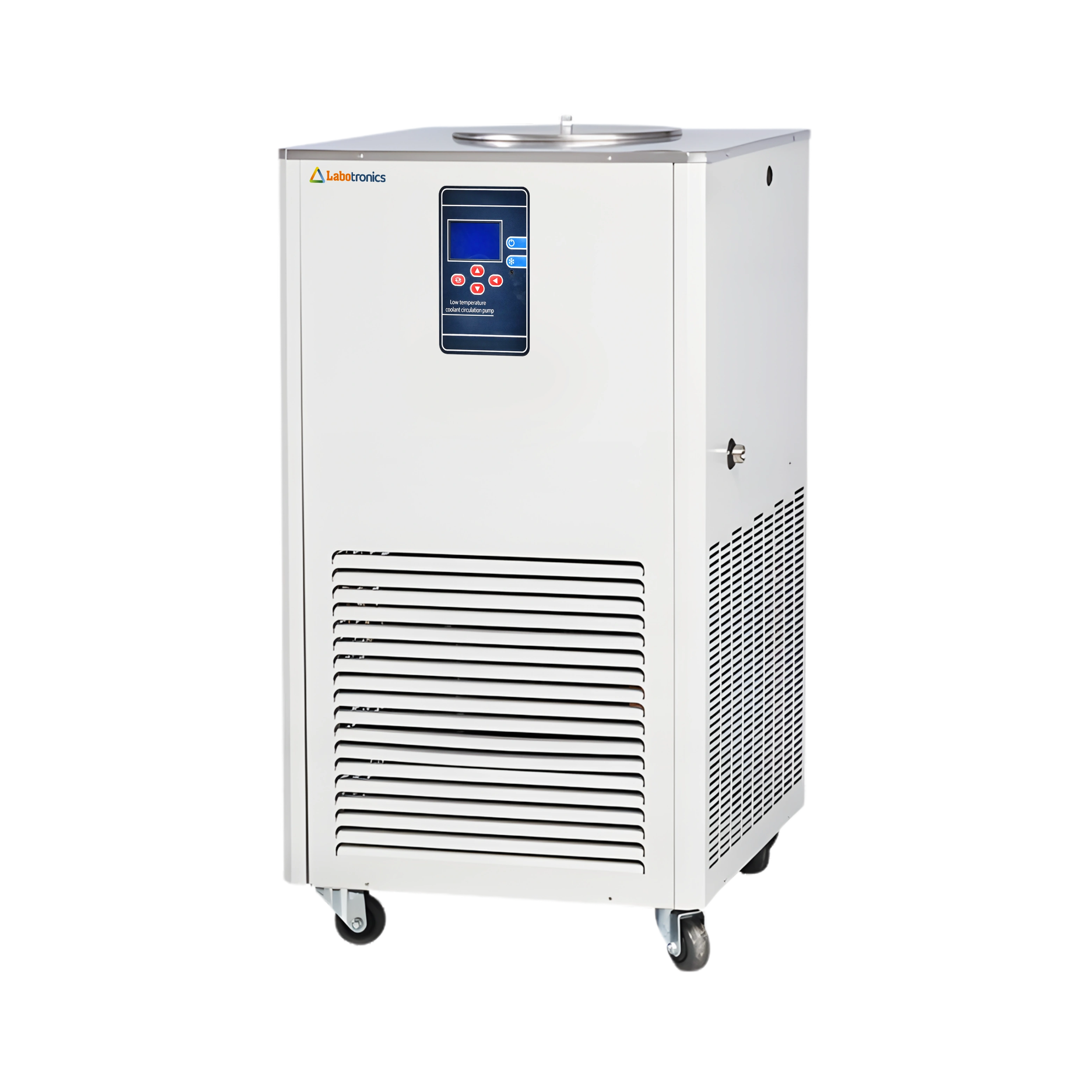

Recirculating Chiller LB-11RCC

Name: Recirculating Chiller LB-11RCC
Brand: Labotronics
SKU: LB-11RCC
Rating: 4.8 (514 reviews)

Recirculating Chiller LB-11RCC offers a minimum temperature of -30°C, ensuring precise and stable cooling for laboratory and industrial applications. It features a 5L capacity, allowing continuous operation without frequent refilling. The high flow rate of 20 L/min enables rapid cooling and efficient heat dissipation. Our chiller features a durable and reliable construction for long-lasting performance.

$ 1925

Download Catalog

Specifications

Temperature Range	- 30 to RT (±1℃) °C
Flume Tank Volume	5 L
Cooling Capacity	RT: 875 W 0℃: 650 W - 30℃: 255 W
Flume Opening Diameter	180 mm
Flume Dimension	220 × 180 mm
Rated Flow	25 L/min
Rated Head	6 m
Temperature Sensor	PT100
Refrigerant	R404A
Compressor Type	Closed
Horsepower	¾ HP
Condenser Type	Air cooling
Fan Type	External rotor axial flow fan
Evaporator Type	Internally threaded copper pipe
Circulating Pump Type	Shield pump
External Circulation Interface	G1/2- inch inner interface to OD 11mm pagoda interface
Safety features	Overvoltage, time delay, overcurrent, overheating, leakage, protector
Pump Power Consumption	100 W
Compressor Power	0.4 kW
Compressor Current	0.083333333333333
Phase	0.54166666666667
Power Consumption	0.55 kW
Power Supply	220 V, 50 Hz
Chiller Dimensions (L × W × H)	480 × 350 × 680 mm
Packing Dimensions (L × W × H)	550 × 430 × 670 mm
Net Weight	42 Kg
Gross Weight	59 Kg

Features

High-efficiency refrigerant system
Closed-type, reliable compressor
Advanced protection features for safety
Air-cooled condenser with efficient heat dissipation
Shield pump for smooth liquid circulation
Precise temperature sensor for accurate monitoring
Energy-efficient with low power consumption

Applications

Recirculating Chiller LB-11RCC provides precise cooling for laboratory, industrial, and research applications. It is ideal for chemical analysis, biotechnology, pharmaceutical processing, laser cooling.
