Recirculating Chiller LB-12RCC

Name: Recirculating Chiller LB-12RCC
Brand: Labotronics
SKU: LB-12RCC
Rating: 5 (520 reviews)

Recirculating Chiller LB-12RCC features a 10L capacity, allowing continuous operation without frequent refilling. It provides precise and stable cooling with a minimum temperature of -30°C, ensuring optimal performance. This high-performance unit boasts a flow rate of 20 L/min, ensuring efficient heat dissipation and rapid cooling. Our chiller is built with durable and reliable construction, offering long-lasting performance.

$ 2375

Download Catalog

Specifications

Temperature Range	-30 to RT (±1℃) °C
Flume Tank Volume	10 L
Cooling Capacity	RT: 2010 W 0℃: 1650 W -30℃: 400 W
Rated Flow	35 L/min
Rated Head	12 m
Flume Opening Diameter	240 mm
Flume Dimension	250 × 250 mm
Temperature Sensor	PT100
Refrigerant	R404A
Compressor Type	Closed
Horsepower	1 HP
Condenser Type	Air Cooling
Fan Type	External Rotor Axial Flow Fan
Evaporator Type	Internally Threaded Copper Pipe
Circulating Pump Type	Shield Pump
External Circulation Interface	G1/2-inch inner interface to OD 14mm pagoda interface
Safety Features	Overvoltage, time delay, overcurrent, overheating, leakage, protector
Phase	0.54166666666667
Compressor Current	3.4 A
Pump Power Consumption	280 W
Compressor Power Consumption	0.75 kW
Power Consumption	1 kW
Power Supply	220 V, 50 Hz
Chiller Dimensions (L × W × H)	540 × 420 × 800 mm
Packing Dimensions (L × W × H)	610 × 510 × 870 mm
Net Weight	57 Kg
Gross Weight	78 Kg

Features

High-efficiency refrigeration system
Reliable closed-type compressor
Advanced safety features
Efficient air-cooled condenser
Smooth liquid circulation with shield pump
Accurate temperature monitoring
Energy-efficient, low power consumption

Applications

Recirculating Chiller LB-12RCC provides precise cooling for laboratory, industrial, and research applications. It is ideal for chemical analysis, biotechnology, pharmaceutical processing, laser cooling.

Tank Capacity	7 L
Temperature Range	-30 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Opening Diameter	180 mm

Tank Capacity	17 L
Temperature Range	-20 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Opening Diameter	320 mm

Tank Capacity	10 L
Temperature Range	-40 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Opening Diameter	180 mm

Tank Capacity	100 L
Temperature Range	-40 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Dimension	500 × 500 mm

Tank Capacity	7 L
Temperature Range	-30 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Opening Diameter	180 mm

Recirculating Chiller LB-12RCC

Recirculating Chiller

Recirculating Chiller LB-13RCC

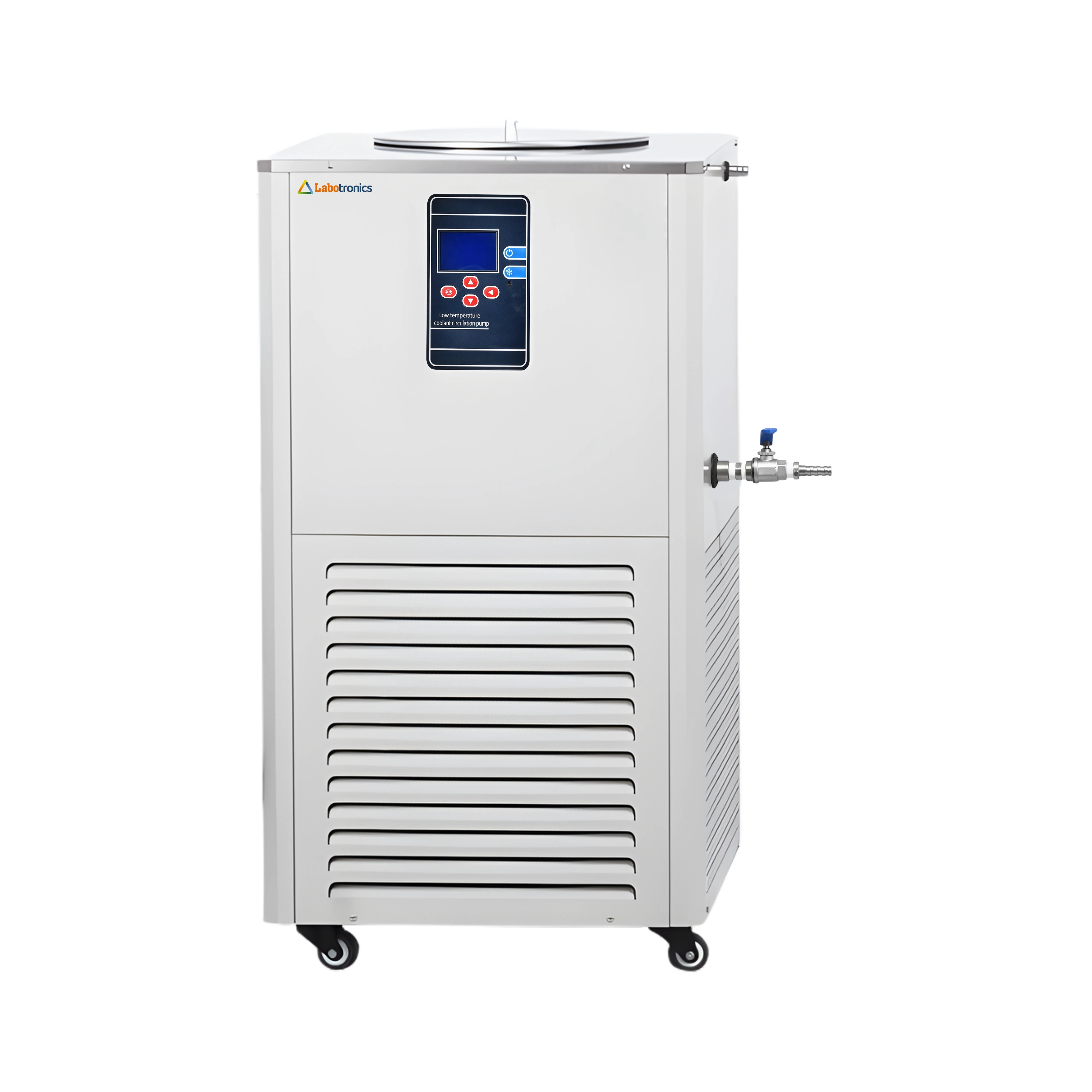

Recirculating Chiller LB-15RCC

Recirculating Chiller LB-17RCC

Recirculating Chiller LB-16RCC

Recirculating Chiller LB-11RCC

Recirculating Chiller LB-19RCC

Recirculating Chiller LB-14RCC

Recirculating Chiller LB-18RCC

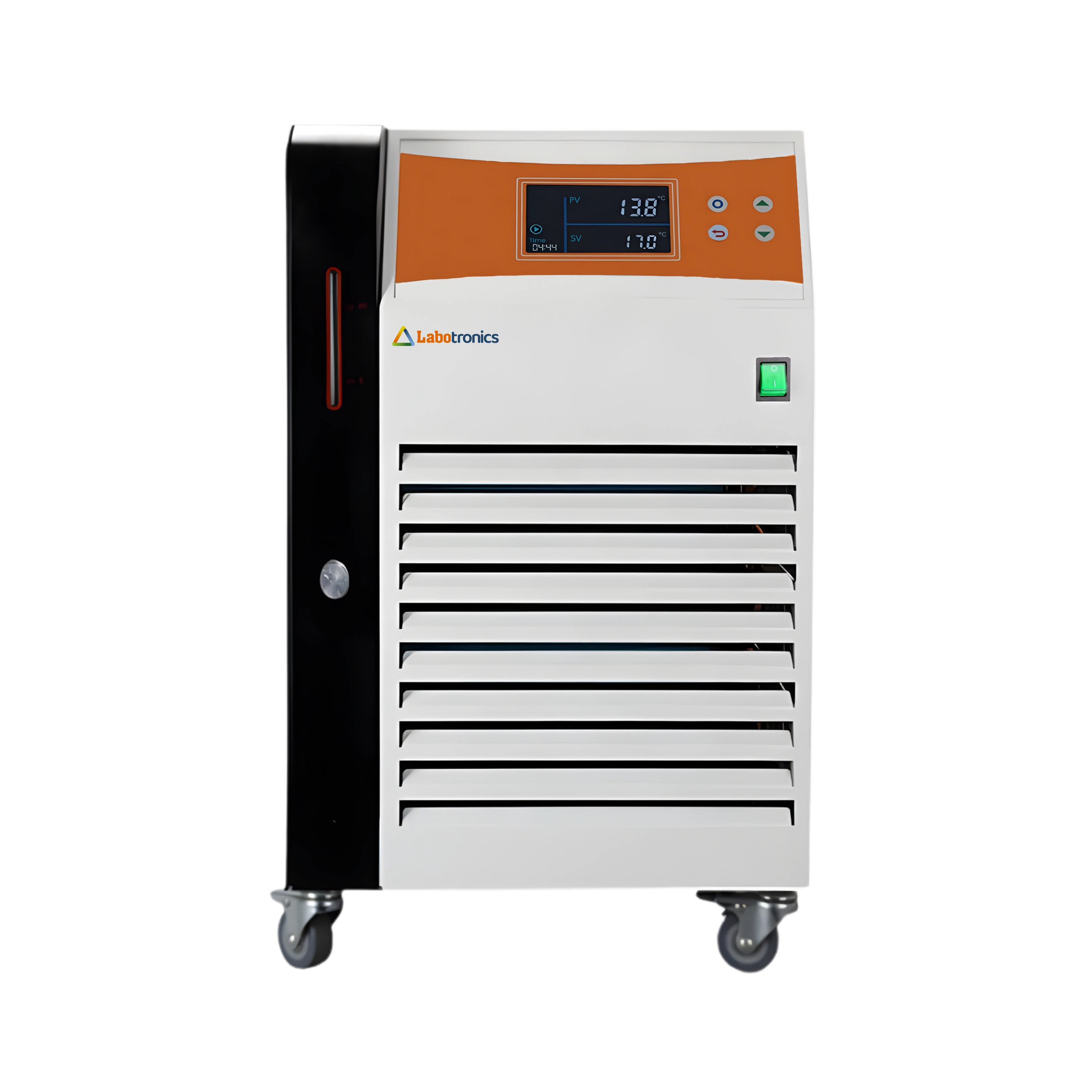

Recirculating Chiller LB-10RCC

Temperature Range	- 30 to RT (±1℃) °C
Flume Tank Volume	5 L
Cooling Capacity	RT: 875 W 0℃: 650 W - 30℃: 255 W
Flume Opening Diameter	180 mm
Flume Dimension	220 × 180 mm

Tank Capacity	35 L
Temperature Range	-40 to RT (±1℃)
Temperature Sensor	PT100
Humidity	60%
Tank Opening Diameter	180 mm

Tank capacity	8 L
Temperature Range	5 °C to 40 °C
Temperature Stability	± 0.3 °C
Temperature Sensor	PT100
Temperature Control Method	Hot gas bypass and PID combined
