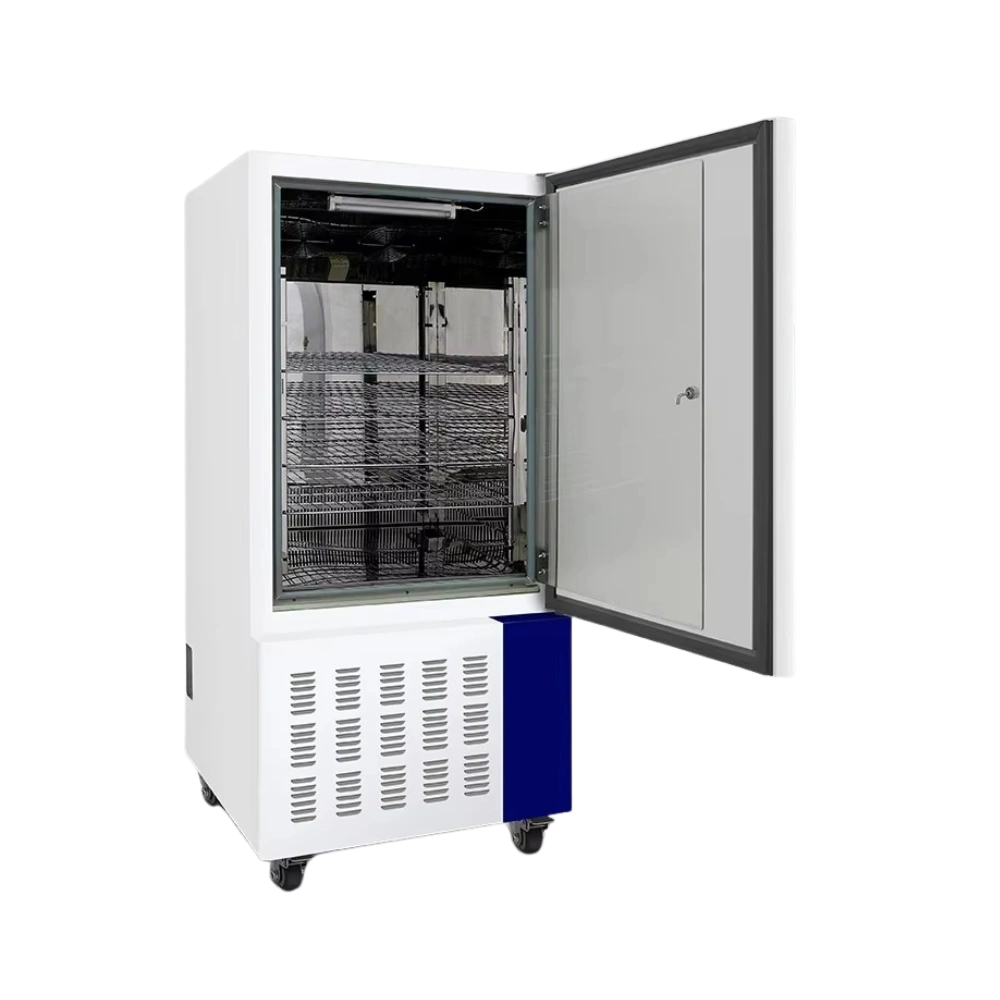

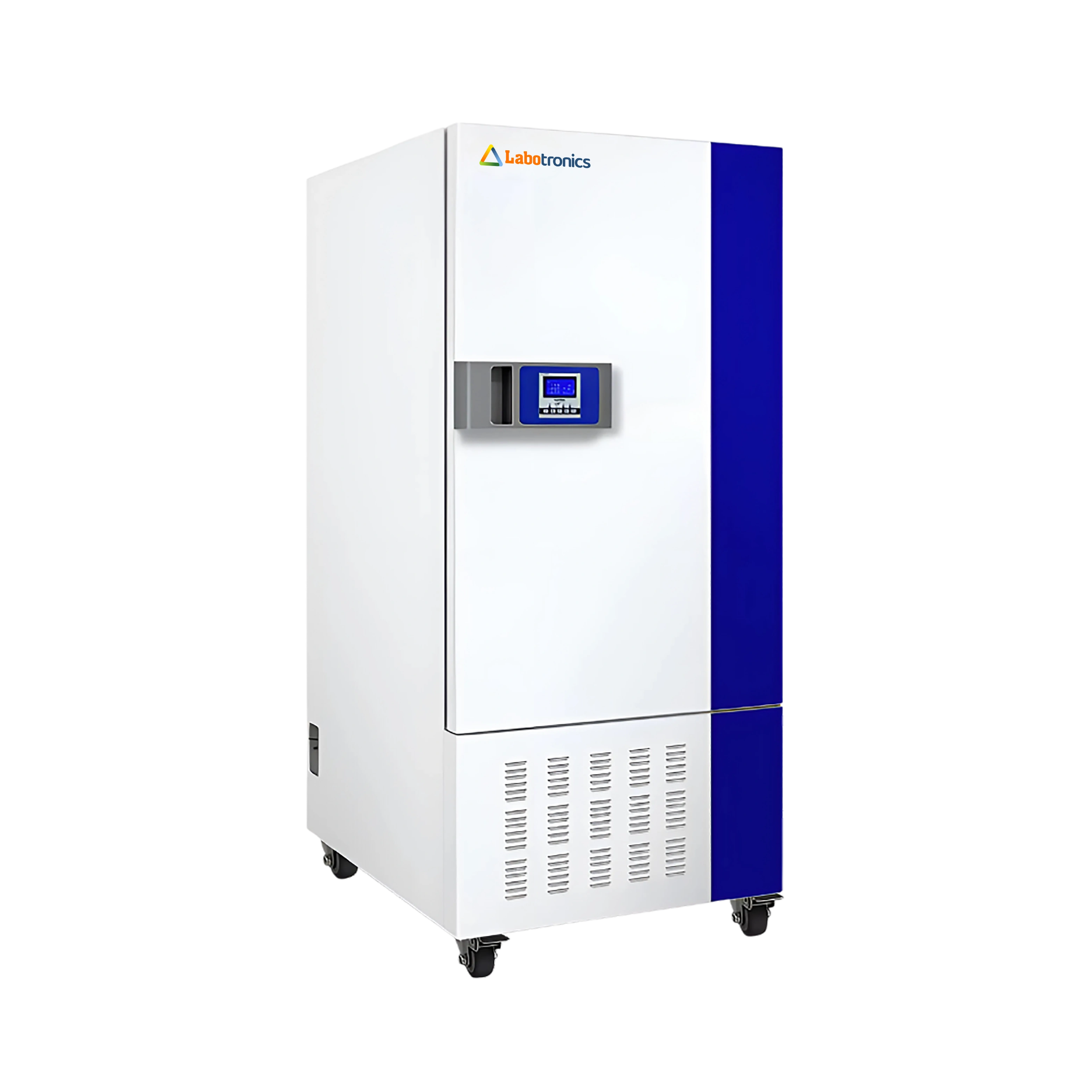

Seed Germinator LB-22SGG

Seed Germinator LB-22SGG

Seed Germinator LB-22SGG offers a 400 L chamber capacity, providing precise conditions for seed germination and plant growth. It operates within a temperature range of 10 to 65°C, ensuring stable environmental control for optimal results. It is equipped with double-layer insulation to maintain internal stability and reduce power consumption. Our germinator features an LCD display with password protection for secure and user-friendly operation.

$ 6325

Download Catalog

Specifications

Capacity 400 L
Temperature Range 10 to 65℃ (with lighting)
0 to 60℃ (without lighting)
Temperature Accuracy ± 0.1℃
Temperature Fluctuation ± 1℃ (10 to 40℃)
Temperature Uniformity ± 1℃ (10 to 40℃)
Ambient Temperature Range 10 to 30℃
Humidity Range 40 to 95% RH
Ambient Humidity Level < 70%
Humidity Fluctuation ± 3% RH
Time Range 0 to 99 hours
Illumination Range 0 to 15000 Lux
Convection Mode Forced Convection
Control System Thirty-stage Microprocessor PID controller
Interior Material Stainless Steel
Insulation Material Environmental protection type material
Power Consumption 1550 W
Power Supply AC 220V / 50Hz
Internal Dimension (H × W × D) 1148 × 554 × 610 mm
External Dimension (H × W × D) 1828 × 783 × 905 mm
Packaging Dimension (H × W × D) 2017 × 880 × 1060 mm
Net Weight 194 kg
Gross Weight 214 kg

Features

  • Microprocessor PID control

  • Auto defrost function
  • Integrated safety alarms
  • Climate simulation capability
  • Adjustable mesh shelves
  • Dual-door observation

Standard Accessories

  • Shelf × 4 Pcs
  • Water Tank × 1 Pc
  • Inlet Pipe (0.3m) × 1 Pc
  • Outlet Pipe (0.3m) × 1 Pc
  • Overflow Pipe (2m) × 1 Pc
  • Instructional Manual × 1 Pc
  • Heating Element
  • Humidity Sensor
  • Temperature Sensor

Optional Accessories

  • Portable Printer
  • LCD Touch Screen Controller
  • Power Supply Interface

Applications

Seed Germinator LB-22SGG is used to create controlled conditions of temperature, humidity, and light for testing seed germination and plant development. It is widely applied in agricultural research laboratories, seed testing centers, and educational institutions.

Get Quote

Seed Germinator LB-22SGG
Seed Germinator LB-22SGG

Frequently asked questions For Seed Germinator

1. What is the purpose of the LB-22SGG Seed Germinator?

The LB-22SGG seed germinator provides a controlled environment of temperature, humidity, and light to ensure accurate and reliable seed germination studies.

2. What types of seeds can be tested in the LB-22SGG?

Our LB-22SGG can test a wide variety of seeds, including cereals, grains, vegetables, oilseeds, and forest species, making it suitable for agricultural research and quality testing.

3. How does the LB-22SGG maintain stable test conditions?

The seed germinator LB-22SGG uses precision sensors, uniform air circulation, and programmable controls to maintain consistent temperature and humidity throughout the chamber.

4. Can the LB-22SGG perform light and dark cycle studies?

Yes, Labotronics LB-22SGG supports programmable light and dark cycles, allowing researchers to simulate natural environmental conditions for seed germination experiments.

5. What Is a Seed Germinator and why do you need one?

A seed germinator is a temperature- and humidity-controlled chamber used to ensure uniform seed sprouting. Labotronics seed germinators simulate ideal environmental conditions, making them essential for agriculture labs, research institutions, and seed production companies seeking higher germination success rates.

6. Can I control both temperature and humidity in Labotronics Seed Germinators?

Yes, all Labotronics seed germinators offer precise temperature and humidity control. This allows users to customize germination conditions for various seed types, improving consistency, speed, and success rates in seed sprouting.

7. Do Labotronics Seed Germinators include Programmable Lighting Control?

Yes, many Labotronics models feature programmable LED lighting systems that simulate natural light cycles. This is ideal for plant growth studies and germinating light-sensitive or photoperiod-dependent seeds.

8. Are Labotronics Seed Germinators suitable for long-duration and Large-scale experiments?

Absolutely. Labotronics germinators are engineered for continuous operation, making them reliable for long-term germination studies, seed viability testing, and large-scale seed production in commercial or research environments.
