Vacuum Concentrator Centrifuge LB-10VCC

Vacuum Concentrator Centrifuge LB-10VCC

Vacuum Concentrator Centrifuge LB-10VCC efficiently removes water and organic solvents from samples, operating at speeds up to 2000 r/min. It features a micro-controller unit and a high-torque brushless motor for stable performance. Our centrifuge includes a transparent cover for visual monitoring of samples during the concentration process. It incorporates an aluminum alloy chamber coated with corrosion-resistant material.

$ 86875

Download Catalog

Specifications

Max Speed 2000r/min
Max RCF 500 × g
Rotor Capacity 6 × 250mL
Adaptor Capacity 6 × 2 × 50 ml or 6 × 5 × 20mL
Ambient Temperature 0°C to 40°C
Noise ≤ 50dB (A)
Temperature Control Range Room temp to 60°C or without Heat
Vacuum Degree 0.1m bar
Vacuum Interface φ10mm
Max Current 7A
Total Power 1.5kW
Power Supply AC220V/50Hz
Dimension (L × W × H) 600 × 540 × 360mm
Weight 38kg

Features

  • Non-Contact Drive Rotation System
  • Over Temperature Warning Function
  • LCD Touch Screen Monitor with TFT True Color
  • Flexible Concentration Time
  • Multiple rotors are available
  • Low noise operation

Optional Accessories

Cold Trap (-40℃)
Vacuum Pump

Applications

Vacuum Concentrator Centrifuge is widely used in both qualitative and quantitative analyses across multiple fields such as chemical, biological, immunoscreening, food safety, residue analysis. It is suitable for liquid chromatography, ADMET/toxicology studies, polymer chemistry, DNA/RNA purification, and forensic drug testing.

Rotor Selections

Rotor Name Max. Speed Max. Capacity Max. RCF
Angle Rotor 2000 r/min 62 × 1.5mL 500 × g
Angle Rotor 2000 r/min 12 × 10mL 500 × g
Angle Rotor 2000 r/min 6 × 50mL 500 × g
Angle Rotor 2000 r/min 6 × 250mL 500 × g
Swing plate Rotor 2000 r/min 2 × 48 holes 500 × g
Swing plate Rotor 2000 r/min 2 × 96 holes 500 × g
Vacuum Concentrator Centrifuge LB-10VCC
Vacuum Concentrator Centrifuge LB-10VCC

Get Quote

Frequently asked questions For Vacuum Concentrator Centrifuge

1. Can the LB-10VCC process different types of samples?

Yes, the LB-10VCC can concentrate a wide range of biological and chemical samples, including DNA, RNA, proteins, solvents, and other molecular biology reagents, making it versatile for many lab applications.

2. How does the LB-10VCC ensure safe operation during vacuum concentration?

Our LB-10VCC Centrifuge features automatic vacuum control and built-in over-temperature protection that prevents sample damage and ensures safe operation throughout the concentration process.

3. What advantages does multi-step programming offer in the LB-10VCC?

Multi-step programming allows users to set different temperature, vacuum, and centrifugation speeds sequentially within one run, optimizing sample drying and concentration with minimal manual intervention.

4. What level of concentration accuracy can I expect with the LB-10VCC?

Labotronics LB-10VCC centrifuge provides precise and reproducible sample concentration with controlled heating and vacuum pressure, preserving sample integrity for downstream analysis.

5. What are vacuum concentrator centrifuges used for?

Vacuum concentrator centrifuges utilize vacuum pressure, gentle heat, and centrifugal force to efficiently remove solvents from biological and chemical samples. Labotronics provides a variety of centrifuges designed to effectively concentrate samples while maintaining the integrity of sensitive materials.

6. Where can I use vacuum concentrator centrifuges?

These centrifuges are commonly used in biological research labs, pharmaceutical companies, chemical analysis facilities, and university laboratories. They are especially useful for processing multiple samples that require fast and controlled evaporation.

7. Are vacuum concentrator centrifuges suitable for delicate or heat-sensitive samples?

Yes, we offer vacuum concentrator centrifuges that are perfect for delicate, heat-labile samples. The low-pressure vacuum environment minimizes heat exposure, helping maintain sample integrity throughout the process.

8. How do Labotronics vacuum concentrator centrifuges improve sample processing?

Our centrifuges reduce evaporation times, increase throughput, and lower contamination risks. This leads to more efficient workflows and consistent, reproducible results across all samples.

Still have questions?

If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!

Vacuum Concentrator Centrifuge

Vacuum Concentrator Centrifuge LB-11VCC

Speed Range 800 rpm to 2000 rpm
Maximum RCF 530 × g
Temperature Control Range RT 5℃ to 100℃
Maximum Vacuum Level <13mbar
Pumping Speed 33 L/min

$ 10725

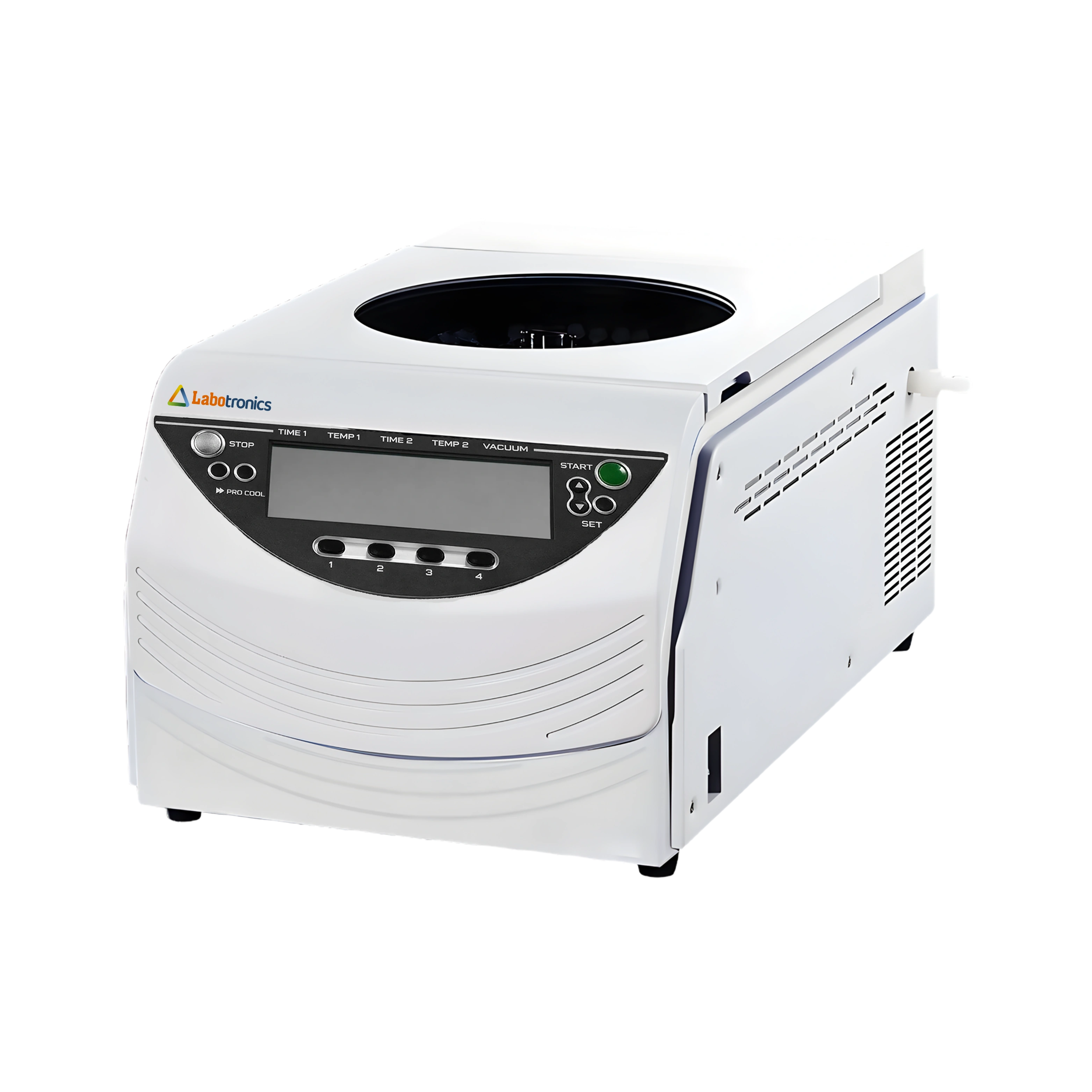

Vacuum Concentrator Centrifuge LB-15VCC

Speed Range 800 rpm to 2000 rpm
Maximum RCF 650 × g
Temperature Control Range RT + 5℃ to + 100℃
Temperature Control Precision ± 1℃
Maximum Vacuum Level ≤ 0.3 mbar

$ 294875

Vacuum Concentrator Centrifuge LB-13VCC
Speed Range 800 rpm to 2000 rpm
Maximum RCF 530 × g
Temperature Control Range Ambient -5℃ to +100℃
Temperature Control Precision ± 1℃
Vacuum Control Range 0.1 to 100 mbar

$ 200125

Vacuum Concentrator Centrifuge LB-14VCC
Speed Range 800 rpm to 2000 rpm
Maximum RCF 650 × g
Temperature Control Range RT + 5℃ to + 100℃
Temperature Control Precision ± 1℃
Maximum Vacuum Level ≤ 0.3 mbar

$ 1584375

Vacuum Concentrator Centrifuge LB-12VCC

Speed Range 800 rpm to 2000 rpm
Maximum RCF 530 × g
Temperature Control Range RT + 5℃ to + 100℃
Temperature Control Precision RT ± 1℃
Vacuum Control Range 0.1 to 100 mbar

$ 929375
