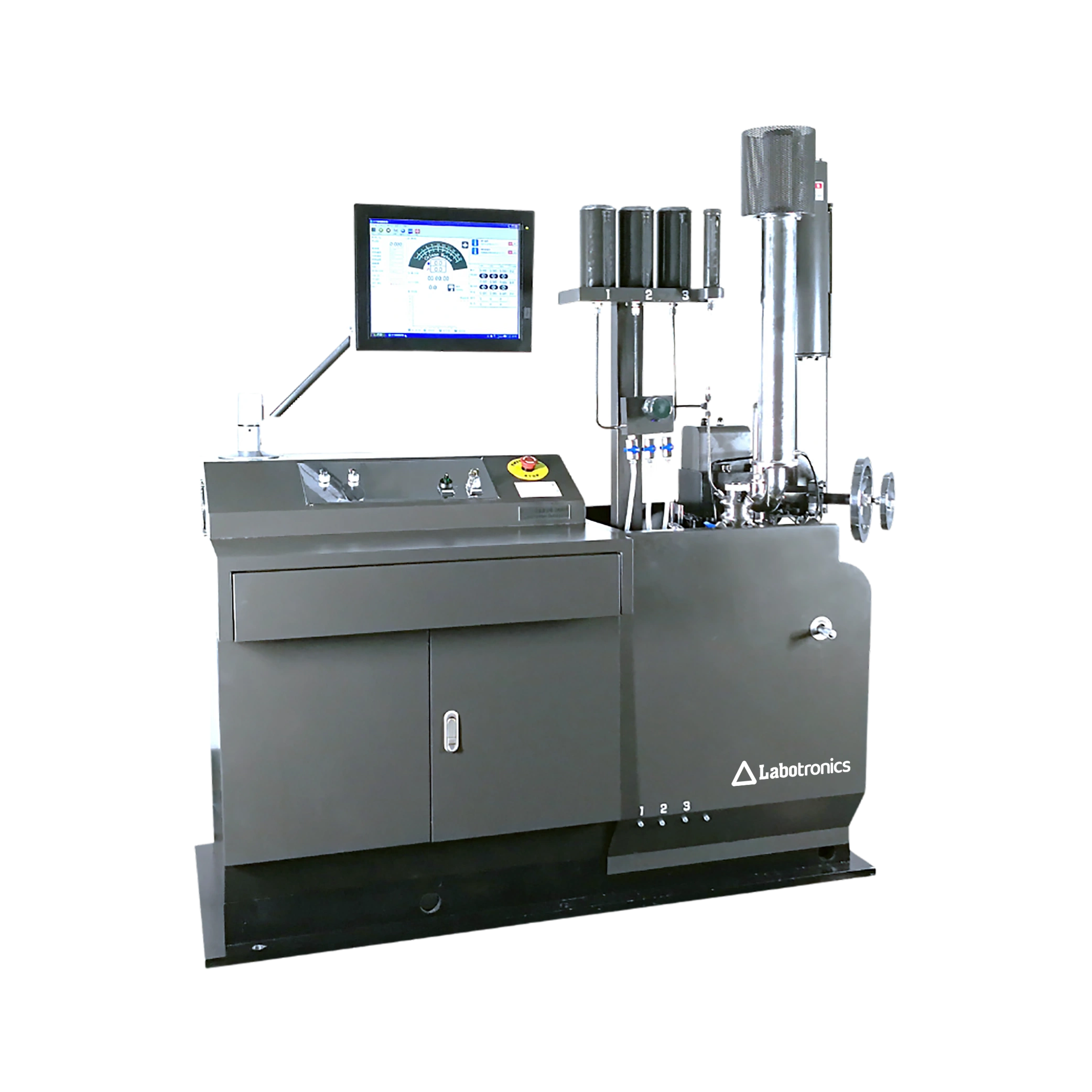

Cetane Analyzer LB-10CAZ

Cetane Analyzer LB-10CAZ

Cetane analyzer LB-10CAZ is an analytical unit that automatically generates and prints test results. The Knock detection system ensures stability, repeatability and precision. Diesel injector provides rapid switching and repeatable fuel metering. In compliance with ASTMD613 it determines the Cetane number of diesel and diesel related fuels.

Request Quote Download Catalog

Specifications

Engine speed 900 rpm ± 9 rpm
Piston stroke 114.3 mm
Cylinder bore diameter 82.55 mm
Compression ratio range (adjustable) 8:1 ~ 36:1
Injector strength 13 ml/min ± 0.2 ml/min
Cooling temperature ( Injector ) 38 °C ± 2 °C
Injector pressure 10.3 MPa ± 0.34 MPa
Lubricating oil temperature 57 °C ± 8 °C
Input temperature 66 °C ± 0.5 °C
Angle of injection 13° ± 0.2°
oil pressure 172 kPa ~ 207 kPa
Engine water temperature R.T + 5 °C
Cylinder cooling temperature 100 °C ± 2 °C
Maximum power 10 kW
Dimensions ( W × D × H ) 1450 × 720 × 1750 mm
Weight 1000 kgs

Features

  • LCD touch screen to display real time data
  • Operation method: Linear Interpolation
  • Diesel injector for fuel injection
  • FAD security protection system for end user safety

Applications

Used in oil and petroleum industry, petrochemical industry, research institutes, laboratories, petroleum storage facilities, filling stations, customs houses, chemical industry, etc.

Average Cetane Level

Average Cetane levelRepeatability accuracyReproducibility accuracy
400.82.8
440.93.3
480.93.8
520.94.3
5614.8
