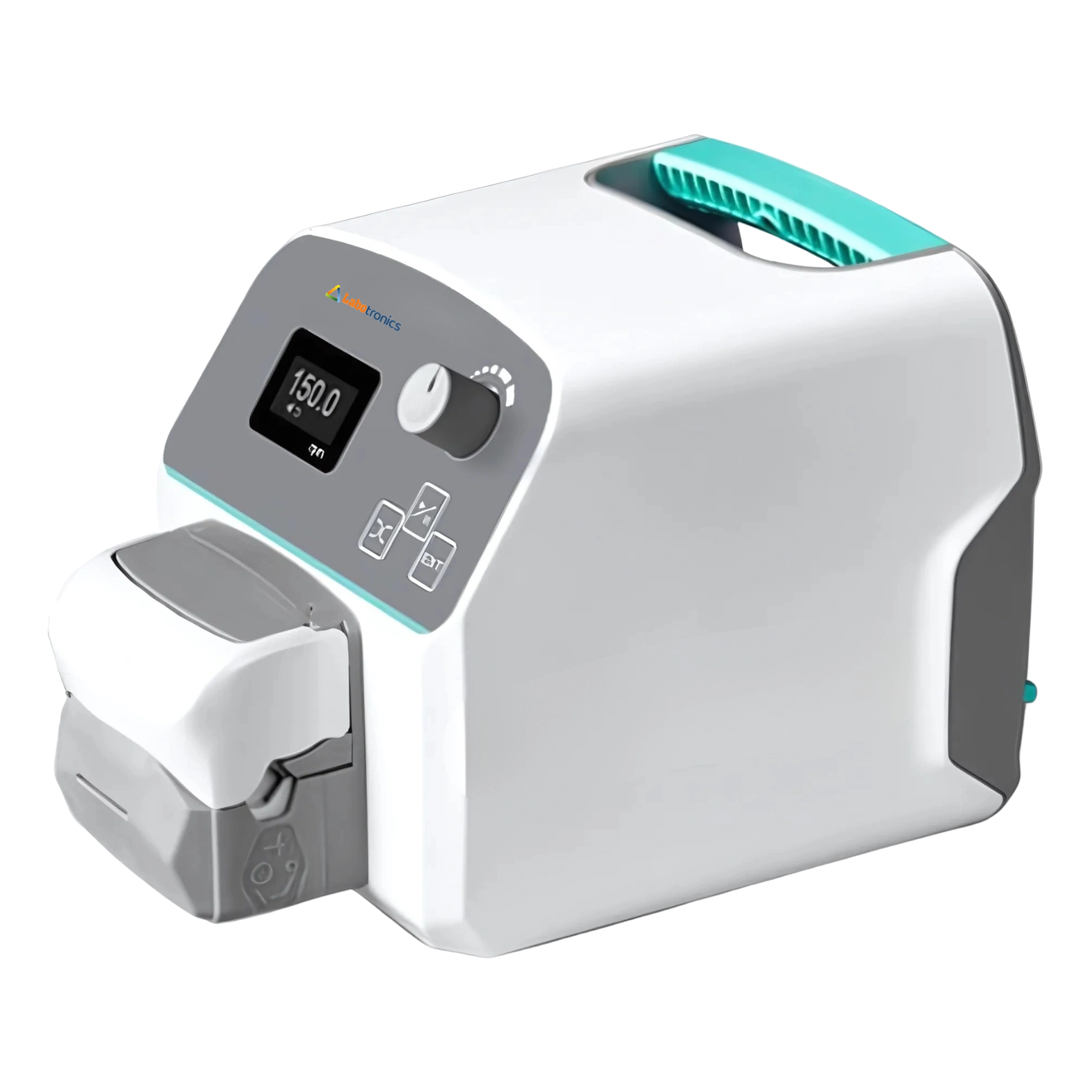

Compact Peristaltic Pump LB-10CPP offers a flow rate of 0.0024 to 930 mL/min and allows speed control from 0.1 to 350 rpm. It is equipped with a digital rotary knob, enabling smooth and manual speed adjustments. It supports start/stop and direction control via external switch signals, enabling integration with PLCs or automation systems. Our peristaltic pump features a bright 0.96-inch OLED display, allowing easy monitoring of operational status.
$ 1737.5
Download CatalogSpecifications
| Flow Rate | 0.0024 to 930 mL/min |
| Speed Range | 0.1 to 350 rpm |
| Speed Resolution | 0.1 rpm |
| Temperature Range | 0 to 40°C |
| Relative Humidity | < 80% |
| Display | 0.96 |
| Control Method | Digital knob control with mechanical keypad |
| External Control | Start/Stop and Direction (switch signal) |
| External Control Signal | Standard: 0 to 5V, 4 to 20mA Optional: 0 to 10V |
| Communication Interface | USB connector, RS485 |
| Power Consumption | < 15W |
| Power Supply | Output: 24V / 1.25A Input: AC100V–240V, 50Hz/60Hz |
| Dimension (L × W × H) | 189 × 128 × 135 mm |
| Weight | 1.1 kg |
Features
High speed resolution
Visible pump head
Directional flow control
Anti-corrosion housing
Easy tubing replacement
Mechanical keypad
Anti-static material
Noise-free operation
Low power consumption
Applications
Compact Peristaltic Pump LB-10CPP is used for accurate and contamination-free fluid transfer, ideal for dosing, sampling, and liquid dispensing. It is widely applied in laboratories, pharmaceutical production, research facilities, and chemical processing.
Pump Head And Tubing Selection
| Pump Head | Speed | Tubing Size | Flow Rate |
| Pump Head 1 | 0.1 to 350 rpm | 16 mm, 17 mm, 25 mm | 0.08 to 930 |
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| No of Channels | 1 |
| Flow Rate Range | 0.08 to 930 mL/min |
| Speed Range | 0.1 to 350 rpm, reversible |
| Speed Resolution | 0.1 rpm |
| Speed Control | Digital knob |
| Flow Rate Range | 0.08 to 930 mL/min |
| Speed Range | 0.1 to 350 rpm, reversible |
| Speed Resolution | 0.1 rpm |
| Speed Control | Digital knob |
| Control Method | Mechanical keypad |
| Speed Range | 0.1 to 350 rpm |
| Speed Resolution | 0.1 rpm |
| Control Method | Mechanical keypad and Knob speed |
| Temperature Range | 0 to 40°C |
| Relative Humidity | <80% |
