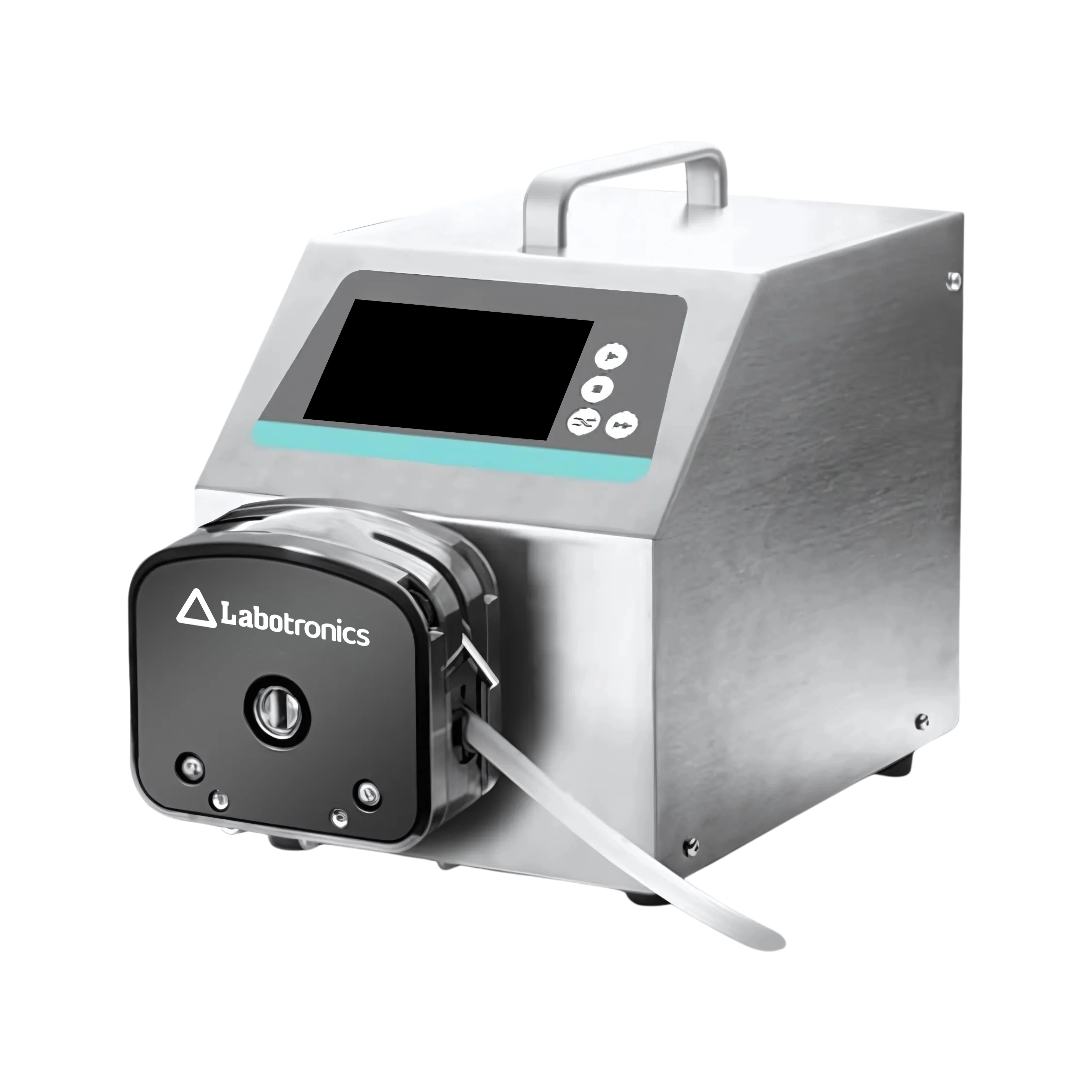

Dispensing Peristaltic Pump LB-14DPP

Dispensing Peristaltic Pump LB-14DPP

Dispensing Peristaltic Pump LB-14DPP offers a flow rate range of 0.3 to 6000 mL/min, ensuring efficient and precise fluid handling. It operates at a speed range of 0.1 to 600 rpm, enabling accurate and flexible flow control. It features an online micro-adjustment function for reliable and consistent flow correction. Our dispensing peristaltic pump is equipped with a 4.3-inch true color LCD touch screen for intuitive operation and clear parameter visualization.

$ 2882.5

Download Catalog

Specifications

Flow Rate Range 0.3 to 6000 mL/min
Flow Rate Accuracy < ± 0.5%
Flow Rate Resolution 0.01 mL
Speed Range 0.1 to 600 rpm
Speed Resolution 0.01 rpm
Back Suction Angle 0 to 360°
Temperature Range 0 to 40°C
Relative Humidity < 80%
Display 4.3-inch color LCD
Motor Type Closed-loop stepper motor
Control Method Touch screen and mechanical keypad
External Control Start/stop, direction signal
Passive: Foot pedal switch
Active: 5 to 24V switch signal
Keypad Lifetime 300,000 times
External Speed Control Signal 0 to 5V, 0 to 10V, 4 to 20mA
Communication Interface RS232, RS485 Support MODBUS protocol (RTU mode)
Output Interface Open-Collector output
Power Consumption < 180 W
Power Supply AC 220V±10% 50Hz/60Hz (standard)
AC 110V±10% 50Hz/60Hz (optional)
Dimension (L × W × H) 283 × 192 × 274 mm
Weight 7.85 kg

Features

  • Multi-mode operation

  • Closed-loop motor

  • Stainless steel housing

  • Durable circuit board

  • Intelligent calibration

  • Servo motor drive

Optional Accessories

  • 2 Meters of Silicone Tubing
  • Operation Manual × 1
  • Power Cable × 1
  • Tubing Clamps × 1 Set

Applications

Dispensing Peristaltic Pump LB-14DPP is used for precise, contamination-free liquid transfer and accurate fluid dosing. It is widely applied in pharmaceuticals, laboratories, chemical processing, cosmetics, food & beverage production, and wastewater treatment.

Pump Head And Tubing Selection

Motor Type

Pump Head

Speed Range

Flow Rate

Closed-loop stepper motor

Pump Head 1

0.1 to 600 rpm

0.3 to 6000 mL/min

Get Quote

Dispensing Peristaltic Pump LB-14DPP
Dispensing Peristaltic Pump LB-14DPP

Frequently asked questions For Dispensing Peristaltic Pump

1. How does the LB-14DPP ensure accurate and consistent fluid dispensing?

Yes, the LB-14DPP uses a closed-loop motor system with intelligent calibration features to maintain precise and stable flow control during operation. The micro-adjustment functions allow users to fine-tune the fluid output, ensuring highly accurate and consistent dispensing.

2. What features make the LB-14DPP durable and long-lasting?

Our LB-14DPP features a stainless steel housing and a robust circuit board for enhanced strength. It also includes a servo motor drive that ensures precise and stable operation, making the pump highly durable.

3. Can the LB-14DPP be integrated with external equipment or automated systems?

Yes, the LB-14DPP provides multiple communication interfaces that allow integration with external devices. It can connect to automated systems or other laboratory instruments, making it highly adaptable to different workflows.

4. What features make the LB-14DPP durable and long-lasting?

Our LB-14DPP features a stainless steel housing and a robust circuit board for enhanced strength. It also includes a servo motor drive that ensures precise and stable operation, making the pump highly durable.

5. Can the LB-14DPP be integrated with external equipment or automated systems?

Yes, the LB-14DPP provides multiple communication interfaces that allow integration with external devices. It can connect to automated systems or other laboratory instruments, making it highly adaptable to different workflows.

6. How does the LB-14DPP ensure accurate and consistent fluid dispensing?

Yes, the LB-14DPP uses a closed-loop motor system with intelligent calibration features to maintain precise and stable flow control during operation. The micro-adjustment functions allow users to fine-tune the fluid output, ensuring highly accurate and consistent dispensing.

7. What are dispensing peristaltic pumps?

Our dispensing peristaltic pumps are designed to accurately move and dispense liquids through flexible tubing while preventing any contamination. They are widely used in laboratories and industries for precise liquid transfer.

8. How easy is it to maintain a peristaltic pump?

Yes, Labotronics pumps are designed for easy maintenance. Regular inspection and replacement of the tubing, along with cleaning the pump head, are usually all that’s needed to keep the pump running smoothly.

9. Do the pumps have safety features to prevent damage?

Labotronics pumps feature safety mechanisms such as overload detection and tubing failure alarms to protect the device. These features help maintain a reliable and safe operation.

10. What kinds of liquids can I dispense with a dispensing peristaltic pump?

Labotronics dispensing peristaltic pumps can handle a wide range of liquids, including chemicals, reagents, pharmaceuticals, and even viscous fluids. They are suitable for both corrosive and sterile liquids since the fluid only contacts the tubing.

11. Is the pump suitable for continuous or batch dispensing?

Yes, the pump is suitable for both continuous and batch dispensing. It can provide a steady flow for continuous applications or precise volume control for batch processes. This flexibility makes it ideal for various laboratory and industrial uses.
