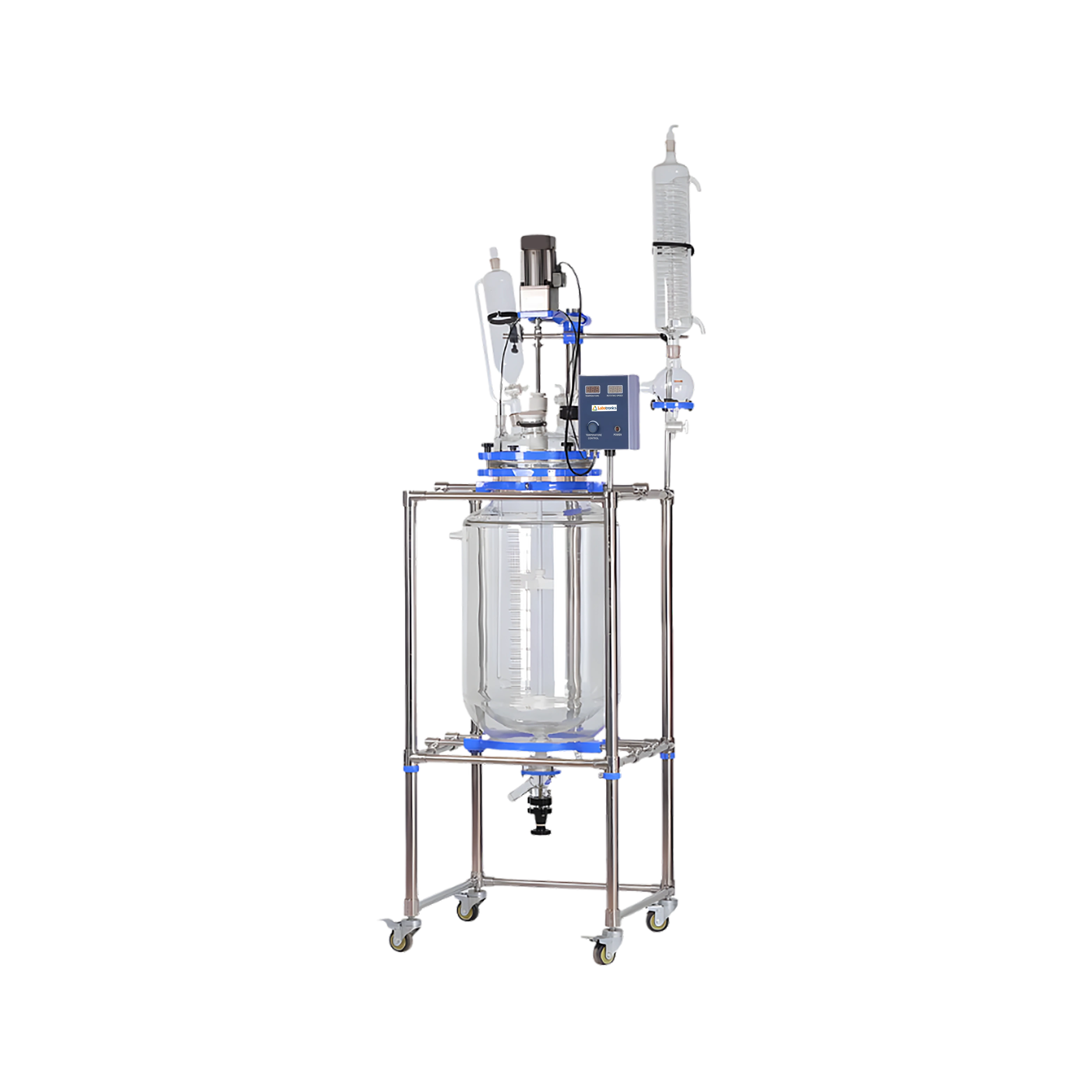

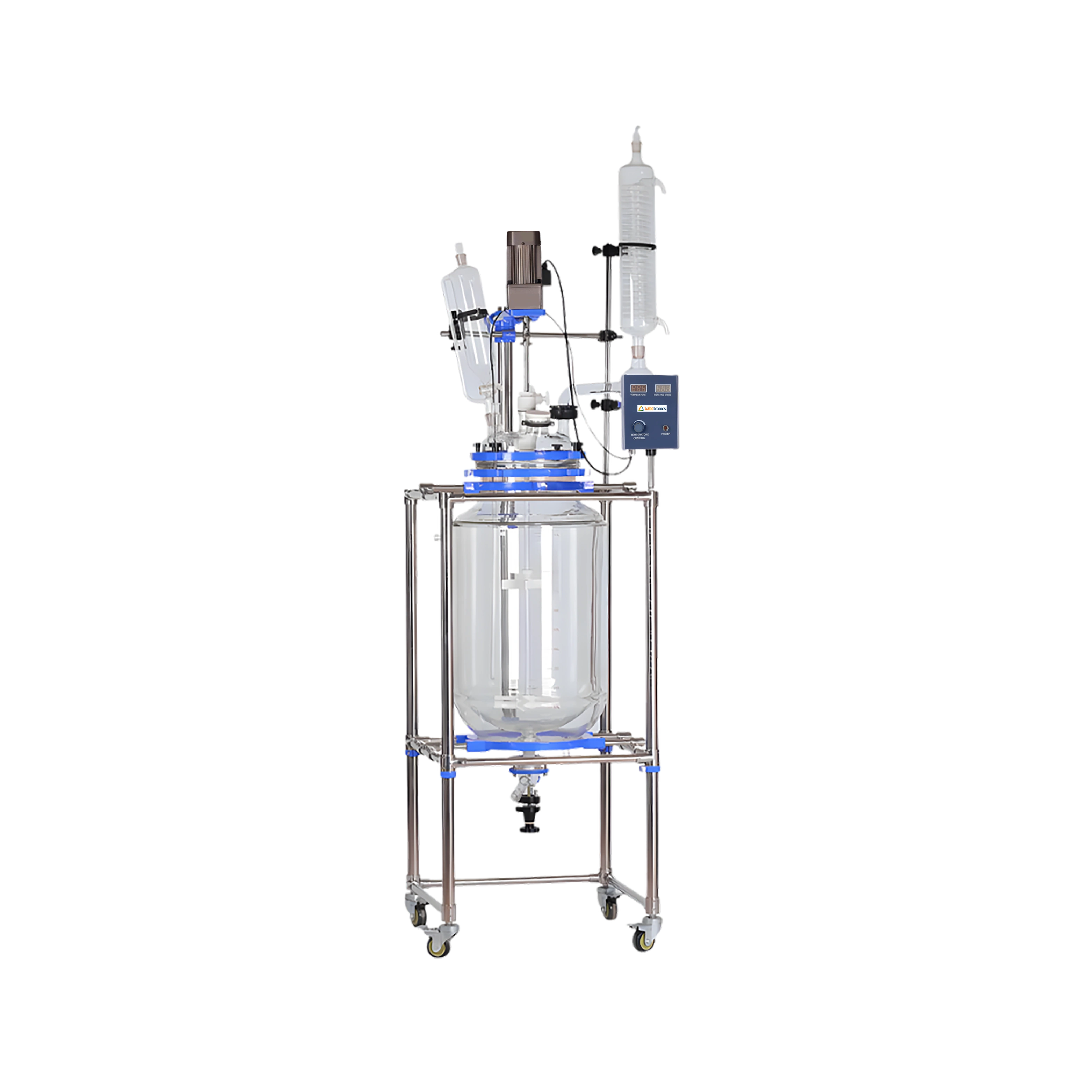

Double Glass Jacketed Reactor LB-24DGR is equipped with a double level glass and a reaction flask capacity from 5L. Stirring speed of about 0 to 600 rpm maintains a high vacuum degree. The inner jacket can be filled with a low temperature or a high temperature reaction material which provides versatility to this device.
Buy Now Download CatalogSpecifications
| Reaction flask capacity | 5 |
| Stirring power | 60 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Voltage | 220 V; 50 Hz/60 Hz |
| Motor torque | 4800 g/cm |
| Type | Floor type |
Features
Applications
Used to carry out extraction or distillation of the sample where the circulation of fluid is carried out under highly insulated reaction temperature.
What our customers say
SACHINI SAMUDIKA
1 year ago
Dr. Muhammad Tariq Javid
1 month ago
GHALI ABOUARABI
9 months ago
Add a review
| Reaction flask capacity | 2 |
| Stirring power | 60 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 10 |
| Stirring power | 120 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 100 |
| Stirring power | 180 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 15 mm |
| Reaction flask capacity | 20 |
| Stirring power | 120 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 1 |
| Stirring power | 60 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 3 |
| Stirring power | 60 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 30 |
| Stirring power | 120 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
| Reaction flask capacity | 50 |
| Stirring power | 120 W |
| Stirring speed | 0 ~ 600 rpm |
| Stirring shaft diameter | 12 mm |
Our single jacketed glass reactor is a laboratory apparatus used for various chemical processes. It consists of a glass vessel with a single outer layer that can be used to heat or cool the contents of the reactor. This design is ideal for maintaining the temperature of the reaction mixture during processes like synthesis, distillation, crystallization, and mixing of chemicals. Our single jacketed glass reactors are valuable tools in research, development, and production across chemistry, pharmaceuticals, and other scientific fields, providing a safe and controlled space for chemical processes where precise temperature control is not critical.
| Capacity | 30 L |
| Heating mantle power | 3.8 kW |
| Motor torque | 1200 g/cm |
| Temperature range | RT ~ 250 °C/ RT ~ 350 °C |
| Capacity | 1 L |
| Heating mantle power | 0.53 kW |
| Motor torque | 2000 g/cm |
| Temperature range | RT ~ 250 °C/ RT ~ 350 °C |
| Capacity | 5 L |
| Heating mantle power | 1.1 kW |
| Motor torque | 4800 g/cm |
| Temperature range | RT ~ 250 °C/ RT ~ 350 °C |
| Capacity | 3 L |
| Heating mantle power | 0.73 kW |
| Motor torque | 2400 g/cm |
| Temperature range | RT ~ 250 °C/ RT ~ 350 °C |
Labotronics jacketed glass reactor is a versatile laboratory apparatus used for various chemical processes. It consists of a glass vessel with an outer "jacket" layer that can be filled with a temperature-regulating fluid, allowing precise temperature control during reactions. This design is ideal for heating, cooling, or maintaining the temperature of the reaction mixture, making it suitable for a wide range of applications, including synthesis, distillation, crystallization, and mixing of chemicals. Our jacketed glass reactors are essential tools in research, development, and production across chemistry, pharmaceuticals, and other scientific fields, providing a safe and controlled space for chemical processes.
| Reaction volume | 20 L |
| Jacket volume | 5 L |
| Rotating speed | 0 rpm ~ 600 rpm |
| Working temp. range | -60 °C ~ 200°C |
| Reaction volume | 80 L |
| Jacket volume | 20 L |
| Rotating speed | 0 rpm ~ 600 rpm |
| Working temp. range | -60 °C ~ 200 °C |
| Reaction volume | 50 L |
| Jacket volume | 15 L |
| Rotating speed | 0 rpm ~ 600 rpm |
| Working temp. range | -60 °C ~ 200°C |
| Reaction volume | 10 L |
| Jacket volume | 3 L |
| Rotating speed | 0 rpm ~ 600 rpm |
| Working temp. range | -60 °C ~ 200 °C |
