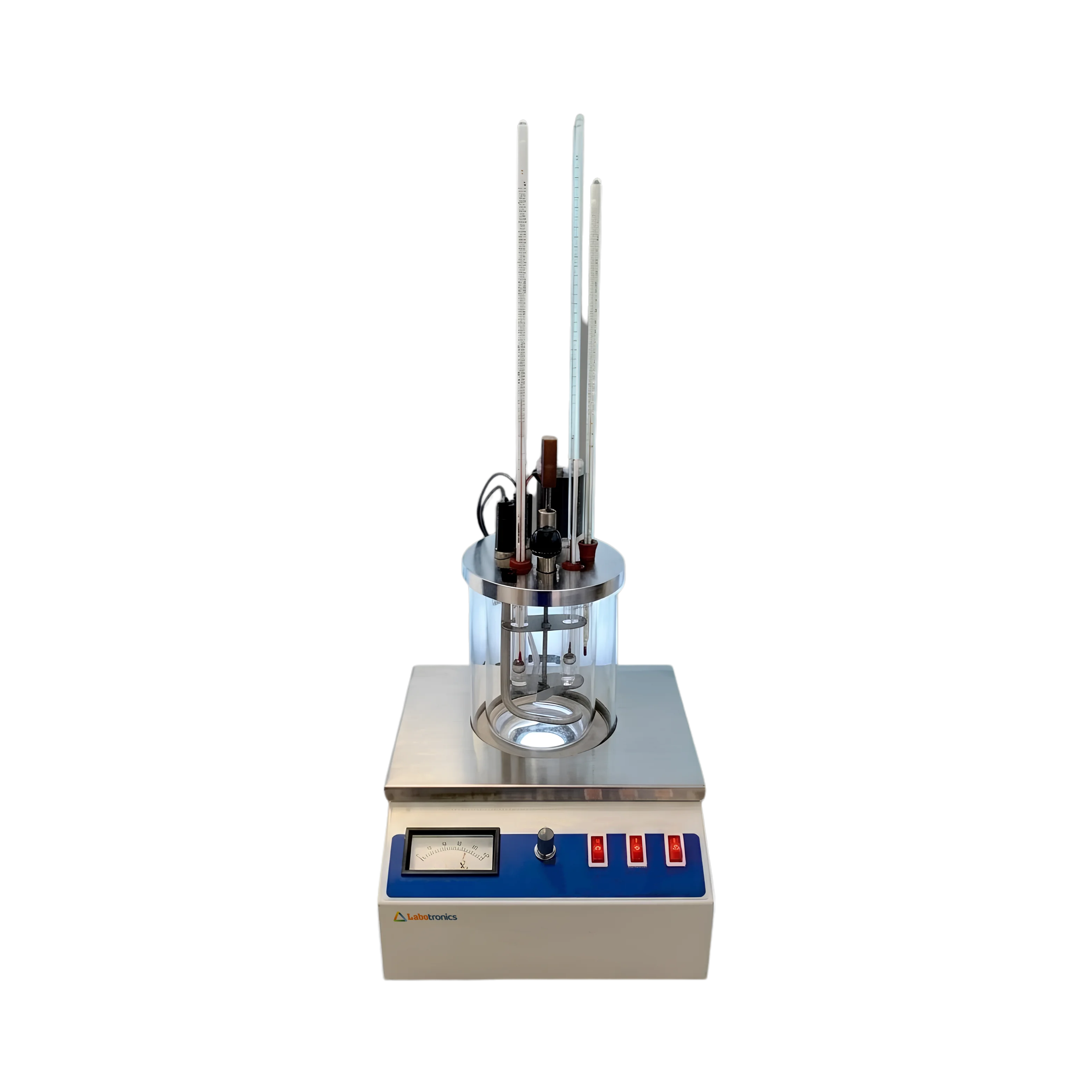

Dropping point tester LB-11DRT is a tabletop unit with stepless voltage regulation. The unit provides simultaneous dual sample testing to improve workflow efficiency. Conforms to ASTM D566 standard test method for dropping point of lubricating grease.
Request Quote Download CatalogSpecifications
Glass bath capacity | 800 mL |
Test hole | 2 |
Stirring method | Engine |
Stirring speed | 500 rpm |
Ambient temperature | 10 °C ~ 40 °C |
Relative humidity | ≤ 85 % |
Compliance | ASTM D566 |
Power (continuous adjustable) | 0 W ~ 800 W |
Power supply | AC 220 V ± 10 %, 50 Hz |
Dimensions | 250 x 300 x 350 mm |
Weight | 5.5 kgs |
Features
Applications
Used in research, aviation, petroleum and oil industries to determine dropping point of lubricating grease for classification, analysis and quality control purpose.
Temperature control range | RT ~ 400 °C |
Temperature control accuracy | ± 3 °C |
Temperature control point | 232 °C 288 °C 343 °C |
Glass bath capacity |
Temperature control range | |
Temperature control accuracy | |
Temperature control point | |
Glass bath capacity | 800 mL |
Temperature control range | |
Temperature control accuracy | |
Temperature control point | |
Glass bath capacity |
