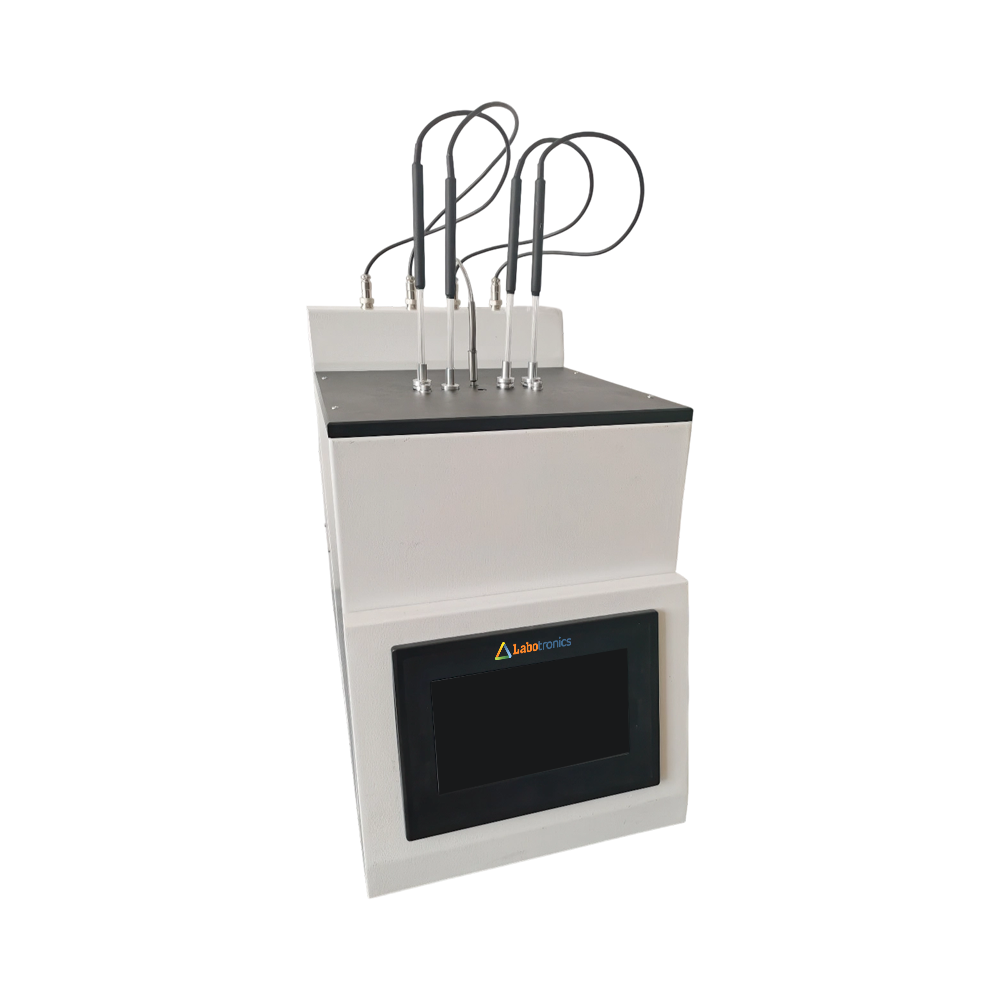

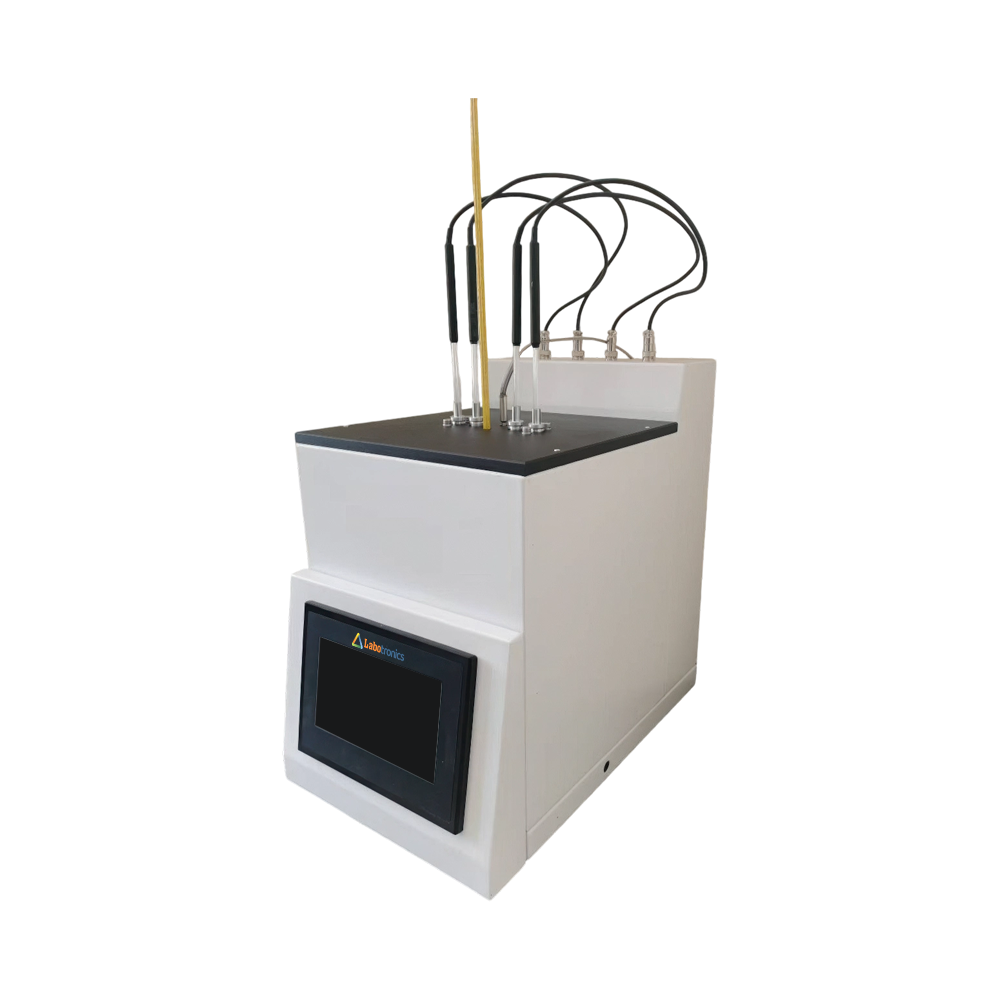

High Temperature Dropping Point Tester LB-20DRT

High Temperature Dropping Point Tester LB-20DRT

Name: High Temperature Dropping Point Tester LB-20DRT
Brand: Labotronics
SKU: LB-20DRT
Rating: 4.5 (521 reviews)

High temperature dropping point tester LB-20DRT is an automatic unit with high power heating module for stable operation. Touch screen operating panel makes it easier for convenient use. Conforms to ASTM D2265 standard test method for dropping point of lubricating grease.

$ 13862.5

Download Catalog

Specifications

Detection mode	Infrared scanning
Test hole	4
Alarm mode	Audible and visual system
Display screen	LCD (Touch screen)
Ambient temperature	10 °C ~ 40 °C
Relative humidity	≤ 85 %
Compliance	ASTM D2265
Power consumption	1500 W
Power supply	AC 220 V ± 10 %, 50 Hz
Dimensions	305 x 380 x 365 mm
Weight	13 kgs

Features

Indicating light and buzzer alarm for user convenience
Corrosion resistance stainless steel apparatus
Automatic record and print function
Output interface: LIMS (Laboratory Information Management System)

Applications

Used in research, aviation, petroleum and oil industries to determine dropping point of lubricating grease for classification, analysis and quality control purpose.

Dropping Point Tester LB-10DRT

Temperature Control Range	400℃
Temperature Control Point	121℃，232℃，288℃，343℃
Temperature control accuracy	± 3℃
Grease Cup Material	Chrome plated copper
Power Consumption	800W
