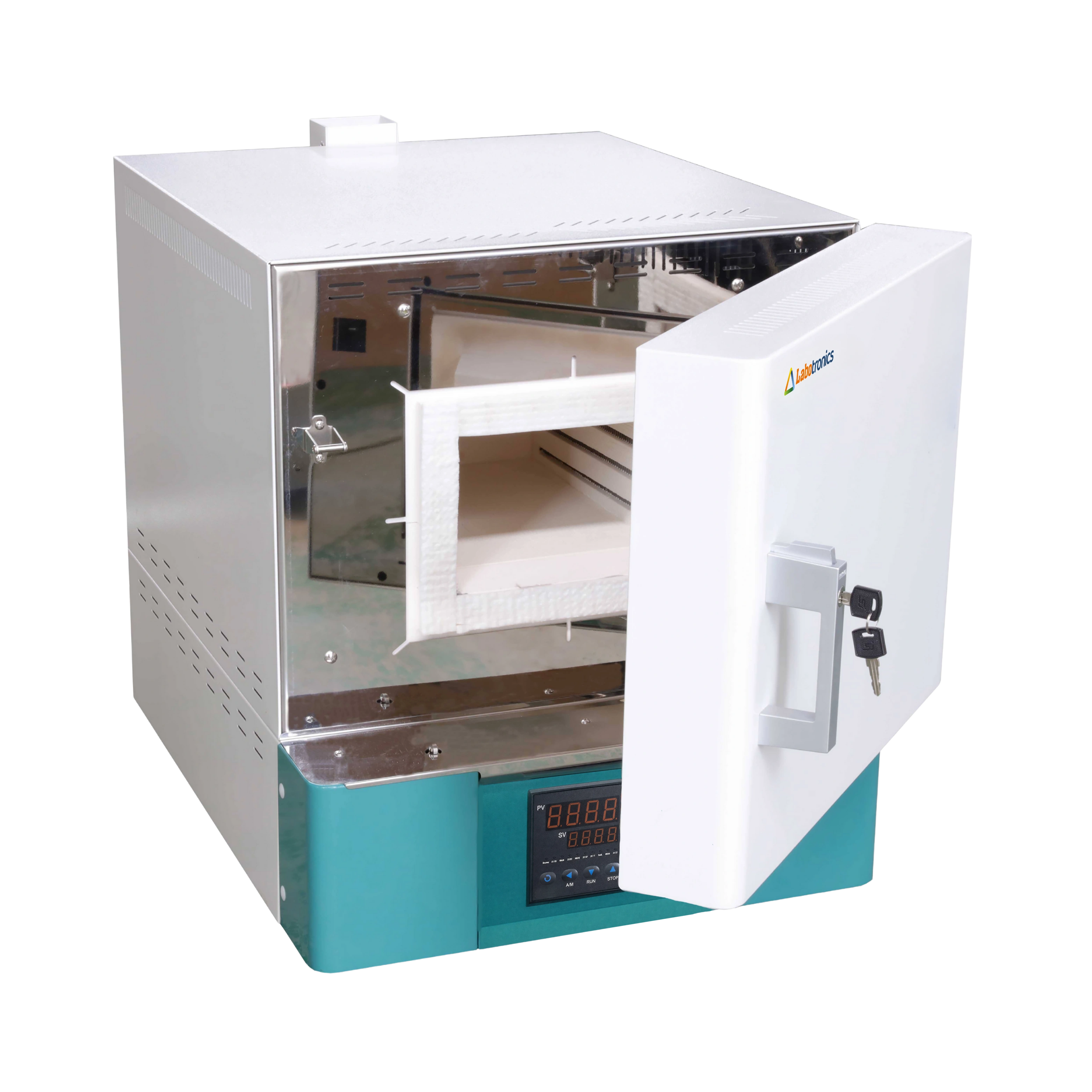

Electric Muffle Furnace LB-10ELMF

Name: Electric Muffle Furnace LB-10ELMF
Brand: Labotronics
SKU: LB-10ELMF
Rating: 4.8 (591 reviews)

Electric muffle furnace LB-10ELMF is a table top unit with ceramic type heating chamber. Microprocessor PID auto-tuning controller installed at the base of chamber controls heat temperature, air flow and pressure. FeCrAl alloy molded heating elements aids in instant uniform heating inside chamber. It incorporates separate heating cabinet from control box to protect the electronic controller. Safety devices include ELB ( elastic load balancing ), self-diagnosis function such as temperature, SSR short circuit and sensor short circuit for end user safety.

$ 3825

Download Catalog

Specifications

Capacity	4.5 L
Chamber dimensions ( W × D × H )	150 × 300 × 100 mm
Working temperature range	300 °C ~ 900 °C
Heating power	3 kW
Maximum temperature range	1000 °C
Temperature accuracy ( at setting temperature )	± 1 %
Power	AC 230 V 50 Hz / 60 Hz ( 1 phase )
Overall dimensions ( W × D × H )	415 × 555 × 560 mm
Net weight	48 kgs

Features

Fiber and ceramic insulation
Heat resistant panel
Digital display parameters viewing and control
Twin fold wall structure (temperature cooling)
Heating elements (prevention from corrosive gas and water vapor contact)
K type thermocouple (Chromel/Alumel) exhibits good corrosion resistance
Solid-state relay (SSR) type temperature regulator (heat dissipation)
Molded ceramic block (interior material)
Steel plate with powder coated finish (exterior material)

Applications

Used in biotechnology research laboratories, materials testing, heat treatment, annealing, glass melting, metal melting and casting molding.

Get Quote

Electric Muffle Furnace LB-11ELMF

Capacity	14 L
Chamber dimensions ( W × D × H )	250 × 350 × 160 mm
Working temperature range	300 °C ~ 900 °C
Heating power	4.5 kW
Maximum temperature range	1000 °C

$ 5050

Electric Muffle Furnace LB-12ELMF

Capacity	63 L
Chamber dimensions ( W × D × H )	350 × 450 × 400 mm
Working temperature range	300 °C ~ 900 °C
Heating power	12 kW
Maximum temperature range	1000 °C
