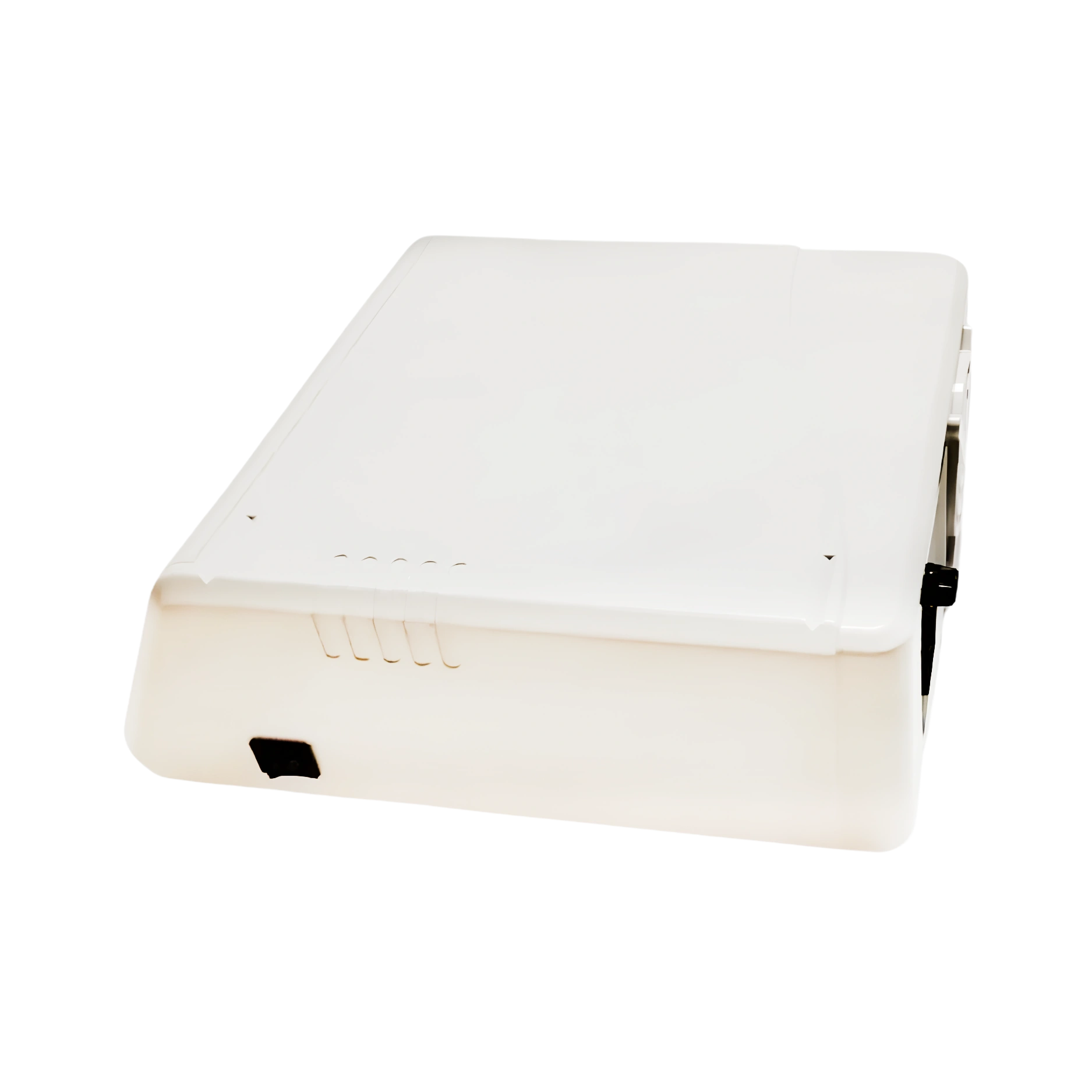

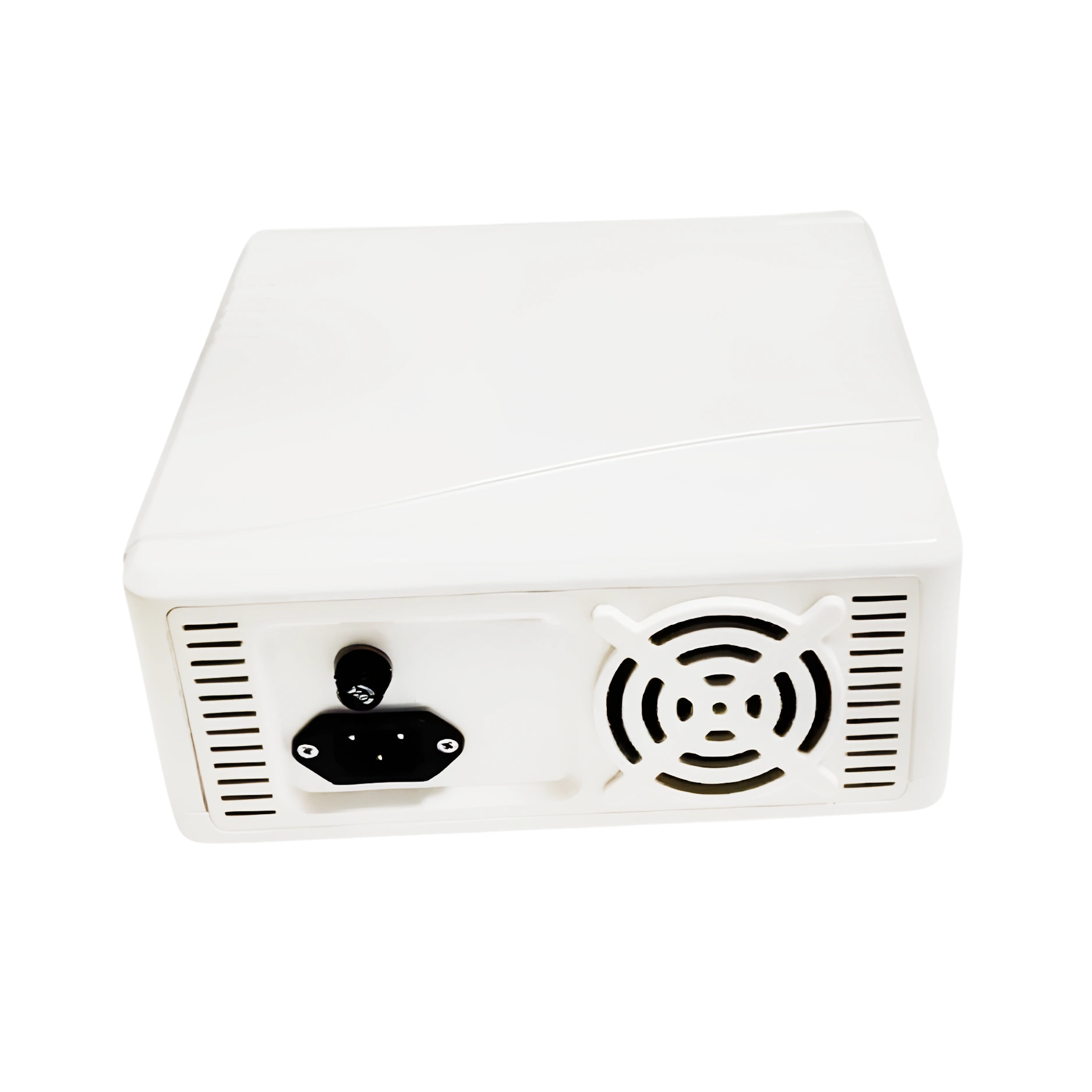

Electrophoresis Power Supply Unit LB-16EPS

Electrophoresis Power Supply Unit LB-16EPS

Name: Electrophoresis Power Supply Unit LB-16EPS
Brand: Labotronics
SKU: LB-16EPS
Rating: 4.5 (506 reviews)

Electrophoresis Power Supply Unit LB-16EPS offers a voltage range of 5 to 200 V, ensuring accurate power output. It features four output jack sets, allowing simultaneous connection to multiple electrophoresis tanks and enhancing overall efficiency. It delivers a maximum current of 2000 mA, ensuring sufficient power for reliable results. It features an integrated LCD with a backlight, providing clear readability and enhanced visibility.

$ 2250

Download Catalog

Specifications

Output Voltage	5 to 200 V
Output Current	1 to 2000 mA
Output Power	1 to 200 W
Output Terminal	4 pairs in parallel
Type of Control	Constant V, Constant I, and Constant P
Storage Function	Store 100 methods
Programming Method	Can store 10 methods, each up to 10 steps
Timing Function	1 min to 99 h 59 min
V-Hr Function	1 to 99999 V-hr
Dimensions	280 × 237 × 118 mm
Weight	3.2 kg

Features

Pause control function
Automatic memory function
Overheat protection
Molding machine casing
Integrated with safety features

Applications

Electrophoresis Power Supply Unit LB-16EPS is used for DNA/RNA fragment analysis and protein electrophoresis. It is widely used in molecular biology, pharmaceutical, and biotech labs for quality control.

1. What role does a power supply play in electrophoresis experiments?

An electrophoresis power supply delivers the controlled voltage and current necessary to separate DNA, RNA, or proteins during gel electrophoresis.

2. Is it possible to connect multiple gel systems to one power supply?

Yes, many of our models include multiple outputs so that two or more gel tanks can run at the same time.

3. What built-in protections do electrophoresis power supplies offer?

Our Electrophoresis Power Supplies usually feature overload protection, auto shutoff on short-circuits, insulated connections, and leakage detection to ensure operator safety.

4. Do electrophoresis power supplies allow programming of runs?

Yes, Labotronics modern units often include programmable settings, enabling users to set voltage ramps, time-based steps, and automatic stop functions.
