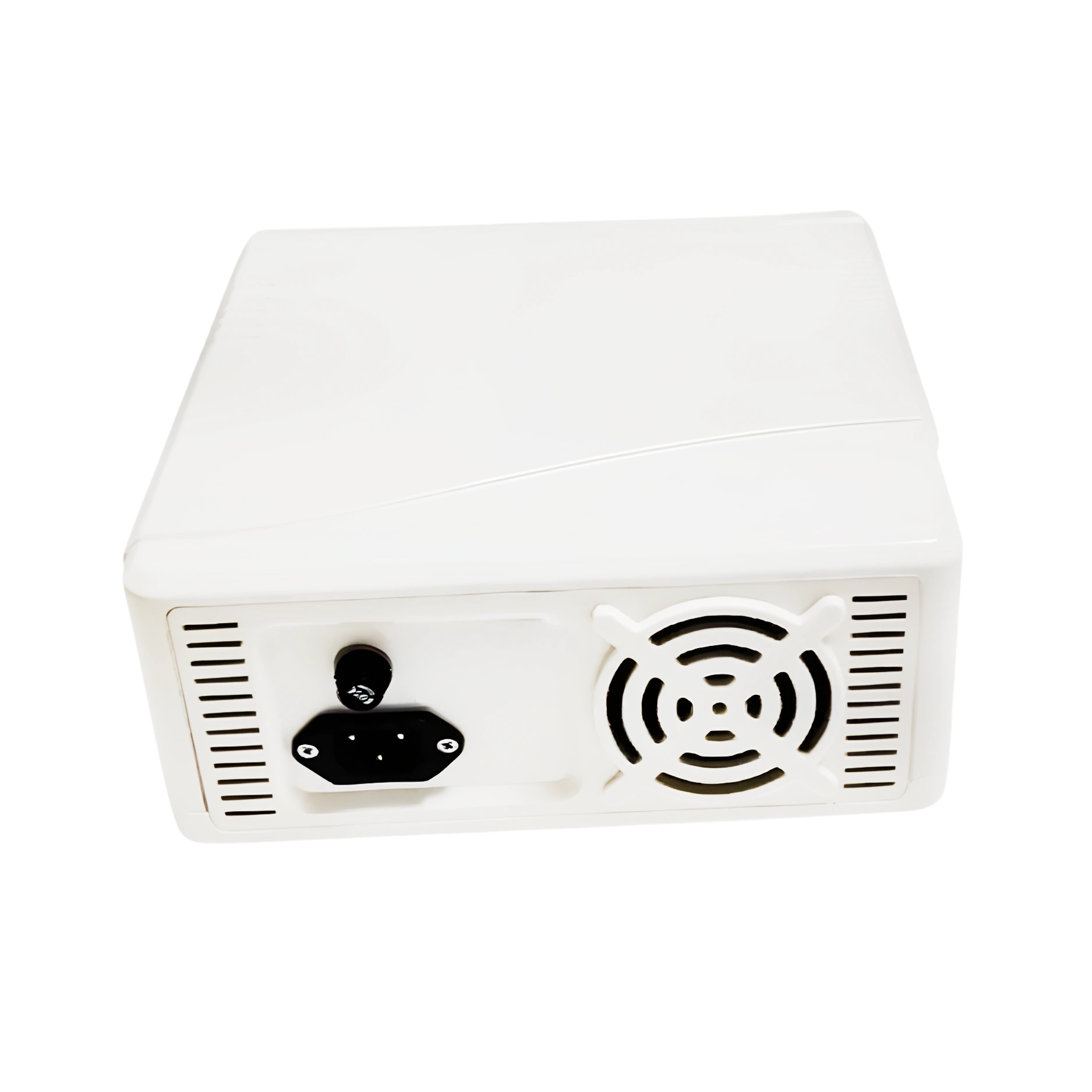

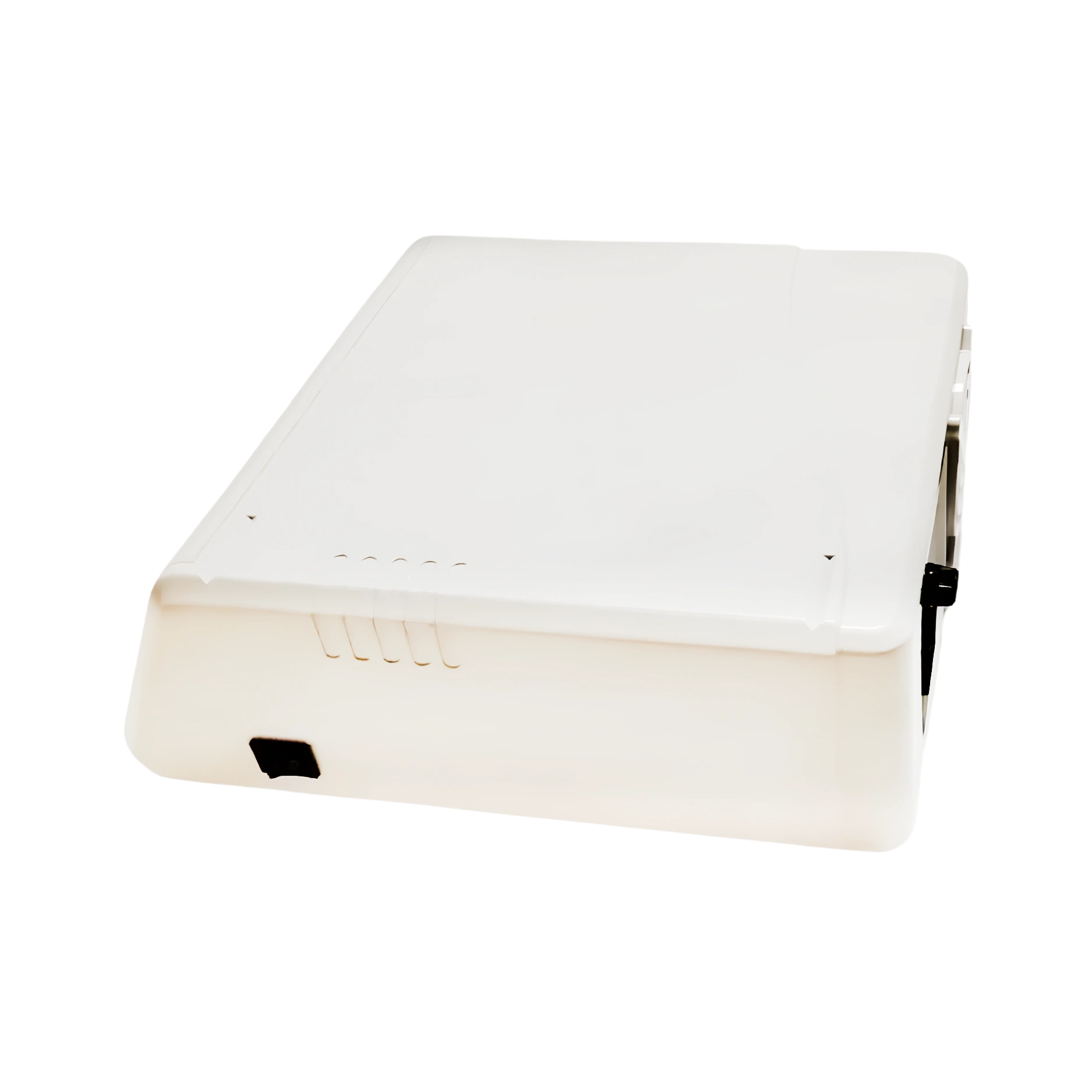

Electrophoresis Power Supply Unit LB-41EPS
Electrophoresis Power Supply Unit LB-41EPS features an adjustable voltage range from 10 to 1600 V, providing reliable power for diverse electrophoresis applications. It offers a maximum current of 200 µA and a maximum power output of 320 W, providing efficient performance. It is equipped with four output jack sets, allowing parallel operation of multiple electrophoresis units for improved workflow and versatility. It is constructed from high-quality, durable materials to ensure long-lasting performance.
$ 2250
Download CatalogSpecifications
| Output Voltage | 10 to 1600 V |
| Output Current | 1 to 200 µA |
| Output Power | 1 to 320 W |
| Output Terminal | 4 pairs in parallel |
| Types of Control | Constant V, Constant I, Constant P |
| Storage Function | Store 100 methods |
| Programming Method | Up to 10 methods, each with up to 10 steps |
| Timing Function | 1 min to 99 h 59 min |
| V-hr Function | 1 to 99999 V-hr |
| Dimensions | 263 × 275 × 125 mm |
| Weight | 4.4 kg |
Features
Automatic memory function
Pause control function
LED display
- Stable operation
- Autocut function
- Safety features
Applications
Electrophoresis Power Supply Unit LB-41EPS is used for DNA/RNA fragment analysis and protein electrophoresis. It is widely used in molecular diagnostics, biochemistry, and biotech labs for quality control.
Frequently asked questions For Electrophoresis Power Supplies
1. What role does a power supply play in electrophoresis experiments?
An electrophoresis power supply delivers the controlled voltage and current necessary to separate DNA, RNA, or proteins during gel electrophoresis.
2. Is it possible to connect multiple gel systems to one power supply?
Yes, many of our models include multiple outputs so that two or more gel tanks can run at the same time.
3. What built-in protections do electrophoresis power supplies offer?
Our Electrophoresis Power Supplies usually feature overload protection, auto shutoff on short-circuits, insulated connections, and leakage detection to ensure operator safety.
4. Do electrophoresis power supplies allow programming of runs?
Yes, Labotronics modern units often include programmable settings, enabling users to set voltage ramps, time-based steps, and automatic stop functions.
