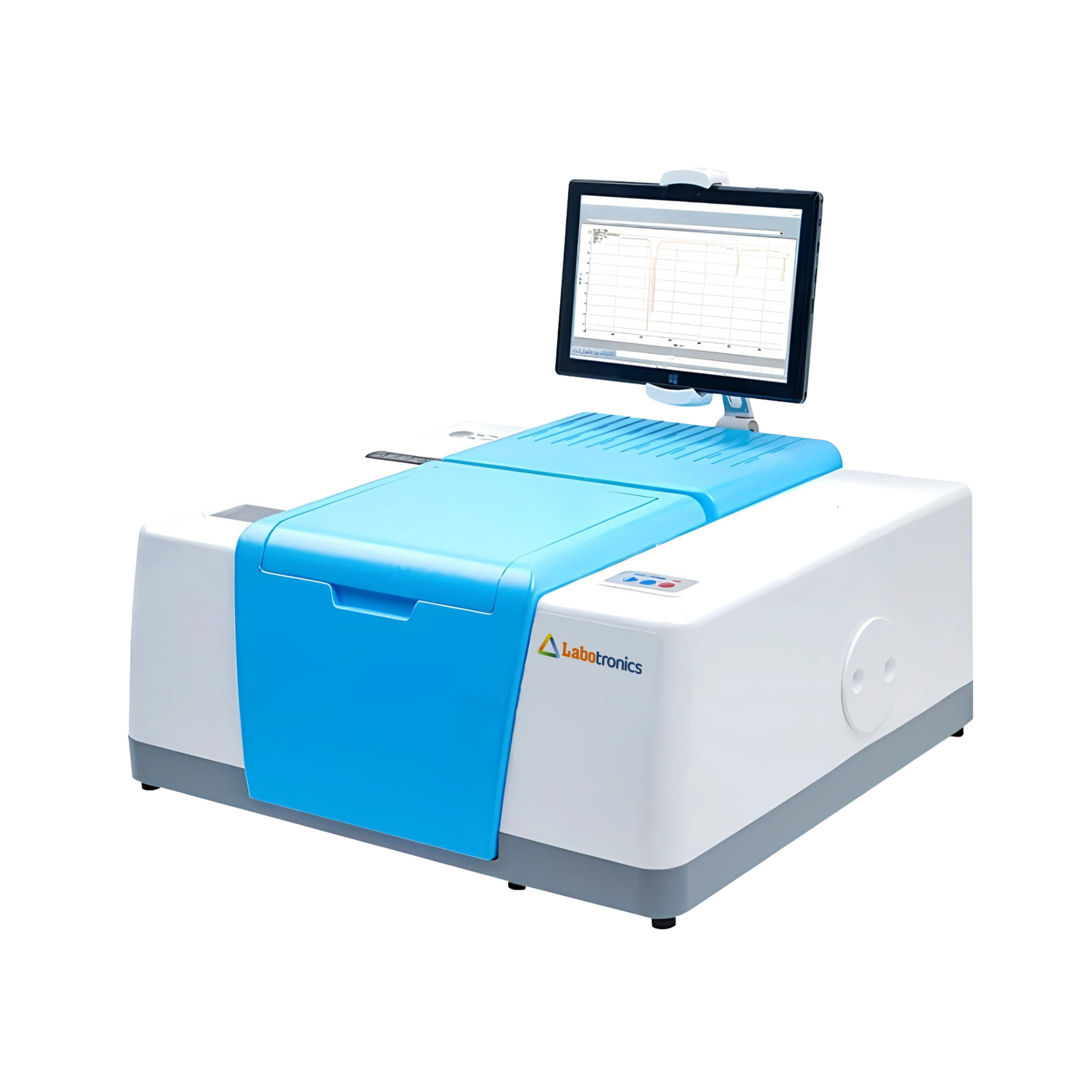

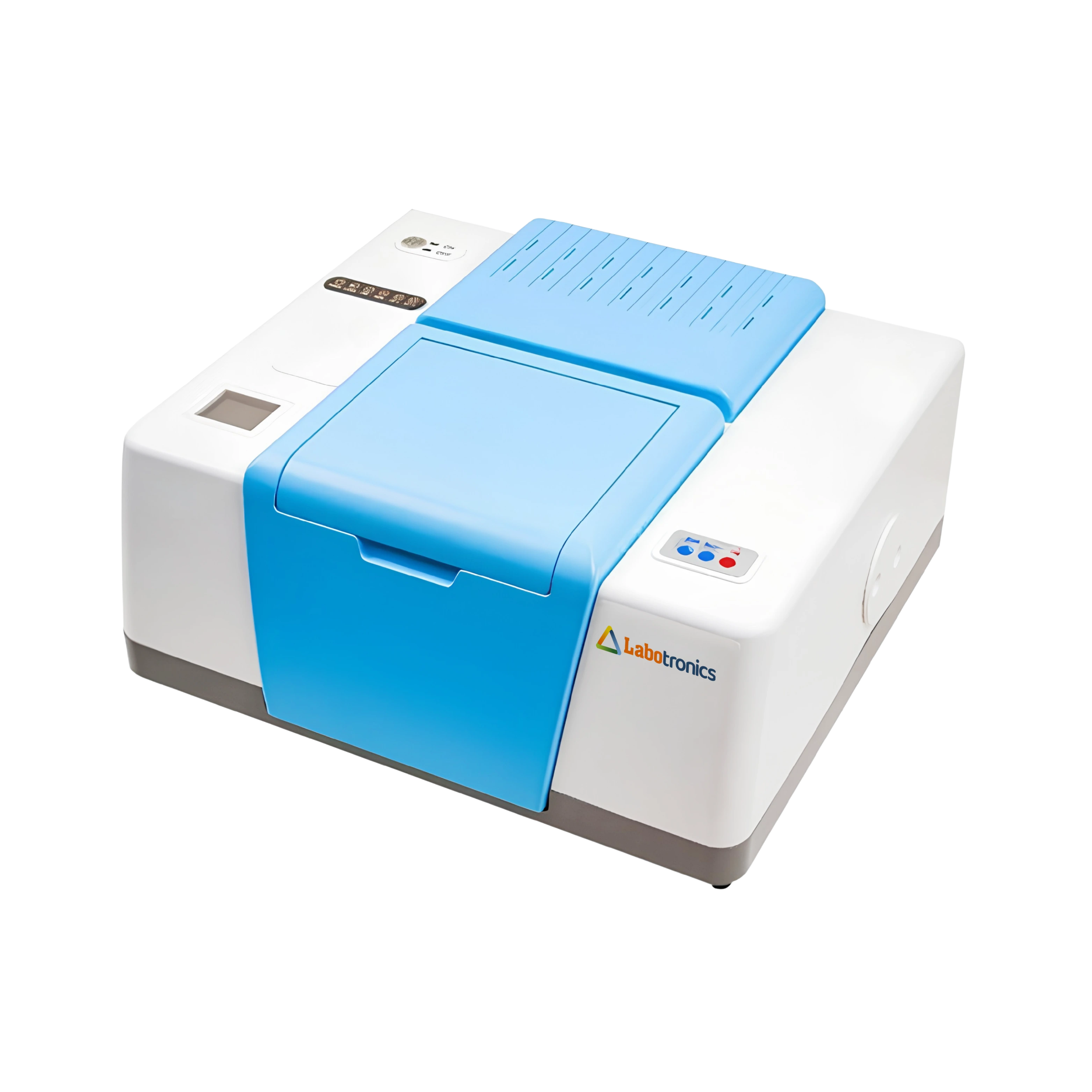

FTIR Spectrometer LB-13FTIR uses Fourier Transform Infrared (FTIR) spectroscopy, with a spectral range of 500 to 6,000 cm⁻¹ and spectral resolution of ≤ 0.8 cm⁻¹, allowing detailed identification and analysis of a wide range of compounds. The permanently aligned interferometer and sealed, desiccated ZnSe optics maintain measurement stability over time without frequent realignment or maintenance. The built-in ATR sampling module with diamond and germanium crystal allows direct sample analysis without extensive sample preparation.
$ 59375
Download CatalogSpecifications
| Operating Principle | Fourier Transform Infrared (FTIR) Spectroscopy |
| Spectral Range | 500 to 6,000 cm⁻¹ |
| Spectral Resolution | ≤ 0.8 cm⁻¹ |
| Wave Number Accuracy | ±0.05 cm⁻¹ |
| Wave Number Precision | ≤ 0.0008 cm⁻¹ |
| Signal-to-Noise Ratio | ≥ 55,000 : 1 |
| Detector | DLaTGS Detector |
| Interferometer | Permanently Aligned |
| Optics | ZnSe Optics with Gold-Coated Mirror, Sealed and Desiccated |
| Sampling Module | ATR with Monolithic Diamond and Germanium Crystal |
| Software | Windows-Based FTIR Software |
| Type | Table Top |
| Dimensions | ≤ 400 × 400 × 300 mm |
| Power Supply | 220 to 240 VAC, 50 to 60 Hz |
Features
Optional Accessories
Applications
FTIR Spectrometer LB-13FTIR supports pharmaceuticals, chemistry, material science, and academic research through qualitative and quantitative infrared analysis of solids, liquids, and gases.
Frequently asked questions For Fourier Transform Infrared Spectrometer
1. What is the primary function of a Labotronics FTIR spectrometer?
A Labotronics FTIR spectrometer is designed for precise molecular analysis by measuring infrared absorption across a wide spectral range.
2. How does a Labotronics FTIR spectrometer ensure accurate and consistent results?
Labotronics FTIR spectrometers use advanced interferometry and high-resolution detection to maintain stable signal quality and repeatable measurements.
3. Can Labotronics FTIR spectrometers be used with various sample types?
Yes, Labotronics FTIR spectrometers support the analysis of solids, liquids, and gases, offering broad compatibility for different laboratory needs.
4. Is the Labotronics FTIR spectrometer easy to operate in routine lab workflows?
Yes, Labotronics FTIR spectrometers feature a compact structure and intuitive controls, enabling smooth operation in both research and quality control labs.
5. Can Labotronics FTIR spectrometers be used repeatedly without frequent recalibration?
Yes, Labotronics FTIR spectrometers are built for long-term reliability and require minimal recalibration, ensuring consistent performance and reduced maintenance.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Wave Number Range | 7800 to 375 cm-1 |
| Resolution | 1 cm-1 |
| Wave Number Repeatability | 1 cm-1 |
| Wave Number Accuracy | 0.01 cm-1 |
| Signal-to-Noise Ratio | 30000:1 |
| Spectral Range | 7800 to 350 cm⁻¹ |
| Resolution Ratio | Better than 1.0 cm⁻¹ |
| Wave Number Accuracy | 0.01 cm⁻¹ |
| Signal to Noise Ratio | 45000 : 1 |
| Interferometers | Automatic calibration |
| Spectral range | 4000 cm -1 ~ 400 cm-1 |
| Light source | Air cooled IR light source |
| Signal noise ratio | 15000 : 1 |
| Resolution | 1.5 cm -1 |
| Beam splitter | Coated KBr |
