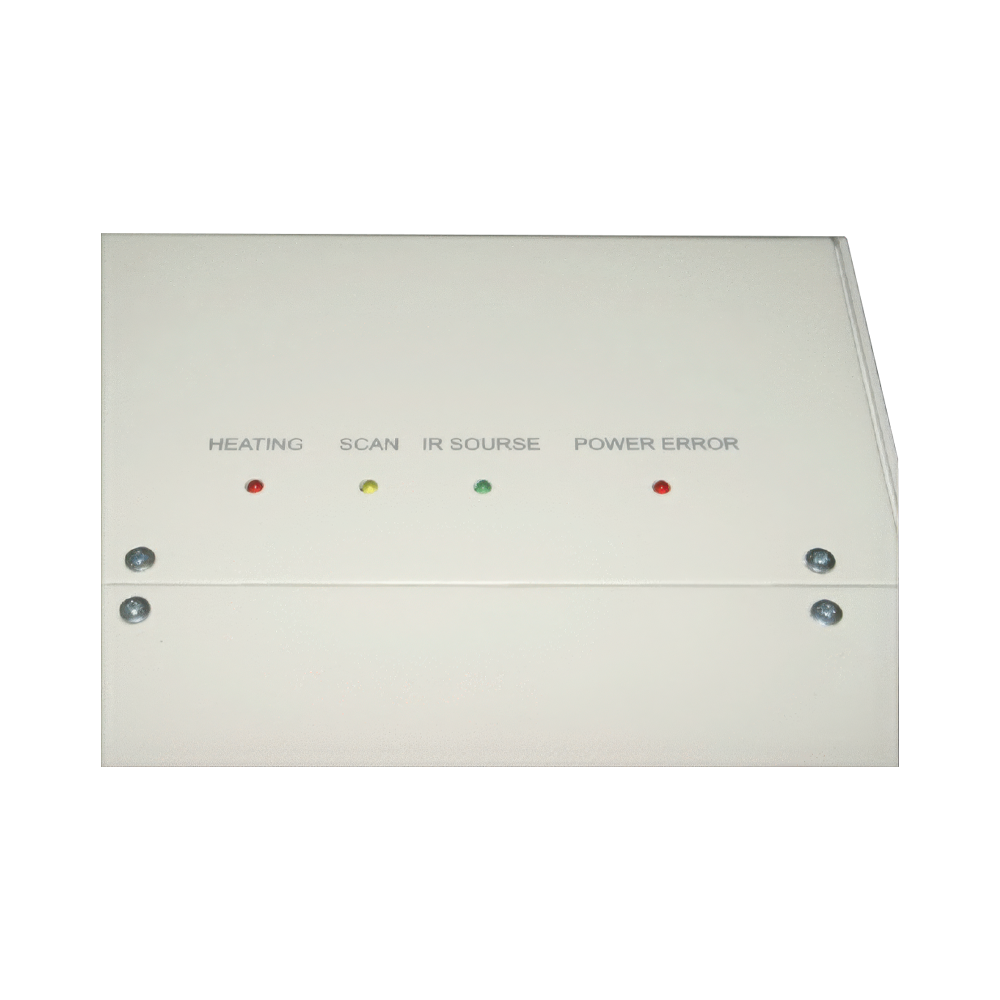

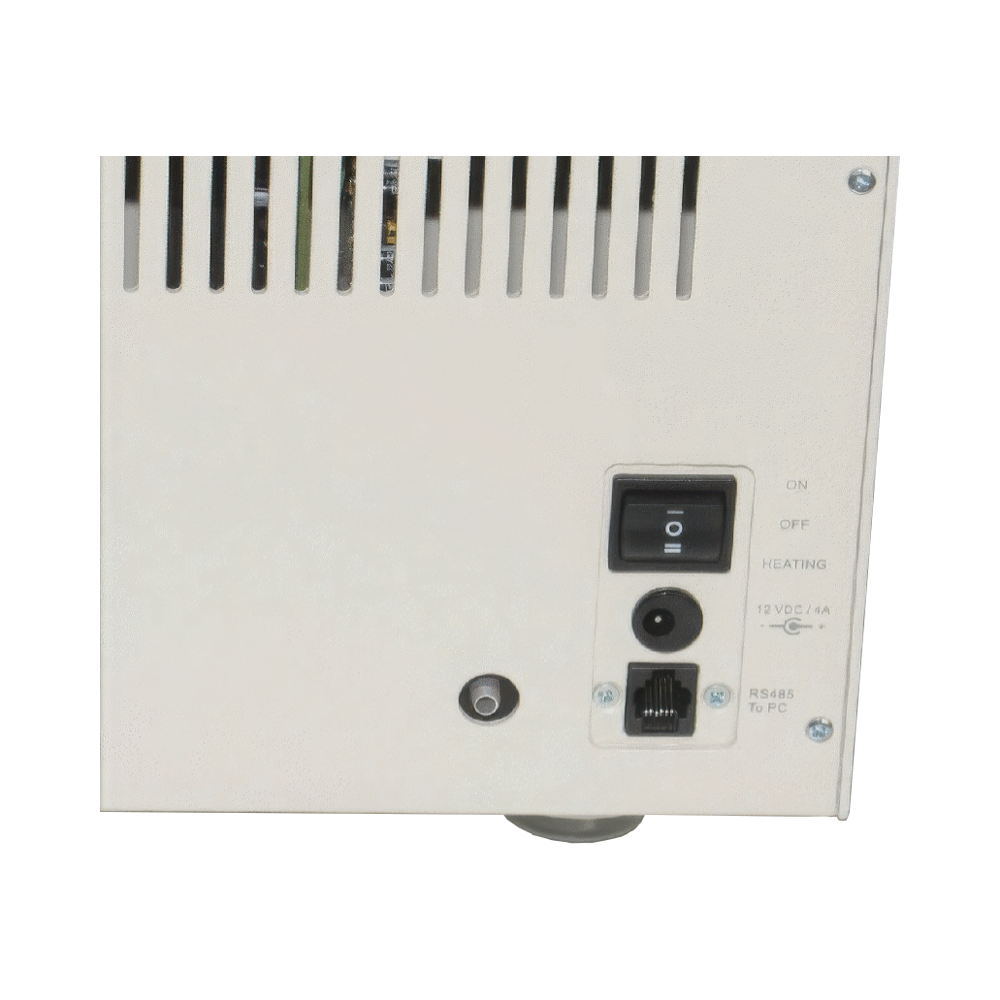

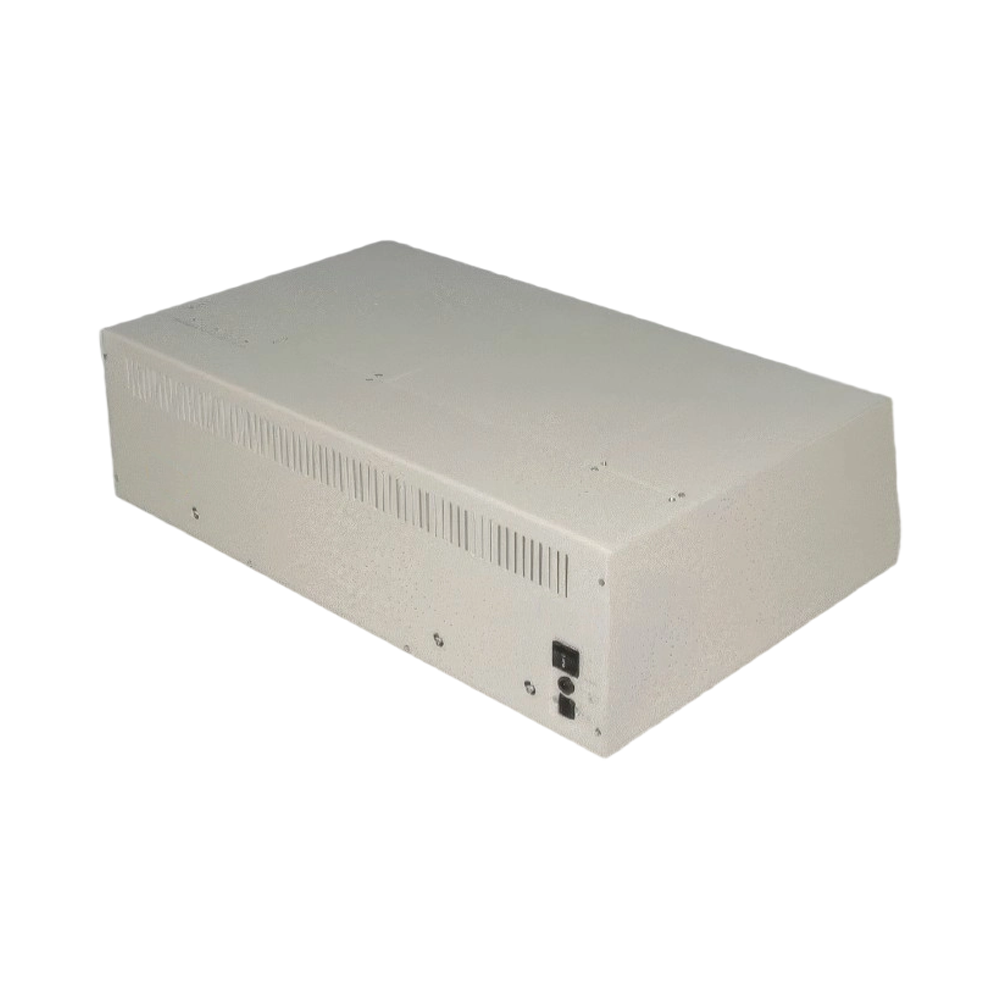

FTIR Spectrometer LB-12FTIR offers a broad spectral range of 7800 to 350 cm⁻¹ with high resolution and wavenumber accuracy for reliable infrared analysis. It includes a low-noise detector, and laser, for stable, accurate signal detection. It features automatic interferometer calibration, ensuring stable operation and accurate measurement results. Our FTIR spectrometer ensures real-time data transmission for fast and accurate analysis.
$ 16175
Download CatalogSpecifications
| Spectral Range | 7800 to 350 cm⁻¹ |
| Resolution Ratio | Better than 1.0 cm⁻¹ |
| Wave Number Accuracy | 0.01 cm⁻¹ |
| Signal to Noise Ratio | 45000 : 1 |
| Interferometers | Automatic calibration |
| Environmental Temperature | 15 to 28 °C |
| Relative Humidity | < 65 % |
| Light Source | Imported long-life and high-strength air-cooled ceramic infrared light source |
| Beam Splitter | Imported multi-layer coated KBr with moisture-proof coating |
| Beam Splitter Diameter | 60 mm |
| Baseline Straightness | ≤ 0.1 % T |
| Detector | Imported low noise DLATGS |
| Laser | VCSEL Laser |
| Scanning Speed | 2 mm / s |
| Sample Beam Diameter | 10 mm |
| Beam Diameter | 30 mm |
| Aperture Ratio | 1 / 3.2 |
| Operating System | Win10 and above systems |
| Data Transmission | USB 2.0 |
| Power Consumption | 40 W |
| Sample Room Size | 200 × 260 × 160 mm |
| External Dimension | 590 × 390 × 190 mm |
| Packing Dimension | 780 × 720 × 380mm |
| Net Weight | 26 kg |
| Gross Weight | 62 kg |
Features
Stable optical design
Moisture-proof beam splitter
Durable beam splitter
Air-cooled ceramic source
Precise baseline stability
Optional Accessories
| Diffuse/Specular Reflectance Accessory |
| Horizontal ATR for Liquid and Powder (ZnSe crytal, Specac brand) |
| Horizontal ATR for Liquid and Powder (ZnSe crytal, BFRL brand) |
| Single reflection ATR (Diamond crystal) |
| Single reflection ATR (ZnSe crystal) |
| Single reflection ATR (Ge crystal) |
| Single reflection ATR (ZnSe crystal, BFRL brand) |
| Demoutable Liquid cell(KBr window plates,0.05,0.1,0.2,0.3,0.5,1mm pathlengths) |
| Demoutable Liquid cell(CaF2 window plates,0.05,0.1,0.2,0.3,0.5,1mm pathlengths) |
| Demoutable Liquid cell(ZnSe window plates,0.05,0.1,0.2,0.3,0.5,1mm pathlengths) |
| Sealed Liquid cell (KBr window plates, standard pathlength 0.5mm) |
| Sealed Liquid cell (ZnSe window plates, standard pathlength 0.5mm) |
| Sealed Liquid cell (CaF2 window plates, standard pathlength 0.5mm) |
Applications
FTIR Spectrometer LB-12FTIR is ideal for qualitative and quantitative infrared analysis of solids, liquids, and gases. It is widely used in research labs, pharmaceuticals, chemistry, and material science.
Frequently asked questions For Fourier Transform Infrared Spectrometer
1. What is the primary function of a Labotronics FTIR spectrometer?
A Labotronics FTIR spectrometer is designed for precise molecular analysis by measuring infrared absorption across a wide spectral range.
2. How does a Labotronics FTIR spectrometer ensure accurate and consistent results?
Labotronics FTIR spectrometers use advanced interferometry and high-resolution detection to maintain stable signal quality and repeatable measurements.
3. Can Labotronics FTIR spectrometers be used with various sample types?
Yes, Labotronics FTIR spectrometers support the analysis of solids, liquids, and gases, offering broad compatibility for different laboratory needs.
4. Is the Labotronics FTIR spectrometer easy to operate in routine lab workflows?
Yes, Labotronics FTIR spectrometers feature a compact structure and intuitive controls, enabling smooth operation in both research and quality control labs.
5. Can Labotronics FTIR spectrometers be used repeatedly without frequent recalibration?
Yes, Labotronics FTIR spectrometers are built for long-term reliability and require minimal recalibration, ensuring consistent performance and reduced maintenance.
