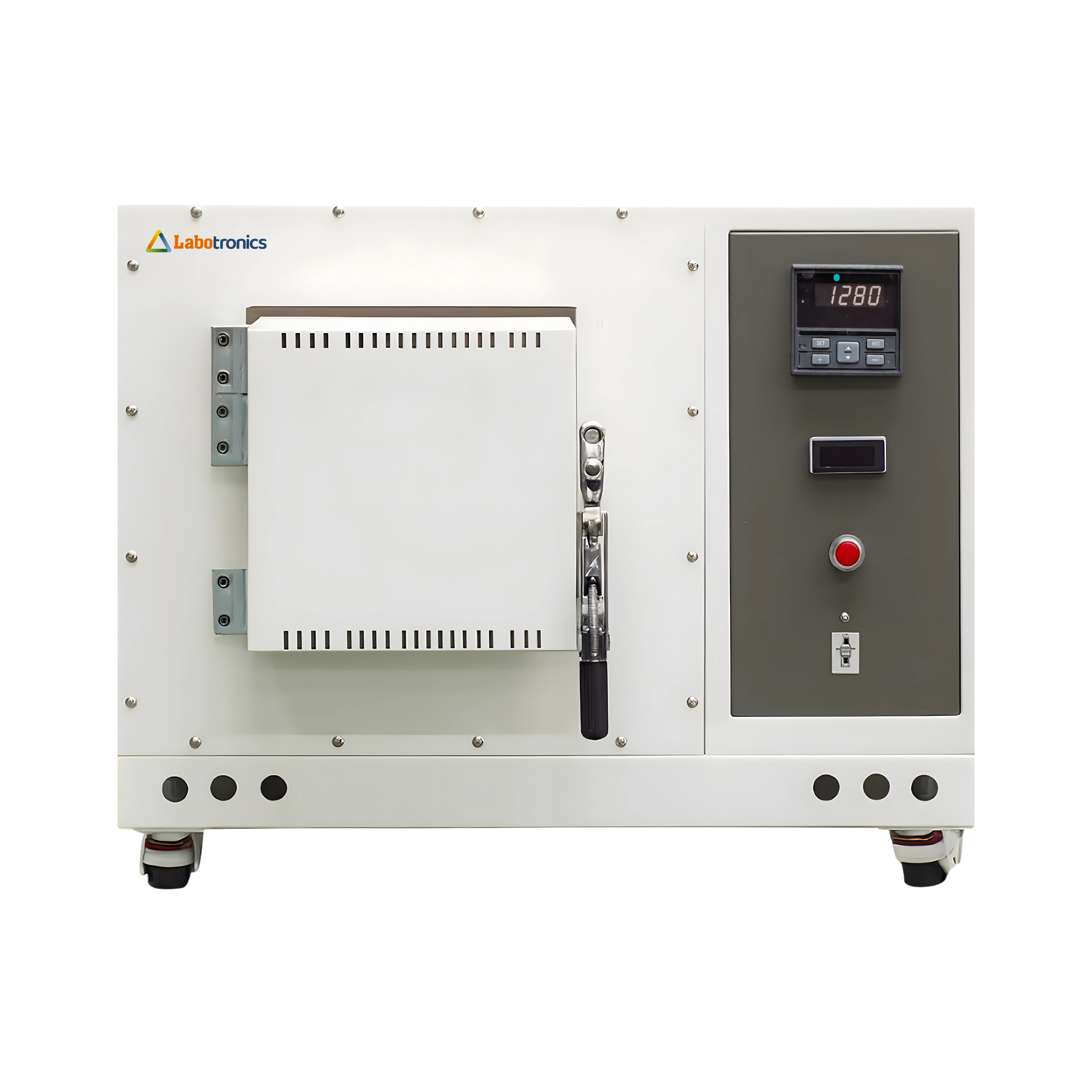

High temperature furnace LB-14HTF

Name: High temperature furnace LB-14HTF
Brand: Labotronics
SKU: LB-14HTF
Rating: 4.5 (510 reviews)

High temperature furnace LB-14HTF is a vacuum-formed ceramic fiber furnace with high performance durability. Double doors prevent exterior heating and provide the safety for the operators. Stable standing with uniquely designed leveling foot. The grounded circuit and NFB prevent a short circuit and over current of electricity and fuse change is not required.

$ 20550

Download Catalog

Specifications

Chamber Capacity	11 L
Internal Dimension (L x D x H) (mm)	200 x 270 x 200
External Dimension (L x D x H) (mm)	980 x 680 x 840
Heater Capacity (kW)	6.6
Temperature range	Max 1650 °C
Working range	500 ̴ 1600 °C
Temperature control	Microprocessor program controller
Thermocouple	B-type
Heating element	Mosi 2 heater
Power	AC 220 V, 50 Hz /60 Hz, 1 Ø

Features

High temperature test up to 1,600 °C
Vacuum-formed ceramic fiber
High performance heat insulation by the molded ceramic block and quick reach to high temperature.
LCD program controller (Optional)
RS-232C (Optional)
Aluminium profile case (Optional)

Applications

Used in industries and biotechnology research laboratories in providing heat treatment, melting of the glass, melting the metal and casting molding.

Get Quote

High temperature furnace LB-10HTF

Chamber Capacity	4.5 L
Internal Dimension (L x D x H) (mm)	150 x 200 x 150
External Dimension (L x D x H) (mm)	820 x 560 x 660
Heater Capacity (kW)	3.3
Temperature range	Max 1450 °C

$ 7787.5

High temperature furnace LB-11HTF

Chamber Capacity	11 L
Internal Dimension (L x D x H) (mm)	200 x 270 x 200
External Dimension (L x D x H) (mm)	870 x 630 x730
Heater Capacity (kW)	7.7
Temperature range	Max 1450 °C

$ 9512.5

High temperature furnace LB-13HTF

Chamber Capacity	4.5 L
Internal Dimension (L x D x H) (mm)	150 x 200 x 150
External Dimension (L x D x H) (mm)	920 x 610 x 770
Heater Capacity (kW)	2.9
Temperature range	Max 1650 °C

$ 16575

High Temperature Furnace LB-20HTF

Capacity	36 L
Maximum temperature	1800°C
Operating temperature	1700°C (≤2h) 1650°C (continuous)
Heating rate	0 to 10°C/min
Heating element	Mosi 2 heating element

$ 20550

High temperature furnace LB-15HTF

Chamber Capacity	22 L
Internal Dimension (L x D x H) (mm)	250 x 350 x 250
External Dimension (L x D x H) (mm)	1050 x 750 x 910
Heater Capacity (kW)	9.5
Temperature range	Max 1650 °C

$ 31025

High temperature furnace LB-12HTF

Chamber Capacity	22 L
Internal Dimension (L x D x H) (mm)	250 x 350 x 250
External Dimension (L x D x H) (mm)	920 x 710 x 850
Heater Capacity (kW)	9.6
Temperature range	Max 1450 °C
